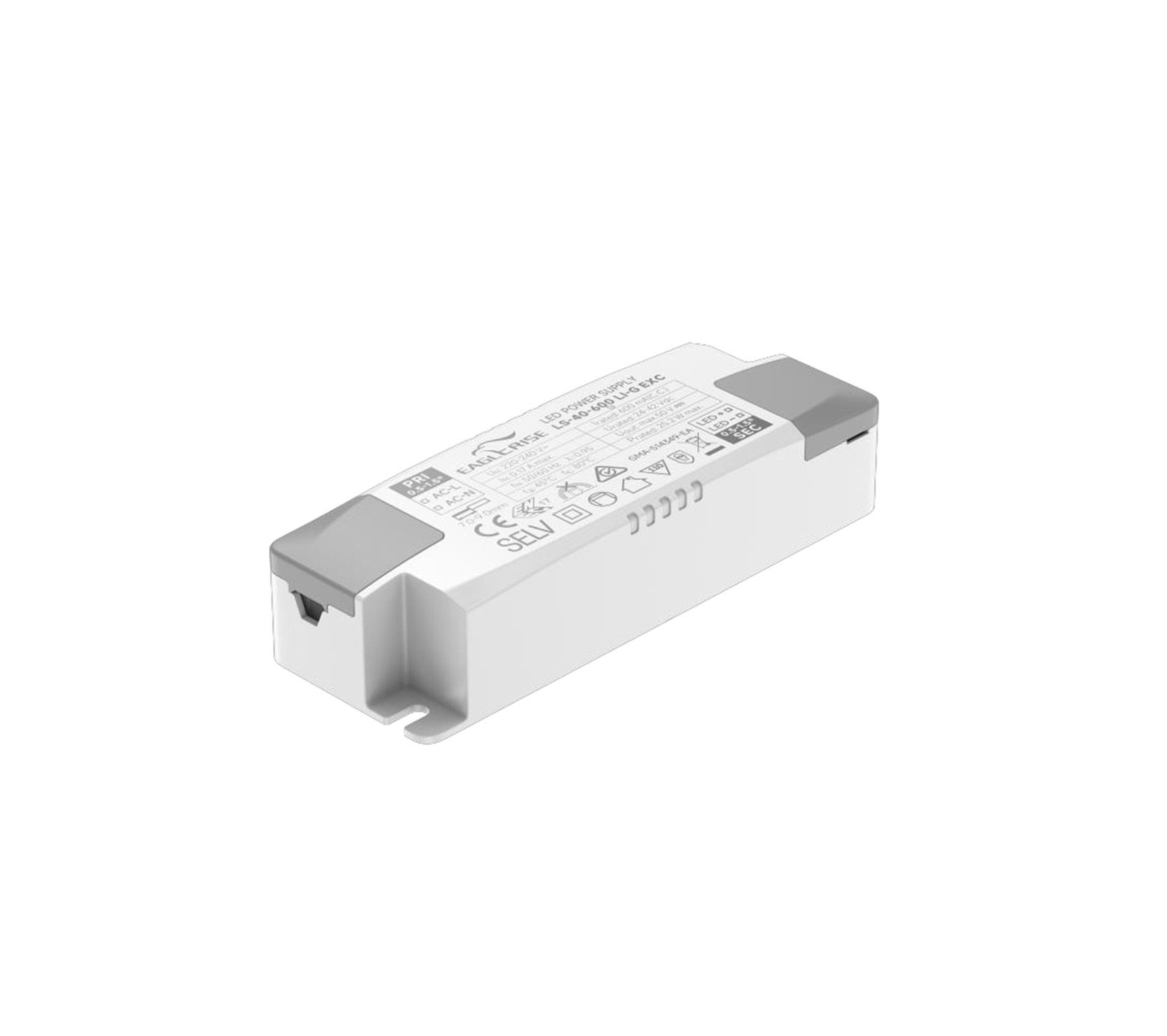

Product Image

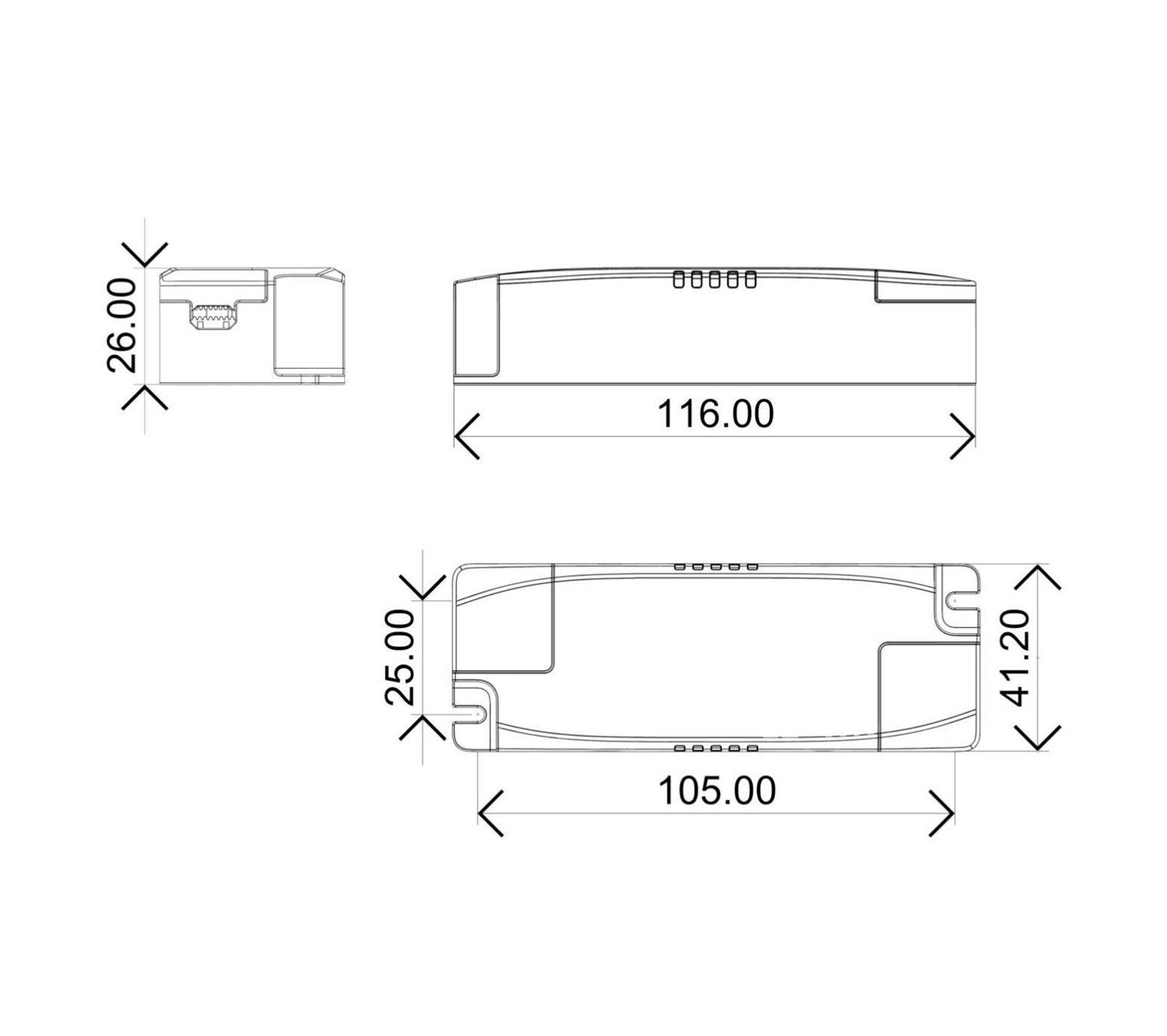

2D Line Drawing
Product Image
2D Line Drawing
40W | 600-1050mA

LS-40-XXX LI-G EXC

Product Description:

· Class II，SELV，Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.95

· Efficiency：89%

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
LS-40-600 LI-G EXC40W220-240VAC600mA24-42V87%0.95116*41*26mm
LS-40-650 LI-G EXC40W220-240VAC650mA24-42V87%0.95116*41*26mm
LS-40-700 LI-G EXC40W220-240VAC700mA24-42V87%0.95116*41*26mm
LS-40-750 LI-G EXC40W220-240VAC750mA24-42V87%0.95116*41*26mm
LS-40-800 LI-G EXC40W220-240VAC800mA24-42V87%0.95116*41*26mm
LS-40-850 LI-G EXC40W220-240VAC850mA24-42V87%0.95116*41*26mm
LS-40-900 LI-G EXC40W220-240VAC900mA24-42V89%0.95116*41*26mm
LS-40-950 LI-G EXC40W220-240VAC950mA24-42V89%0.95116*41*26mm
LS-40-1000 LI-G EXC40W220-240VAC1000mA24-40V89%0.95116*41*26mm
LS-40-1050 LI-G EXC40W220-240VAC1050mA24-38.5V89%0.95116*41*26mm




LS-40-XXX LI-G EXC spec REV A
