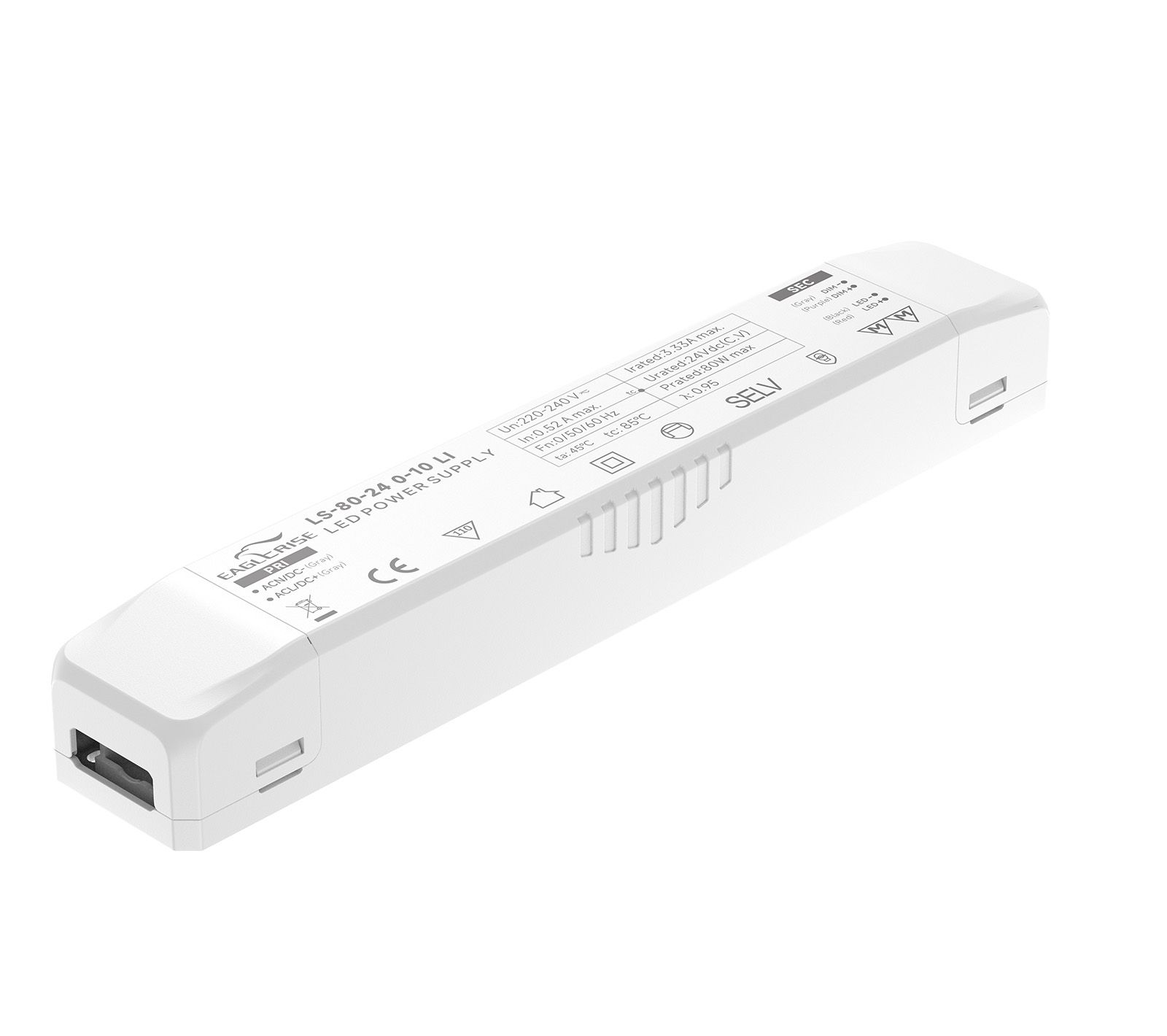

Product Image

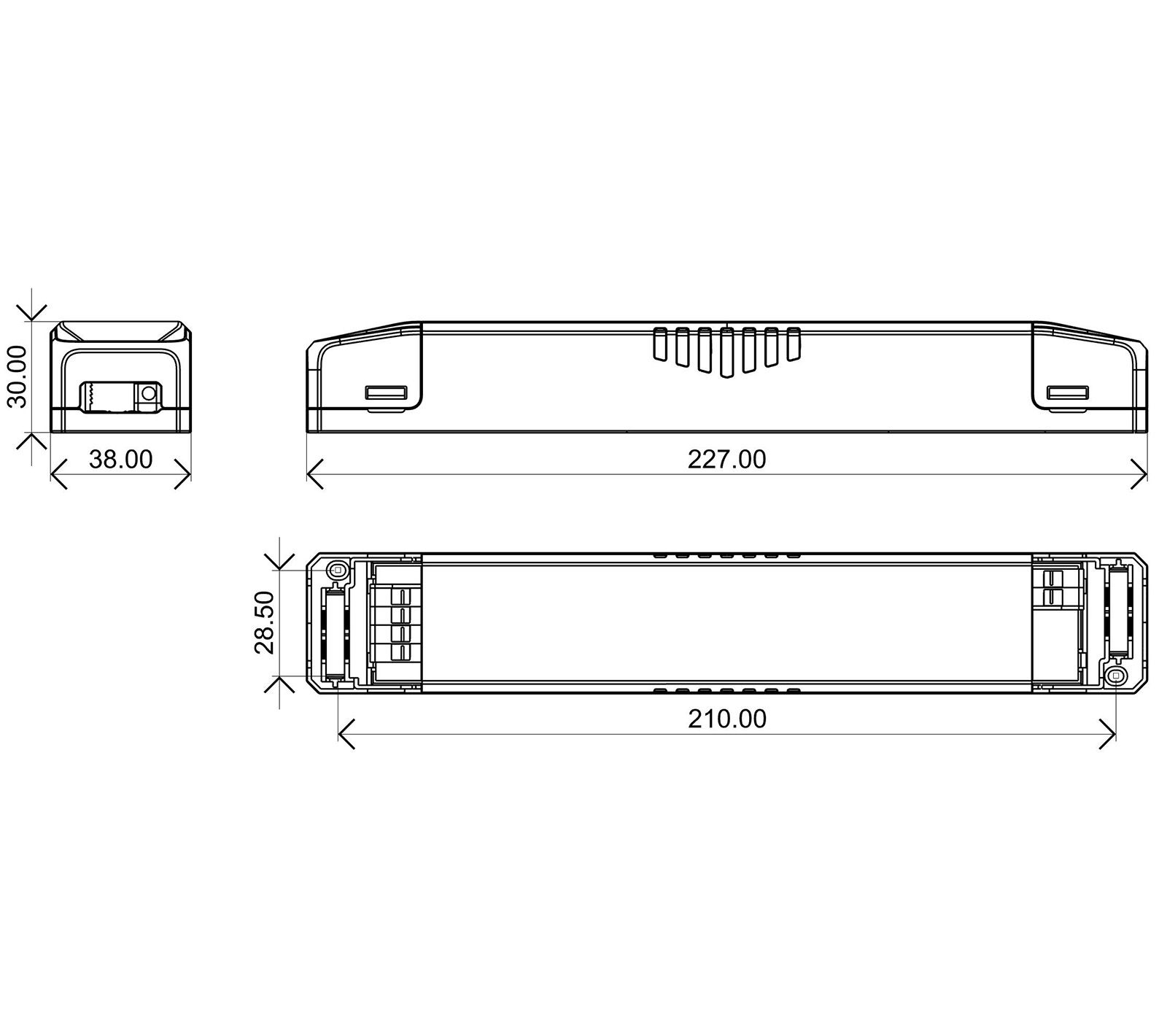

2D Line Drawing
Product Image
2D Line Drawing
80W | 24V

LS-80-24 0-10 LI

Product Description:

· Class II，SELV，Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OTP

· Power Factor：≥0.95（Typ.)

· Efficiency：≥89%（Typ.)

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-80-24 0-10 LI80W220-240VAC0-3.33A24V89%0.95227*38*30mm
LS-80-24 0-10 LI spec REV B
