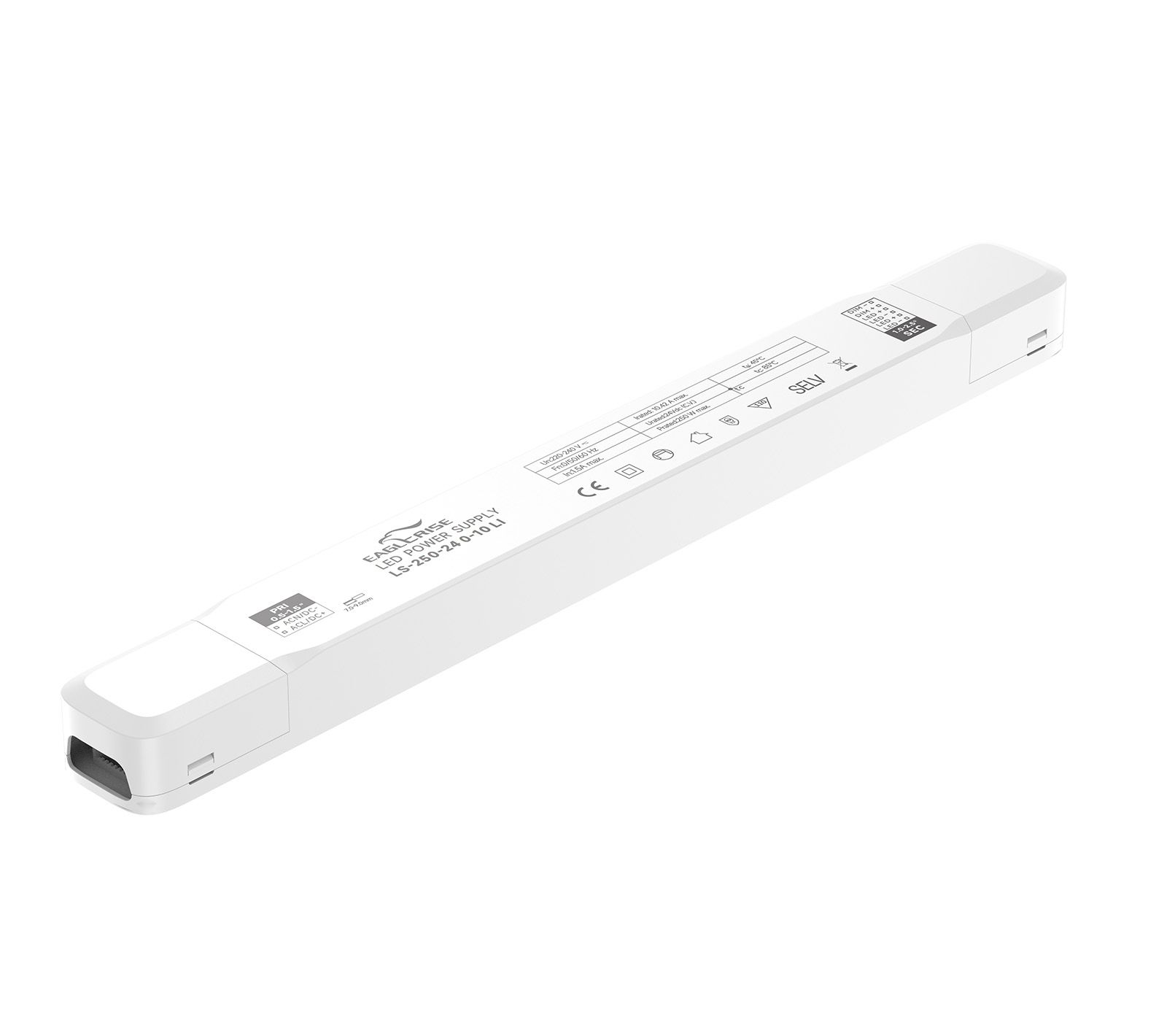

Product Image

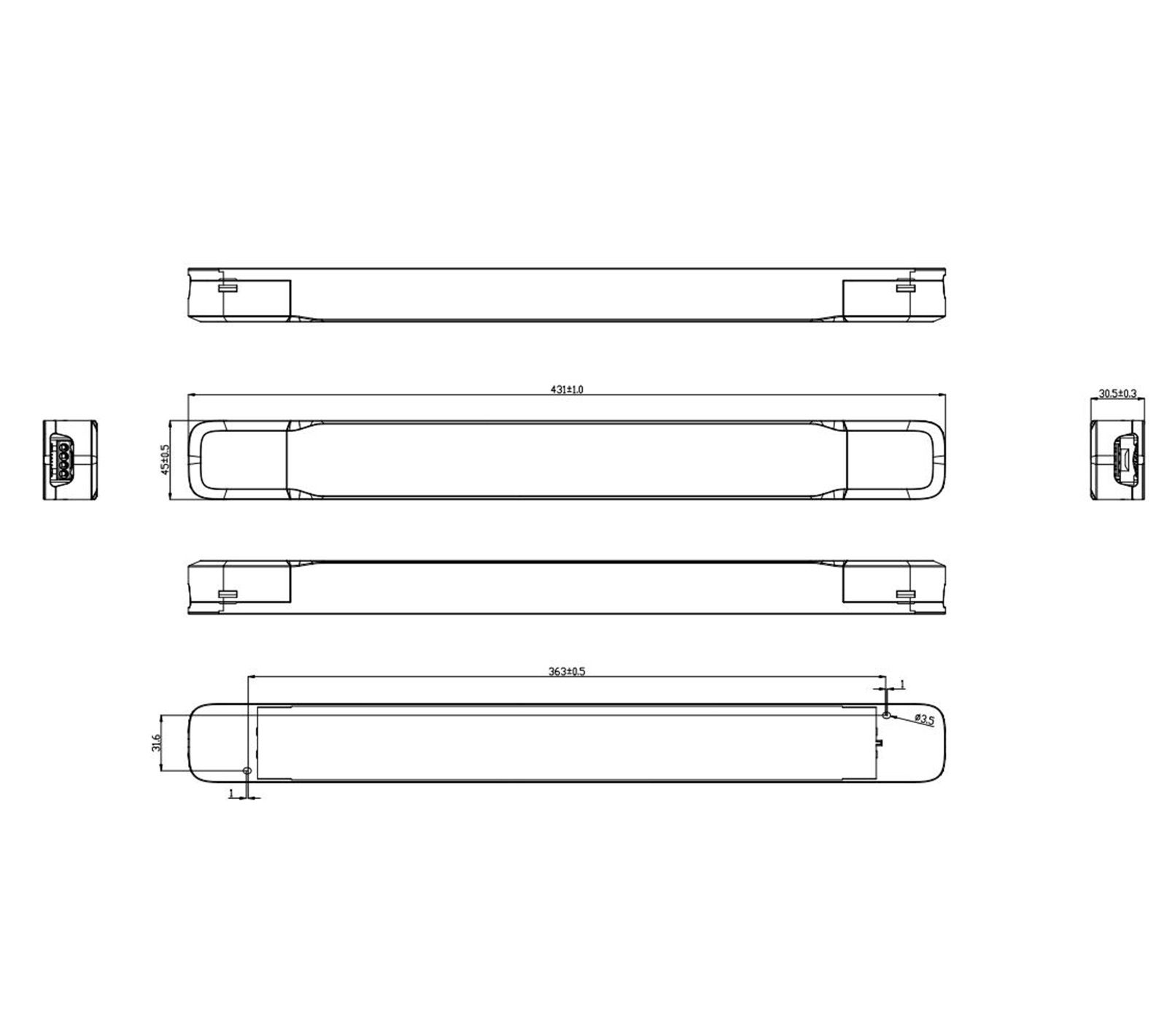

2D Line Drawing
Product Image
2D Line Drawing
250W | 24V

LS-250-24 0-10 LI

Product Description:

· Class II，SELV，Independent
· Input Voltage 220-240VAC
· Protections: SCP/OLP/OTP
· Power Factor: 0.95(Typ.)
· Efficiency: ≥91%(Typ.)
· 5 years warranty
· Support 0-10V,RX,PWM Dimming

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-250-24 0-10 LI250W220-240VAC0-10.42A24V91%0.95431*45*30.5mm




LS-250-24 0-10 LI spec REV B
