Home / Products / Compact Drivers / Intelligent / WIRELESS / LS-8-XXX Blue SI-MJ

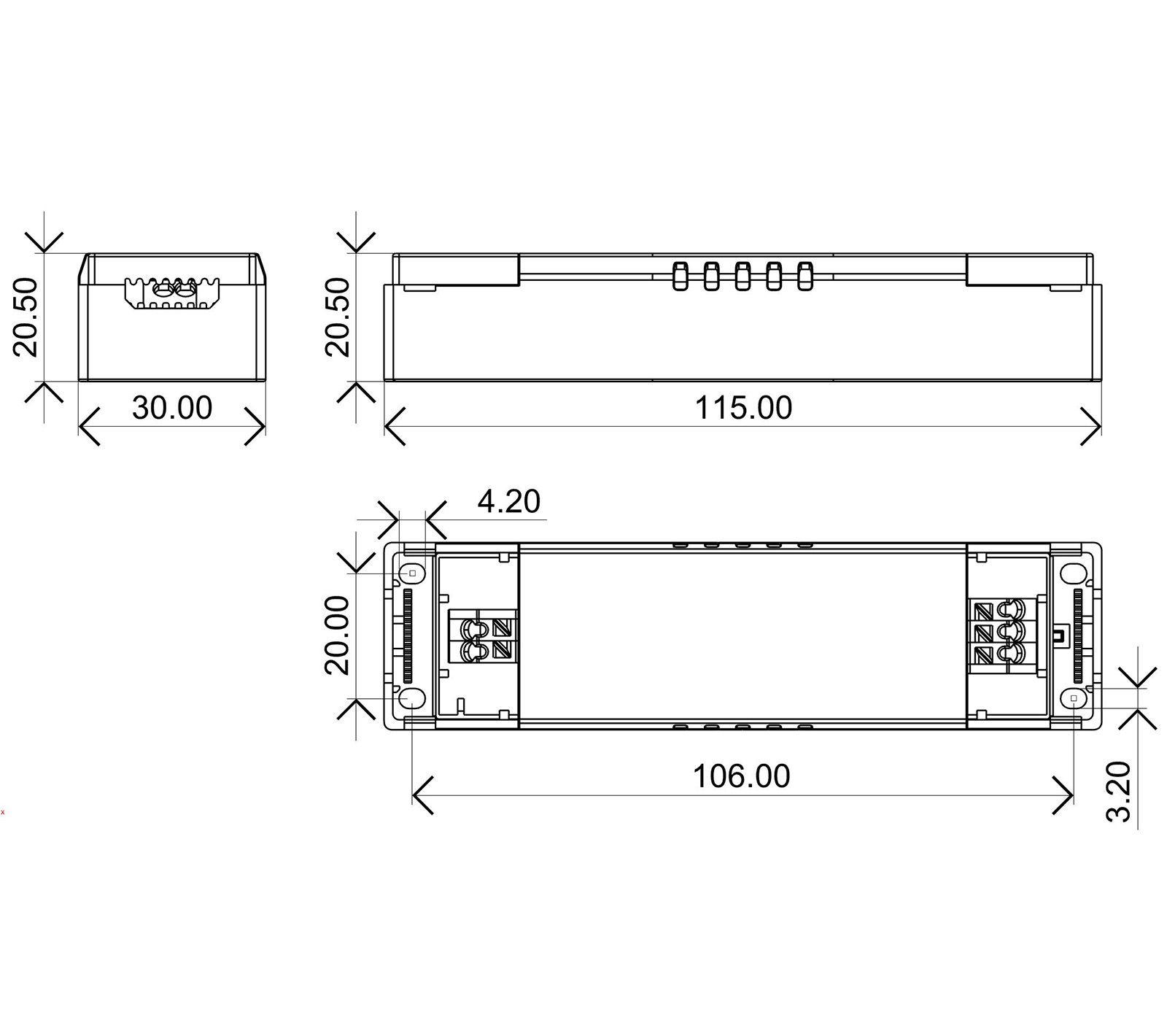

2D Line Drawing

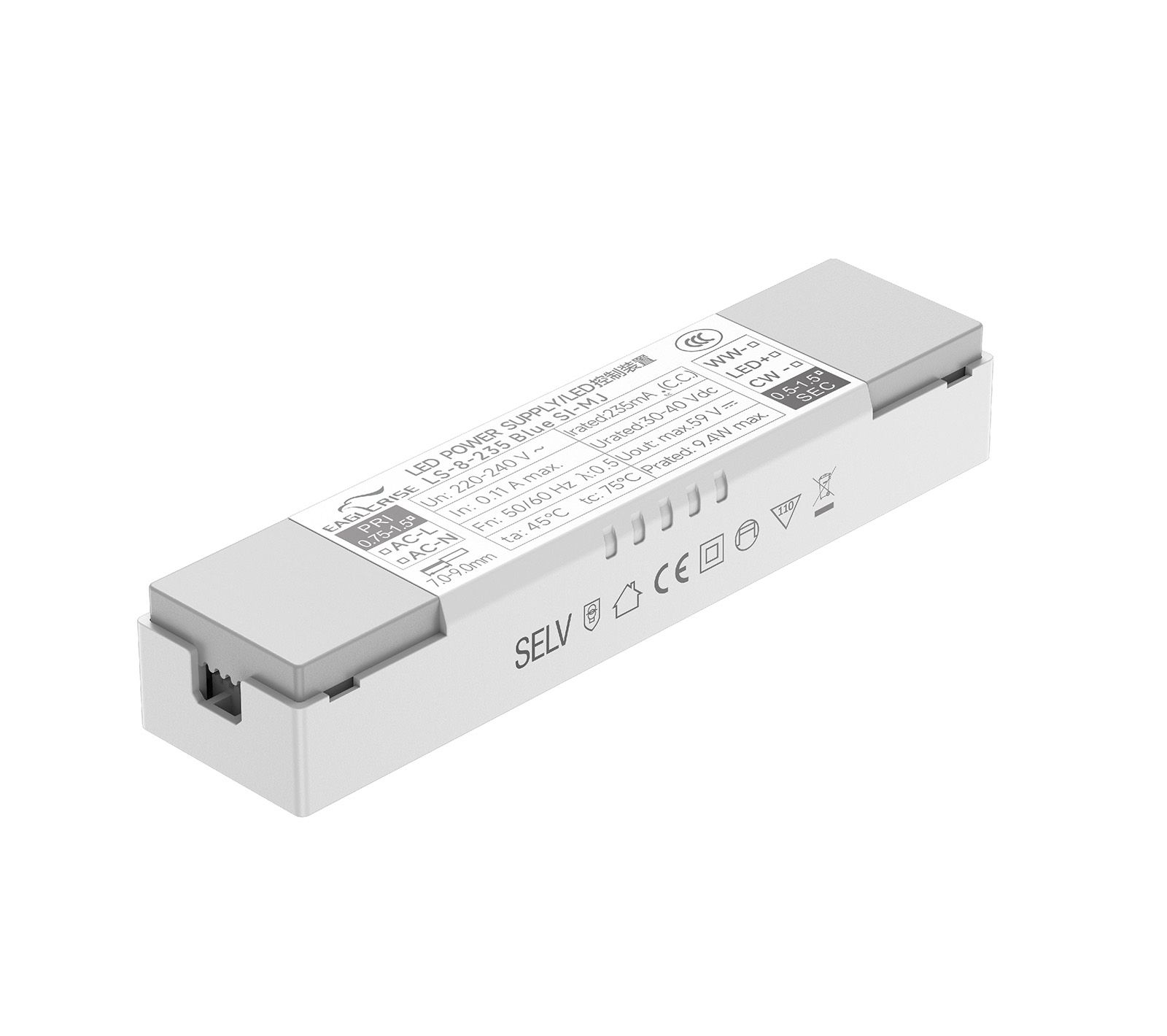

Product Image

2D Line Drawing

8W | 100-235mA

LS-8-XXX Blue SI-MJ

Product Description:

· For luminaries of protection Class II， SELV，independent

· Input Voltage： 220-240VAC

· Protections：OLP/OVP/OTP

· Power Factor：＞0.5

· Efficiency：80%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
LS-8-100 Blue LI-MJ	8W	220-240VAC	100mA	30-40VDC	75%	0.95	1153020.5mm
LS-8-120 Blue SI-MJ	8W	220-240VAC	120mA	30-40VDC	75%	0.5	1153020.5mm
LS-8-160 Blue SI-MJ	8W	220-240VAC	160mA	30-40VDC	80%	0.5	1153020.5mm
LS-8-180 Blue SI-MJ	8W	220-240VAC	180mA	30-40VDC	80%	0.5	1153020.5mm
LS-8-200 Blue SI-MJ	8W	220-240VAC	200mA	30-40VDC	80%	0.5	1153020.5mm
LS-8-235 Blue SI-MJ	8W	220-240VAC	235mA	30-40VDC	80%	0.5	1153020.5mm

LS-8-XXX Blue SI-MJ spec REV A
