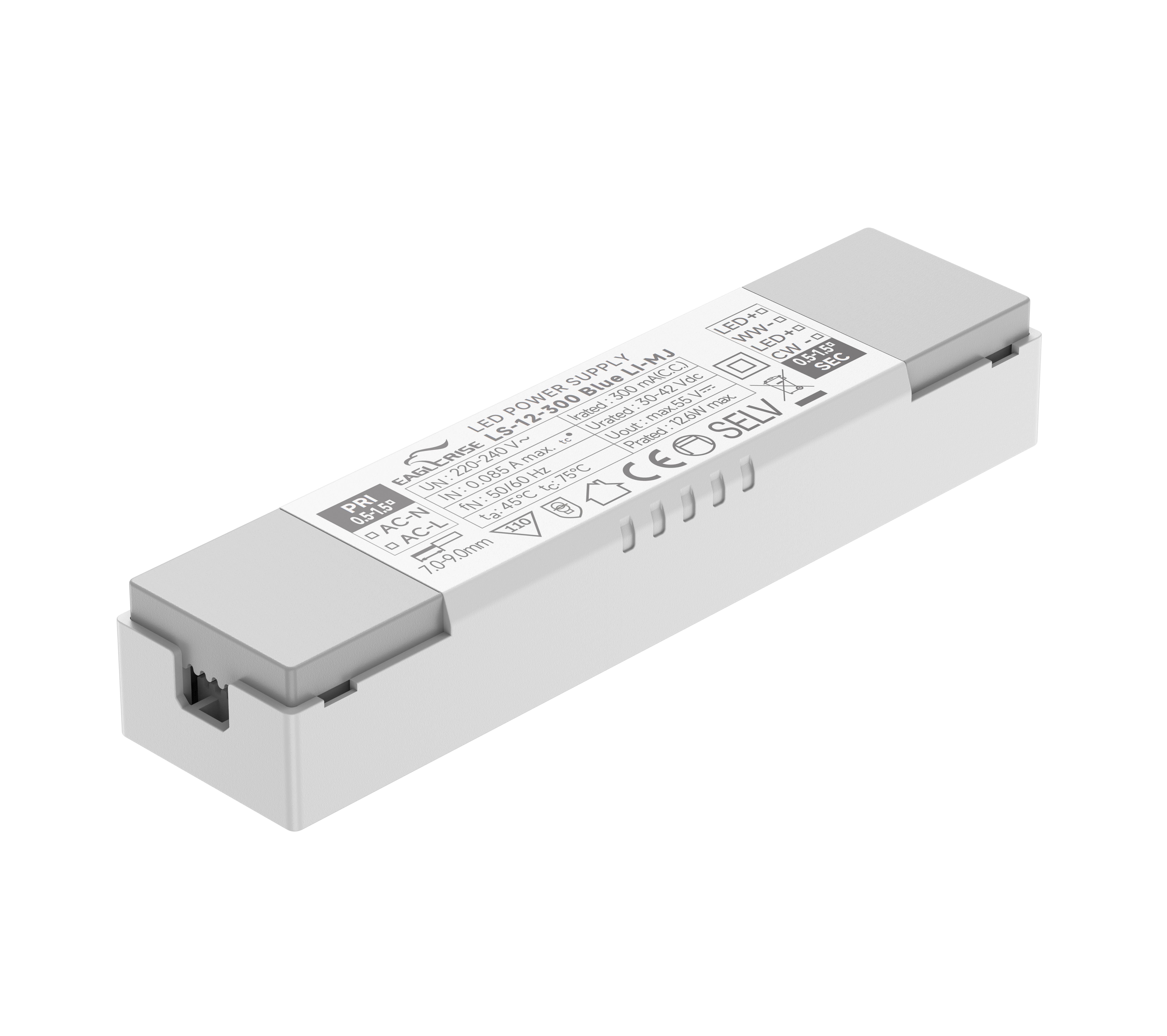

LS-12-XXX Blue LI-MJ

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Support voice control

· Works with Xiaomi Home

· Dimming range 1% to 100%

· Efficiency>85% ; Power Factor＞0.95

· 5 years warranty

· Ta, Tc: 50°C/ 75°C

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Technical Specifications

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
LS-12-250 Blue LI-MJ	12W	220-240VAC	250mA	30-42VDC	85%	0.95	1263020.5mm
LS-12-300 Blue LI-MJ	12W	220-240VAC	300mA	30-42VDC	85%	0.95	1263020.5mm

LS-12-XXX Blue LI-MJ spec REV A

Download All Files

12W Bluetooth Dimming power supply is a 12W compact LED drivers that operates from198-264Vac input with 250-300mA output current and a forward voltage range from 30 to 42Vdc. With it’s compact dimensions from 126 x 30 x 20.5 mm it is easy to integrate in LED panel products. To ensure trouble-free operation , protection is provided against output short circuit and over Load.

Wiring diagram

Curve for LS-12-XXX Blue LI-MJ，Io=300mA
