Home / Products / Compact Drivers / Intelligent / WIRELESS / FLS-42-1050 Blue LD-CSB ADV

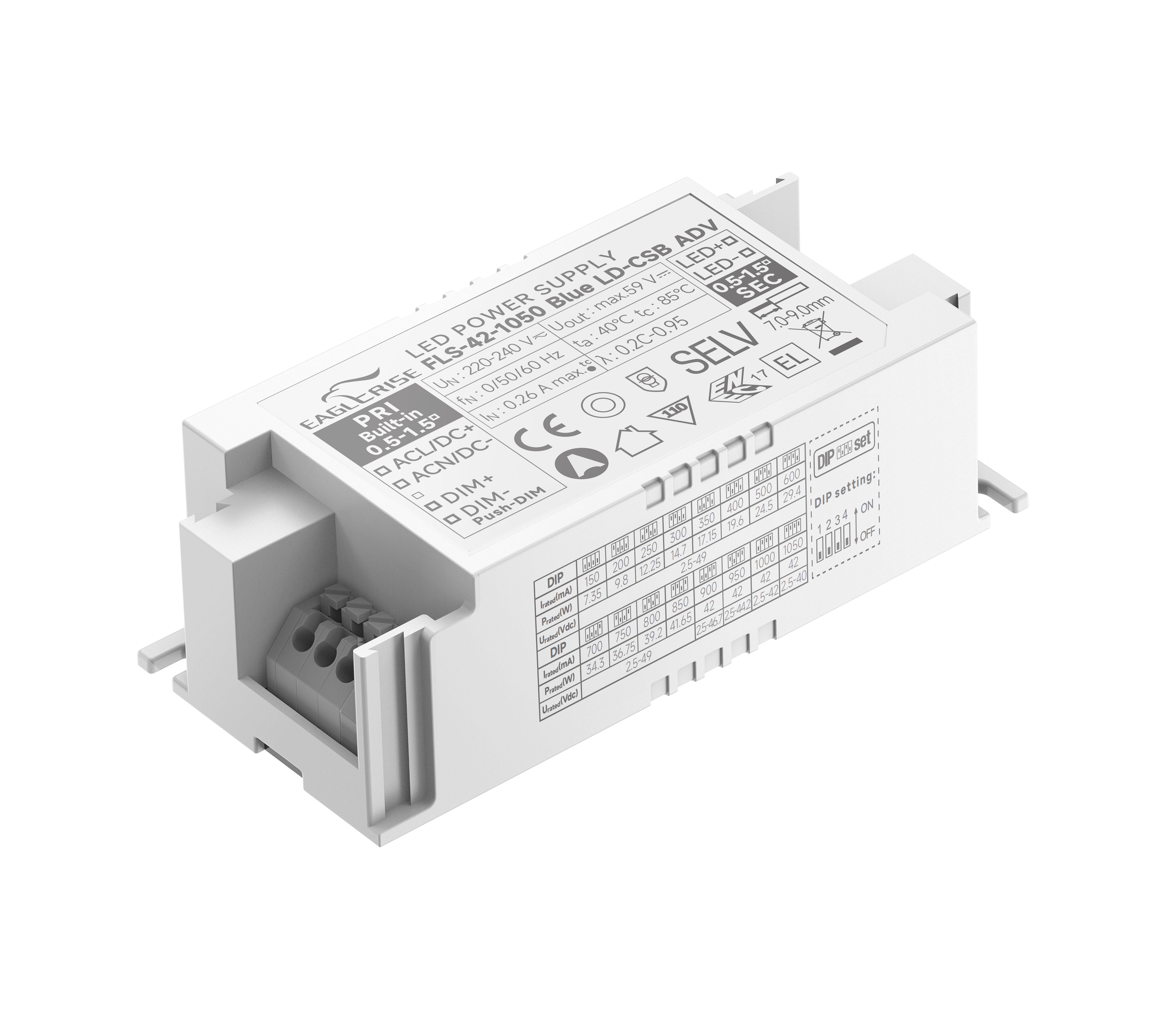

Product Image

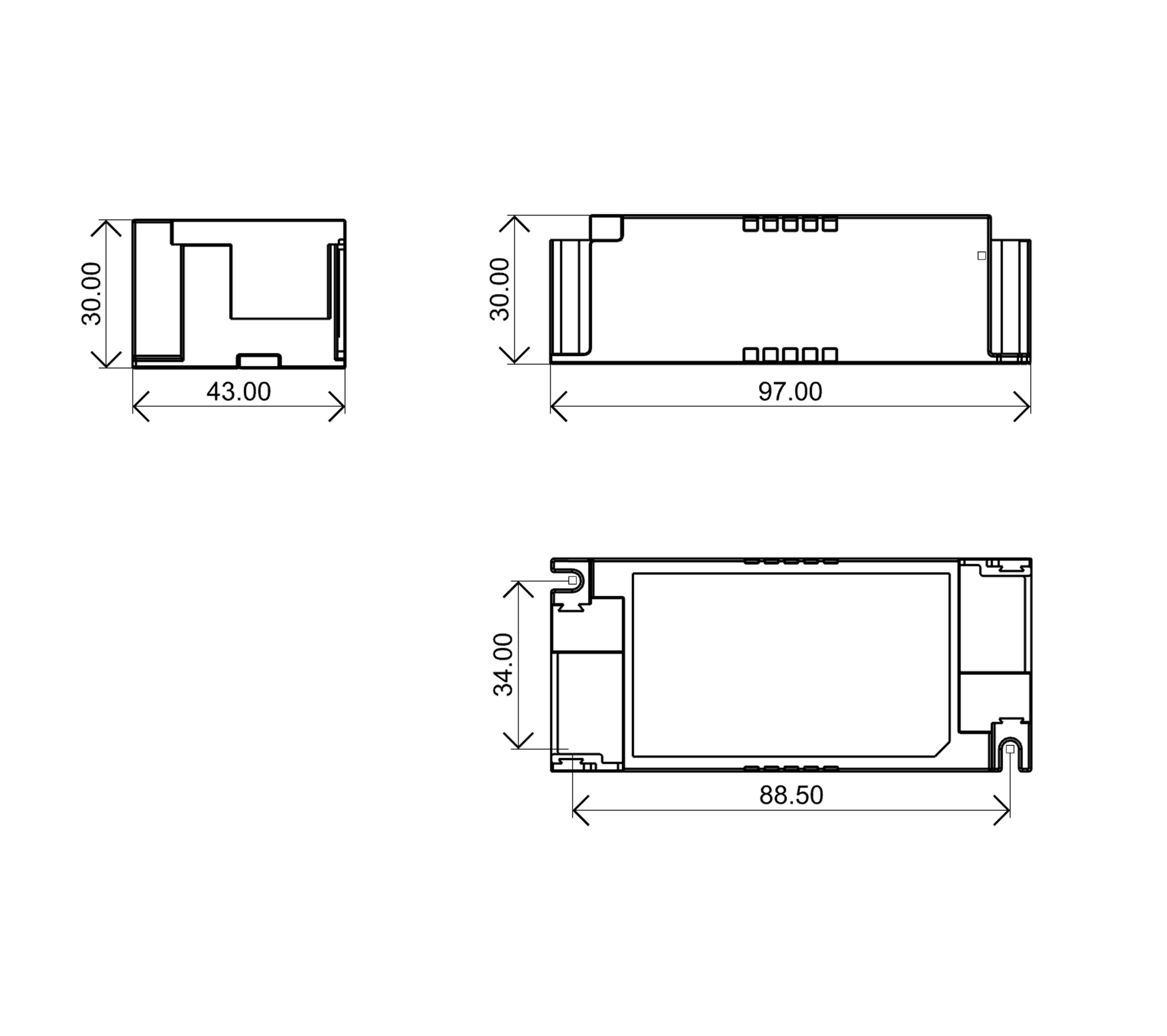

2D Line Drawing
Product Image
2D Line Drawing
42W | 150-1050mA

FLS-42-1050 Blue LD-CSB ADV

Product Description:

· For luminaries of protection Class II， SELV，built-in/independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95(Typ.)

· Efficiency：89%(Typ.)

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-42-1050 Blue LD-CSB ADV42W220-240VAC150-1050mA2.5-49VDC89%0.9597*43*30mm



FLS-42-1050 Blue LD-CSB ADV spec REV C
