Home / Products / Compact Drivers / ON/OFF / Wide Voltage / LX-8-XXX LI EXC

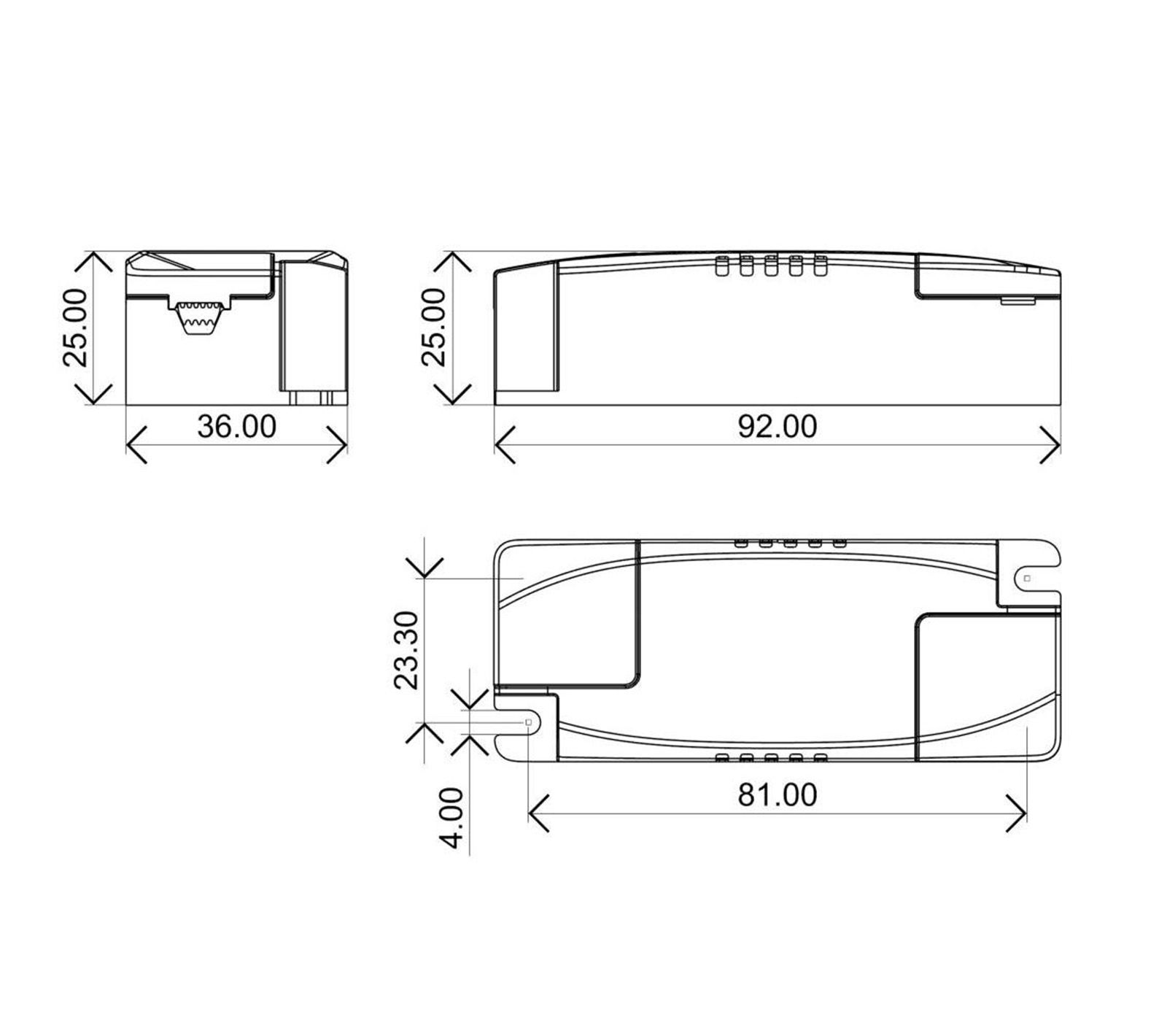

2D Line Drawing

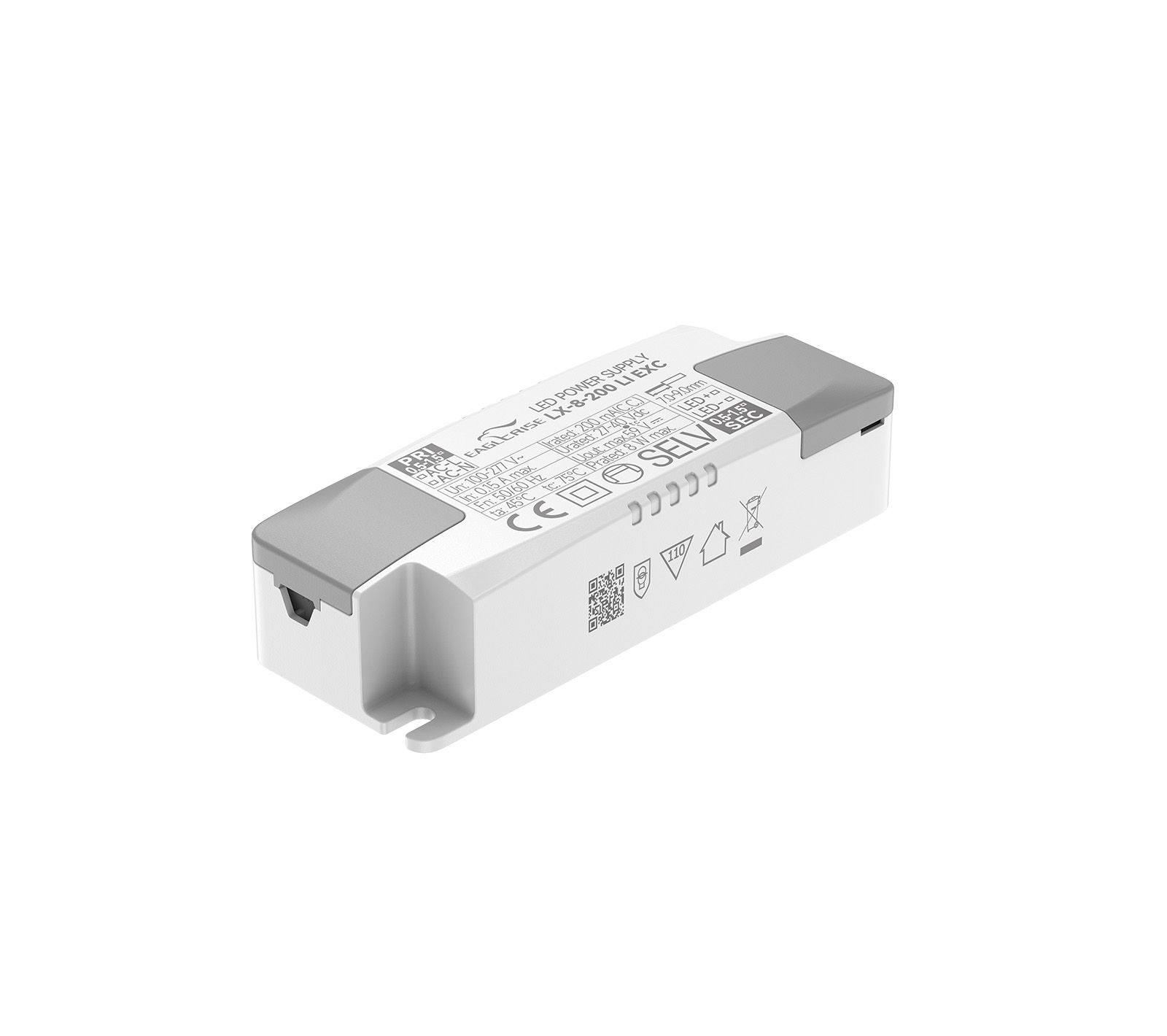

Product Image

2D Line Drawing

8W | 70-220mA

LX-8-XXX LI EXC

Product Description:

· For luminaries of protection Class II, SELV, Independent

· Input Voltage: 100-277VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：59-76%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
LX-8-70 LI EXC	8W	100-277VAC	70mA	27-42V	59%	0.9	923625mm
LX-8-100 LI EXC	8W	100-277VAC	100mA	27-42V	66%	0.9	923625mm
LX-8-120 LI EXC	8W	100-277VAC	120mA	27-42V	71%	0.9	923625mm
LX-8-150 LI EXC	8W	100-277VAC	150mA	27-42V	71%	0.9	923625mm
LX-8-160 LI EXC	8W	100-277VAC	160mA	27-42V	71%	0.9	923625mm
LX-8-180 LI EXC	8W	100-277VAC	180mA	27-42V	76%	0.9	923625mm
LX-8-200 LI EXC	8W	100-277VAC	200mA	27-40V	76%	0.9	923625mm
LX-8-220 LI EXC	8W	100-277VAC	220mA	27-40V	76%	0.95	923625mm

LX-8-XXX LI EXC spec REV C
