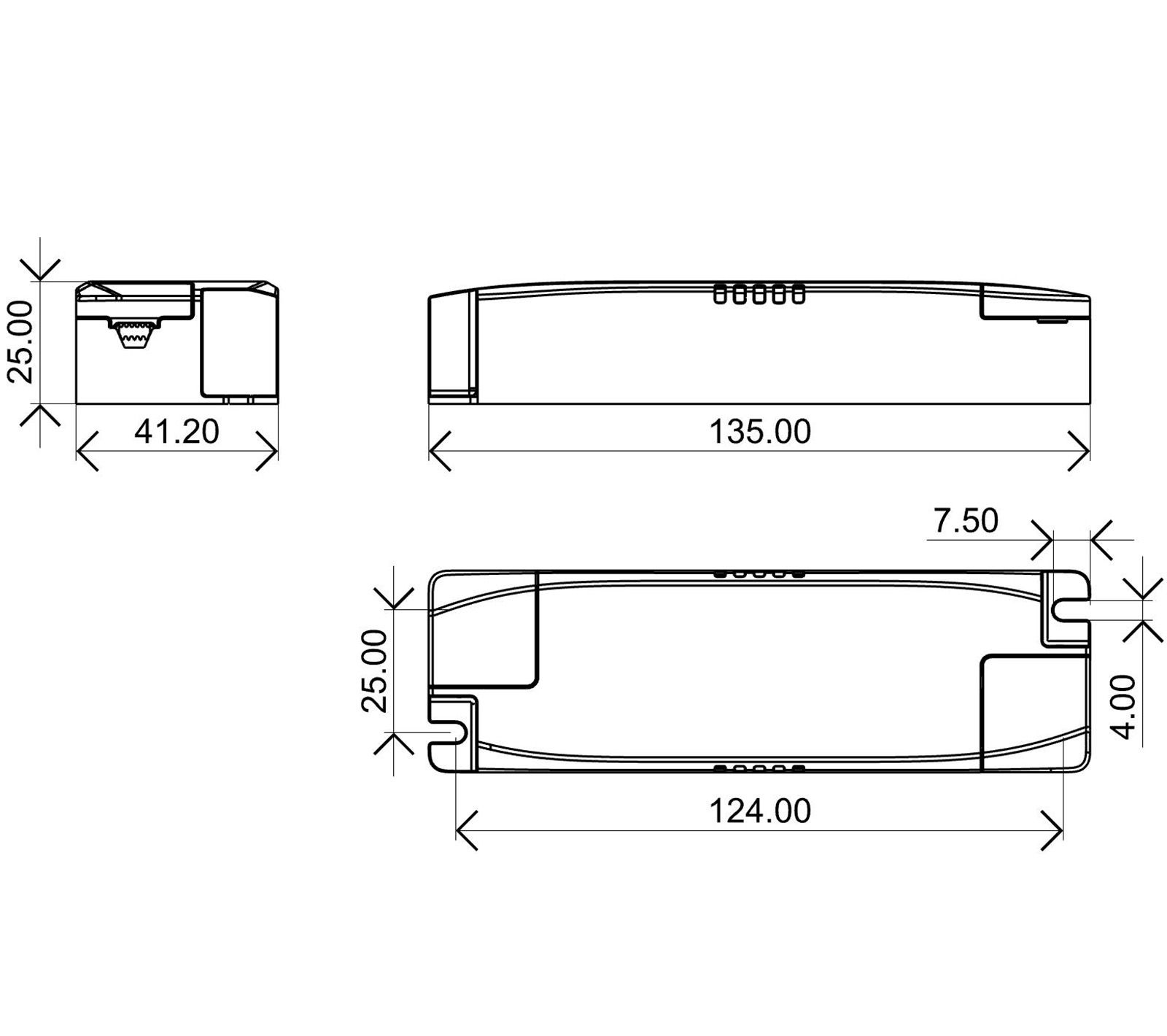

2D Line Drawing

Product Image

2D Line Drawing

40W | 600-1050mA

LX-40-XXX LI EXC

Product Description:

· Class II，SELV，Independent

· Input Voltage 100-277VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor :≥0.9@full load

· Efficiency：84%@100VAC， 89%@277VAC

· 5 years warranty

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
LX-40-600 LI EXC	40W	100-277VAC	600mA	24-42V	89%	0.9	13541.225mm
LX-40-650 LI EXC	40W	100-277VAC	650mA	24-42V	89%	0.9	13541.225mm
LX-40-700 LI EXC	40W	100-277VAC	700mA	24-42V	89%	0.9	13541.225mm
LX-40-750 LI EXC	40W	100-277VAC	750mA	24-42V	89%	0.9	13541.225mm
LX-40-800 LI EXC	40W	100-277VAC	800mA	24-42V	89%	0.9	13541.225mm
LX-40-850 LI EXC	40W	100-277VAC	850mA	24-42V	89%	0.9	13541.225mm
LX-40-900 LI EXC	40W	100-277VAC	900mA	24-42V	89%	0.9	13541.225mm
LX-40-950 LI EXC	40W	100-277VAC	950mA	24-42V	89%	0.9	13541.225mm
LX-40-1000 LI EXC	40W	100-277VAC	1000mA	24-40V	89%	0.9	13541.225mm
LX-40-1050 LI EXC	40W	100-277VAC	1050mA	24-38.5V	89%	0.9	13541.225mm

LX-40-XXX LI EXC spec REV B
