Home / Products / Compact Drivers / ON/OFF / Wide Voltage / LX-21-XXX LI EXC

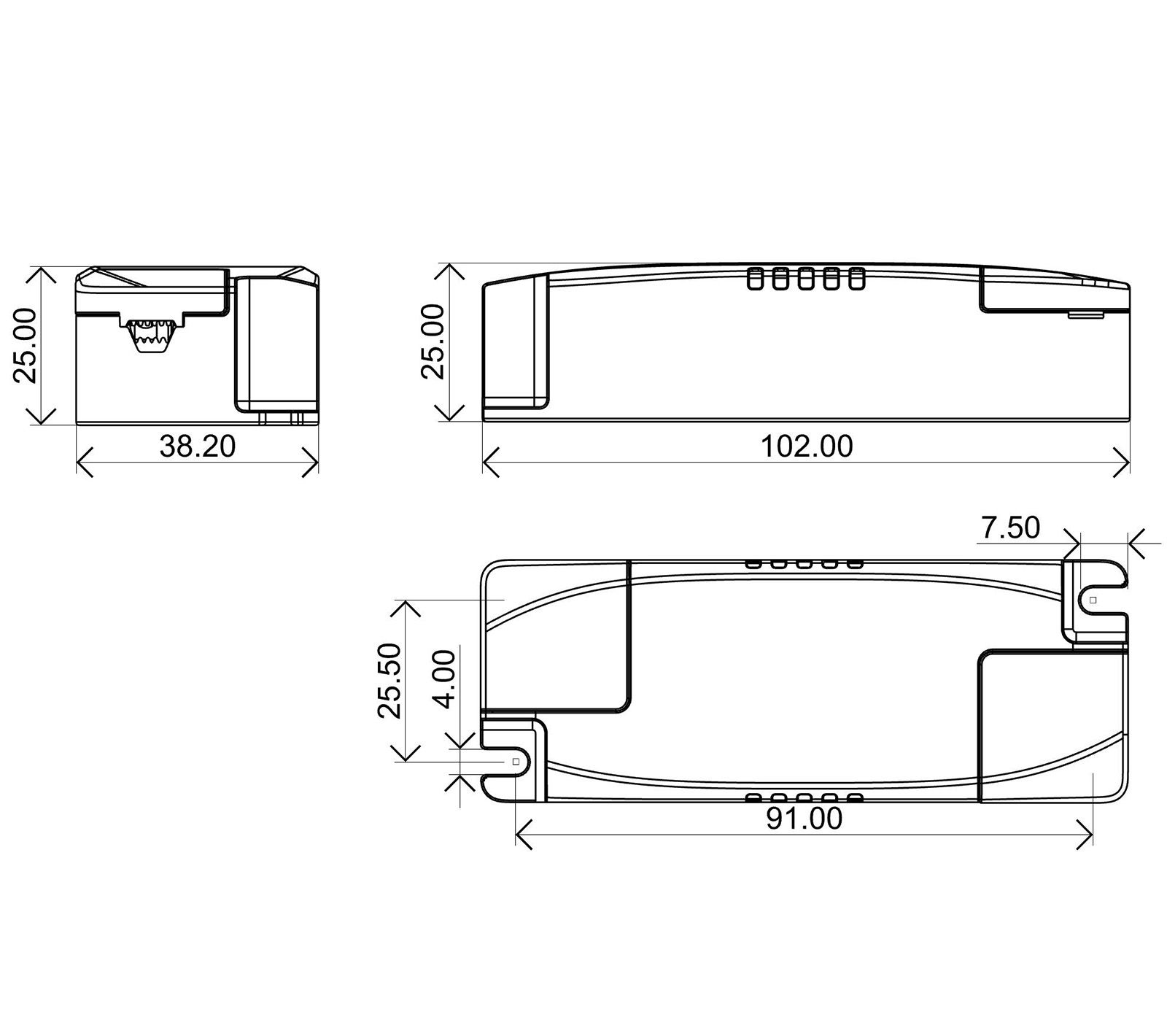

2D Line Drawing

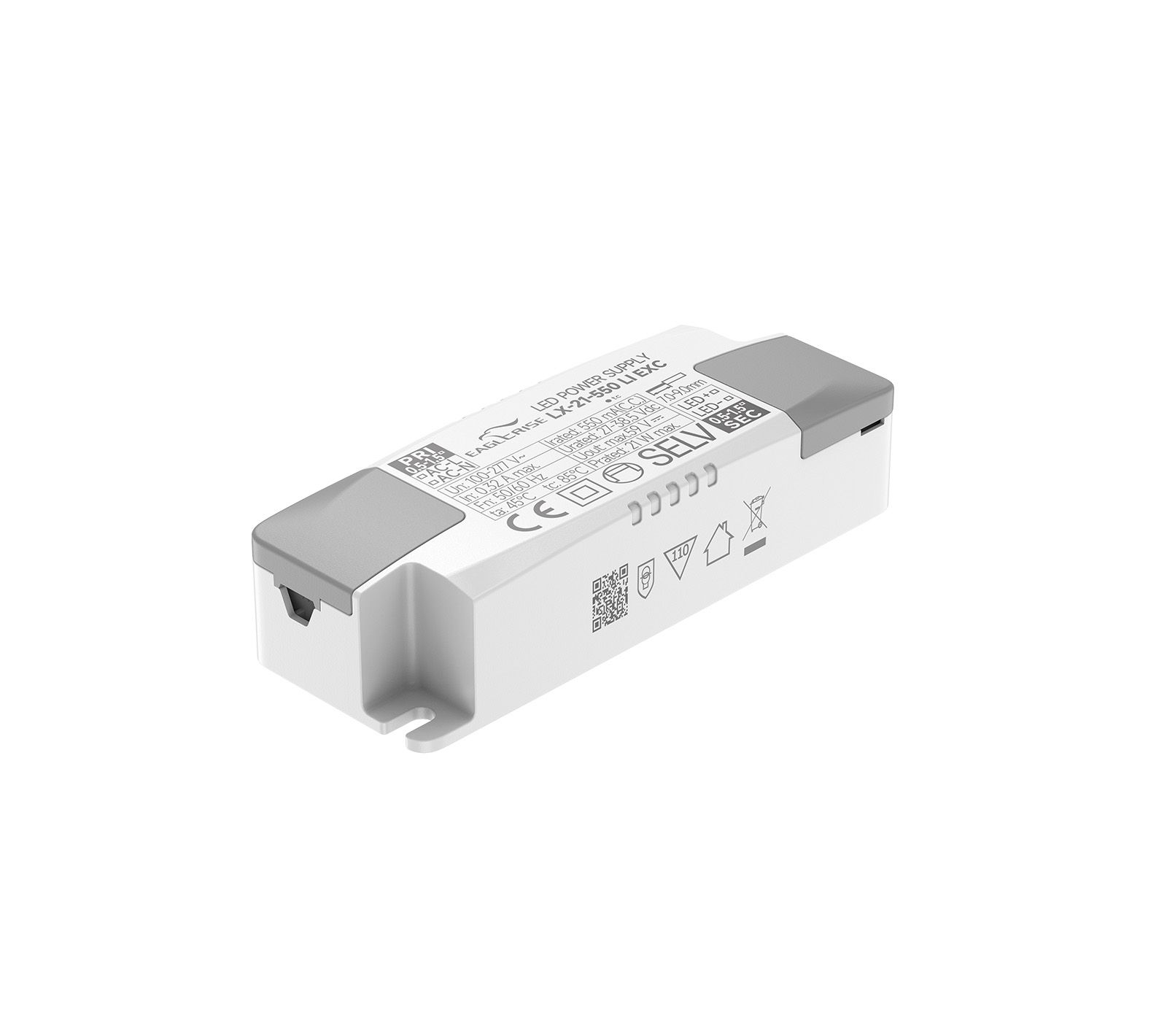

Product Image

2D Line Drawing

21W | 350-550mA

LX-21-XXX LI EXC

Product Description:

· For luminaries of protection Class II, SELV, Independent
· Input Voltage: 100-277VAC
· Protections：SCP/OLP/OVP/OTP
· Power Factor：≥0.9
· Efficiency：83-85%
· 5 years warranty
· IP20

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
LX-21-350 LI EXC	21W	100-277VAC	350mA	27-42V	85%	0.9	10238.225mm
LX-21-400 LI EXC	21W	100-277VAC	400mA	27-42V	85%	0.9	10238.225mm
LX-21-450 LI EXC	21W	100-277VAC	450mA	27-42V	85%	0.9	10238.225mm
LX-21-500 LI EXC	21W	100-277VAC	500mA	27-42V	85%	0.9	10238.225mm
LX-21-550 LI EXC	21W	100-277VAC	550mA	27-42V	85%	0.9	10238.225mm

LX-21-XXX LI EXC spec REV C

Related Products

LX-8-XXX LI EXC

8W | 70-220mA

LX-8-XXX LI EXC

LX-40-XXX LI EXC

40W | 600-1050mA

LX-40-XXX LI EXC
