Home / Products / Compact Drivers / ON/OFF / Wide Voltage / LX-12-XXX LI EXC

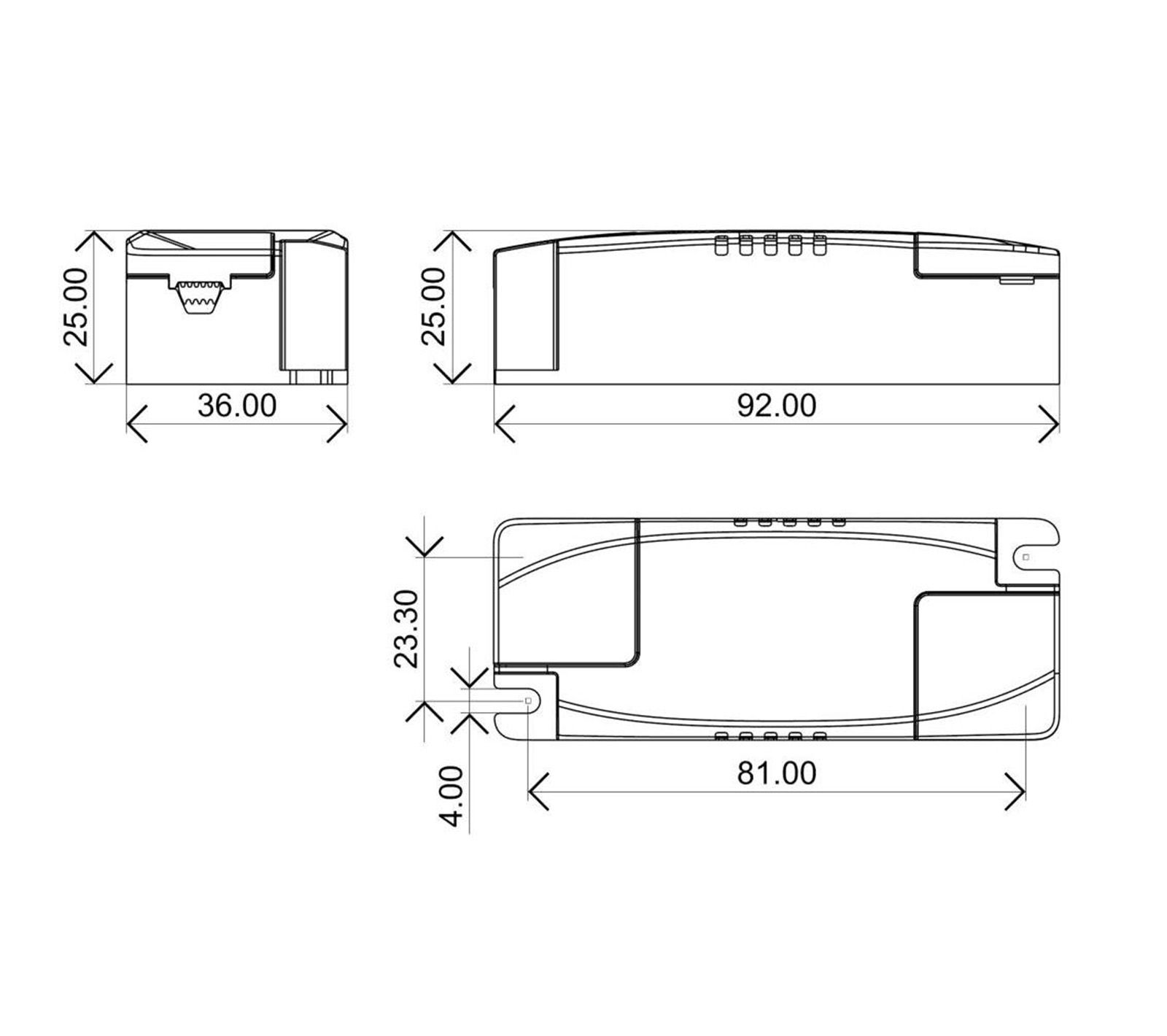

2D Line Drawing

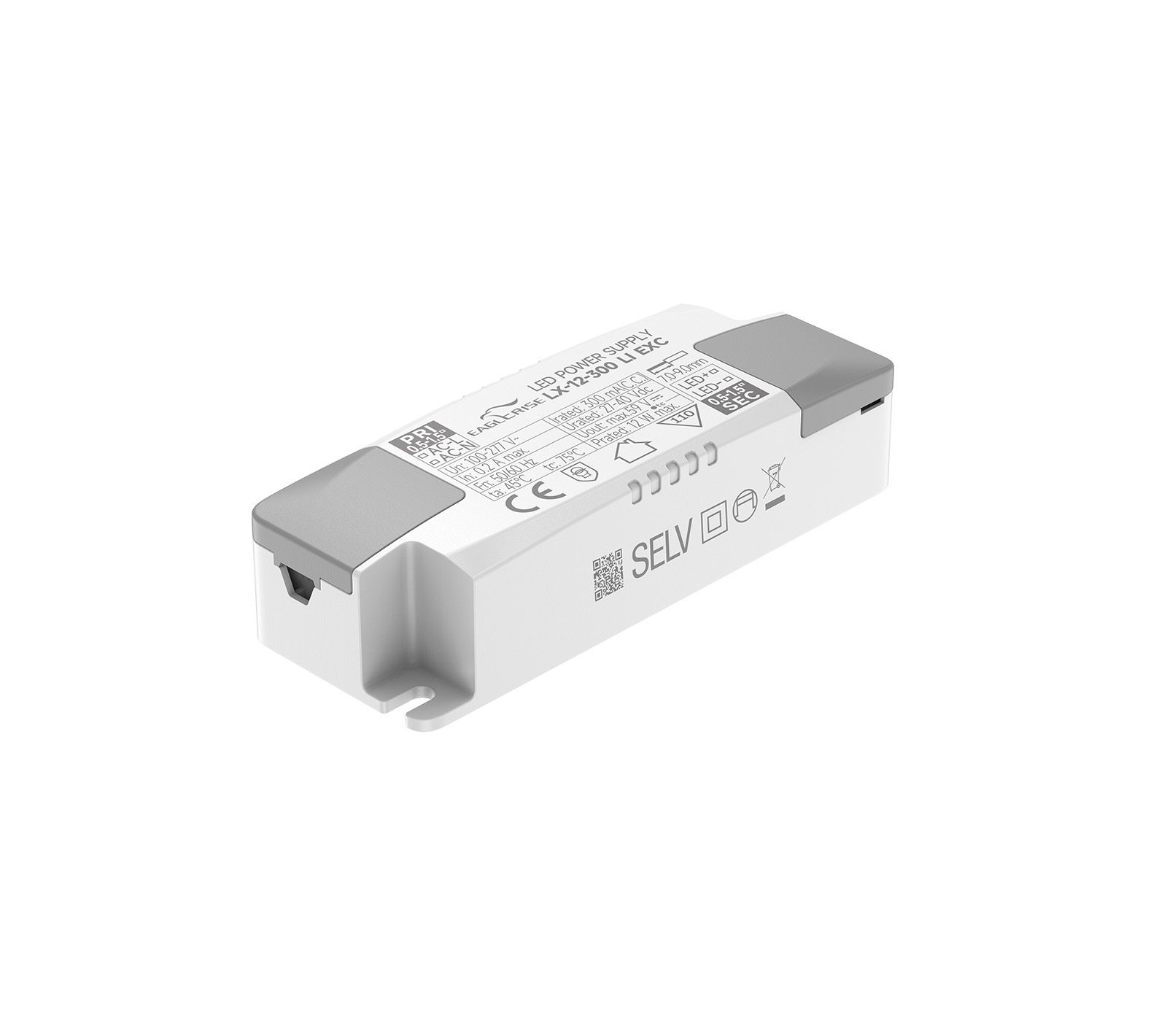

Product Image

2D Line Drawing

12W | 250-300mA

LX-12-XXX LI EXC

Product Description:

· For luminaries of protection Class II, SELV, Independent
· Input Voltage: 100-277VAC
· Protections：SCP/OLP/OVP/OTP
· Power Factor：0.9C
· Efficiency：≥78%
· 5 years warranty
· IP20

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
LX-12-250 LI EXC	12W	100-277VAC	250mA	27-42V	78%	0.9	923625mm
LX-12-280 LI EXC	12W	100-277VAC	280mA	27-42V	78%	0.9	923625mm
LX-12-300 LI EXC	12W	100-277VAC	300mA	27-42V	78%	0.9	923625mm

LX-12-XXX LI EXC spec REV C
