30W | 12/24V

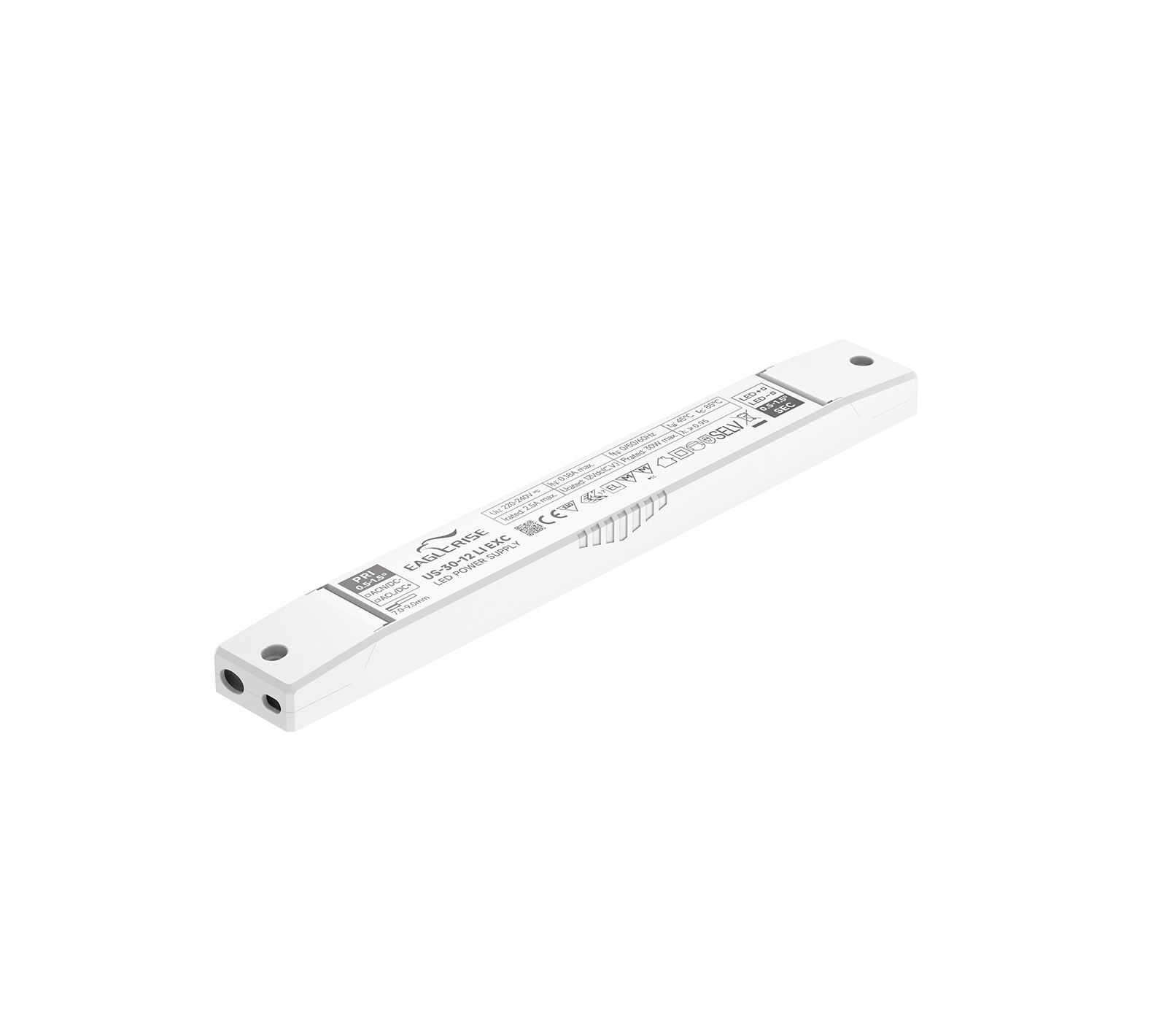

US-30-XX LI EXC

Product Description:

· For luminaries of protection ClassII，SELV，Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor：≥0.95（Typ.)

· Efficiency：≥88%（Typ.)

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
US-30-12 LI EXC30W220-240VAC0-2.5A12V88%0.95238*30*16mm
US-30-24 LI EXC30W220-240VAC0-1.25A24V88%0.95238*30*16mm



US-30-XX LI EXC spec REV A
