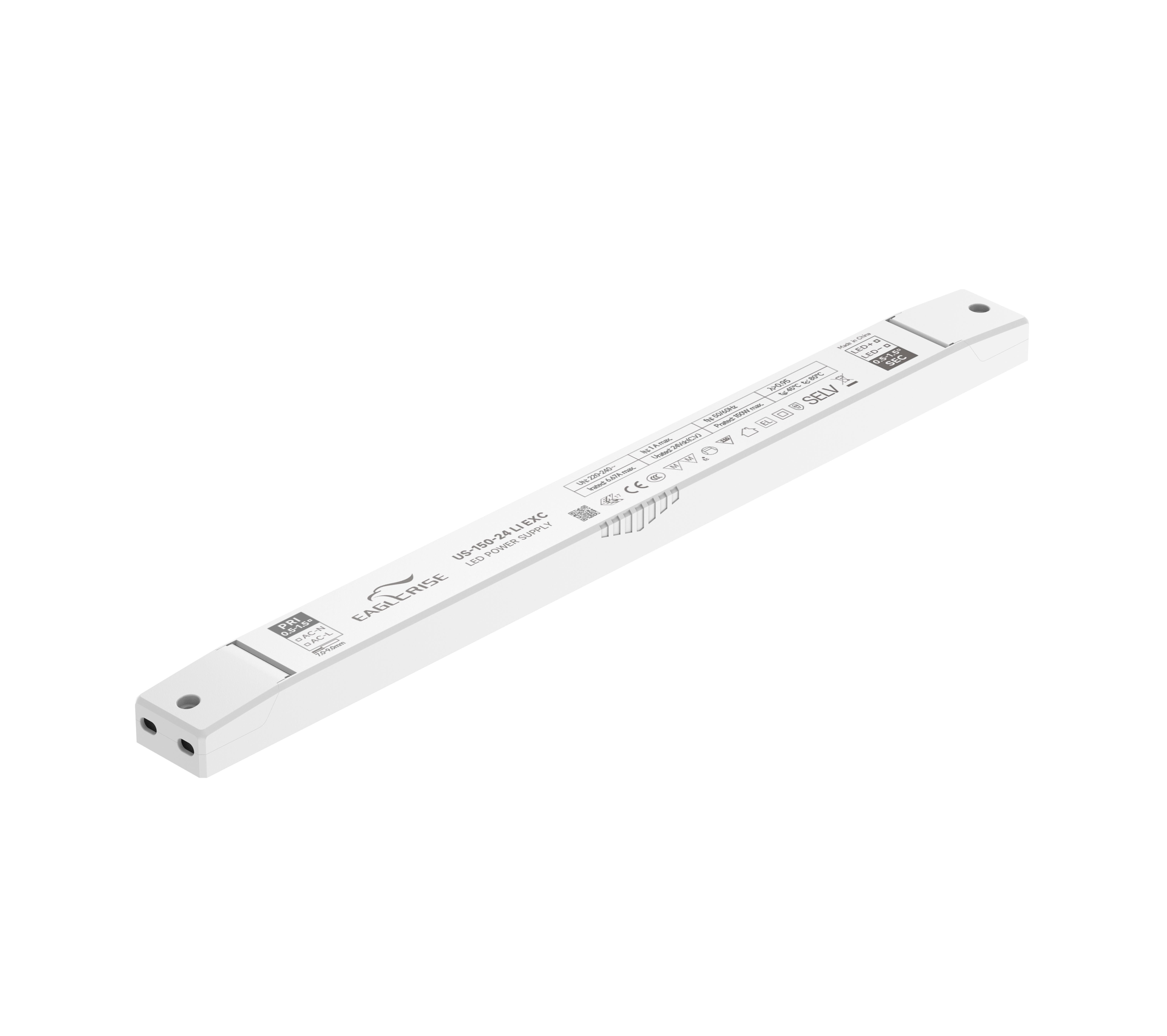

Product Image

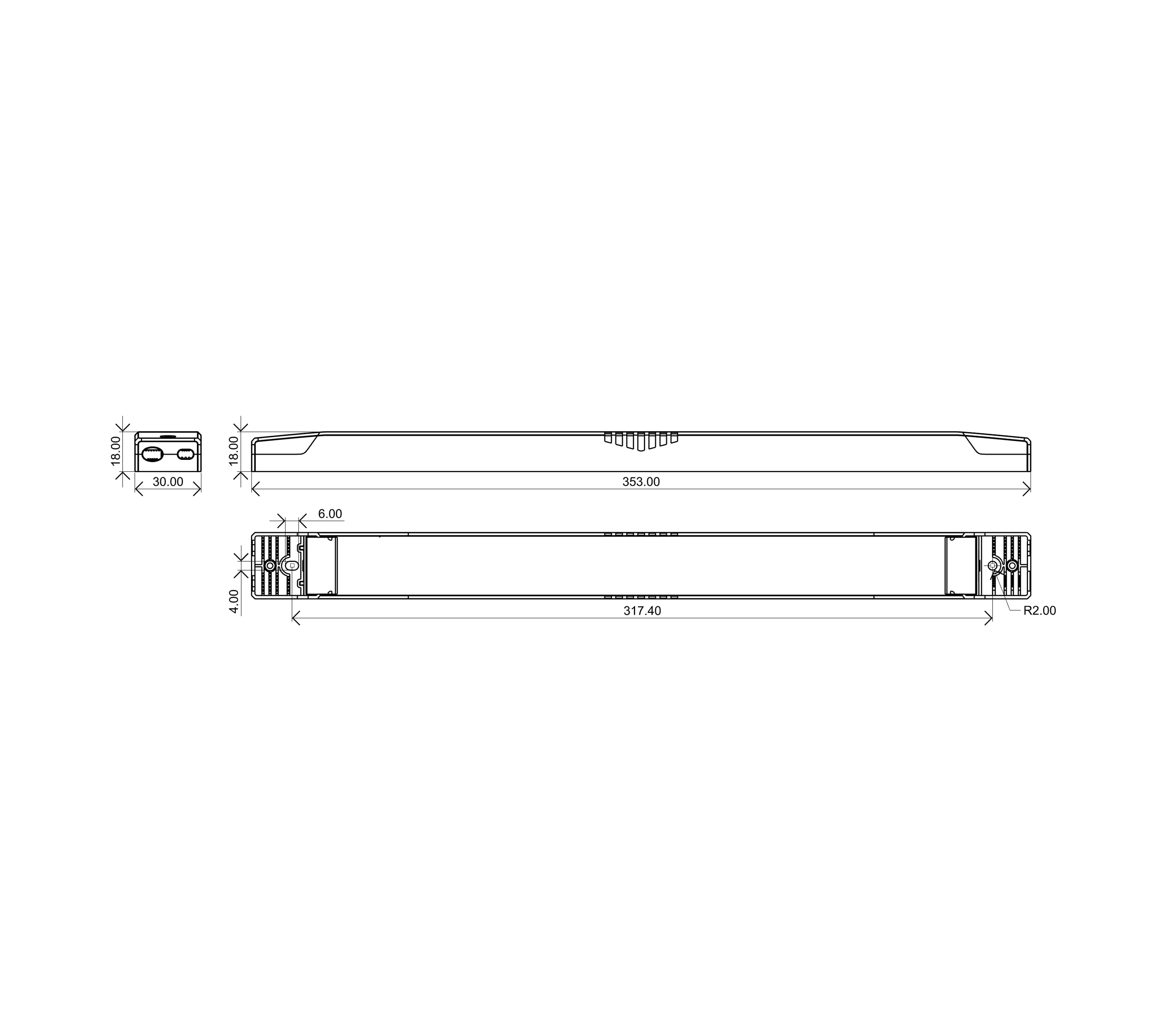

2D Line Drawing
Product Image
2D Line Drawing
150W | 24/48V

US-150-XX LI EXC

Product Description:

· For luminaries of protection ClassII，SELV，Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor：≥0.95（Typ.)

· Efficiency：≥93%（Typ.)

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
US-150-24 LI EXC150W220-240VAC0-6.25A24V93%0.95353*30*18mm
US-150-48 LI EXC150W220-240VAC0-3.13A48V93%0.95353*30*18mm



US-150-XX LI EXC spec REV A
