Home / Products / Compact Drivers / Intelligent / TRIAC / LS-8-XXX TRIAC LI1

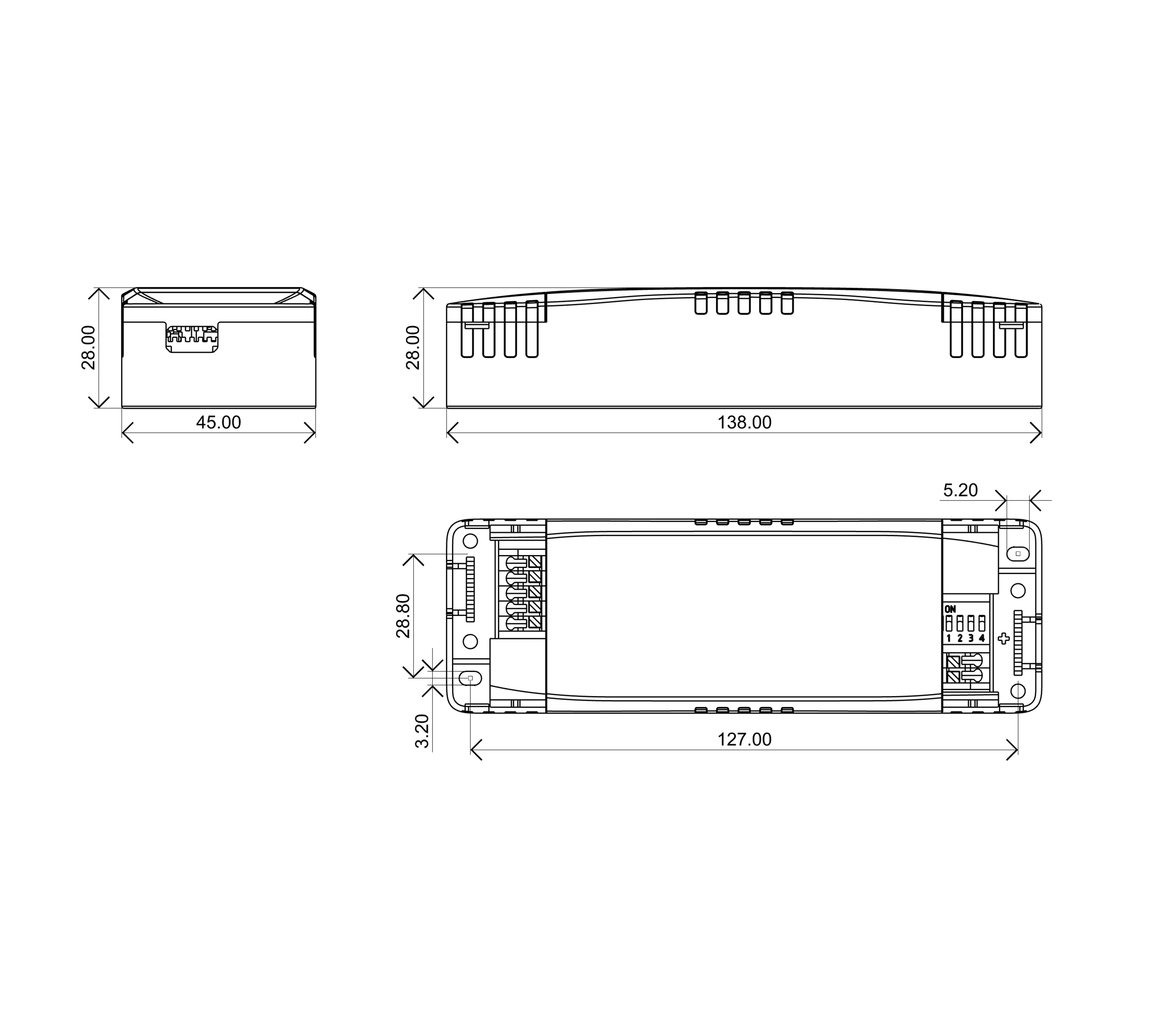

2D Line Drawing

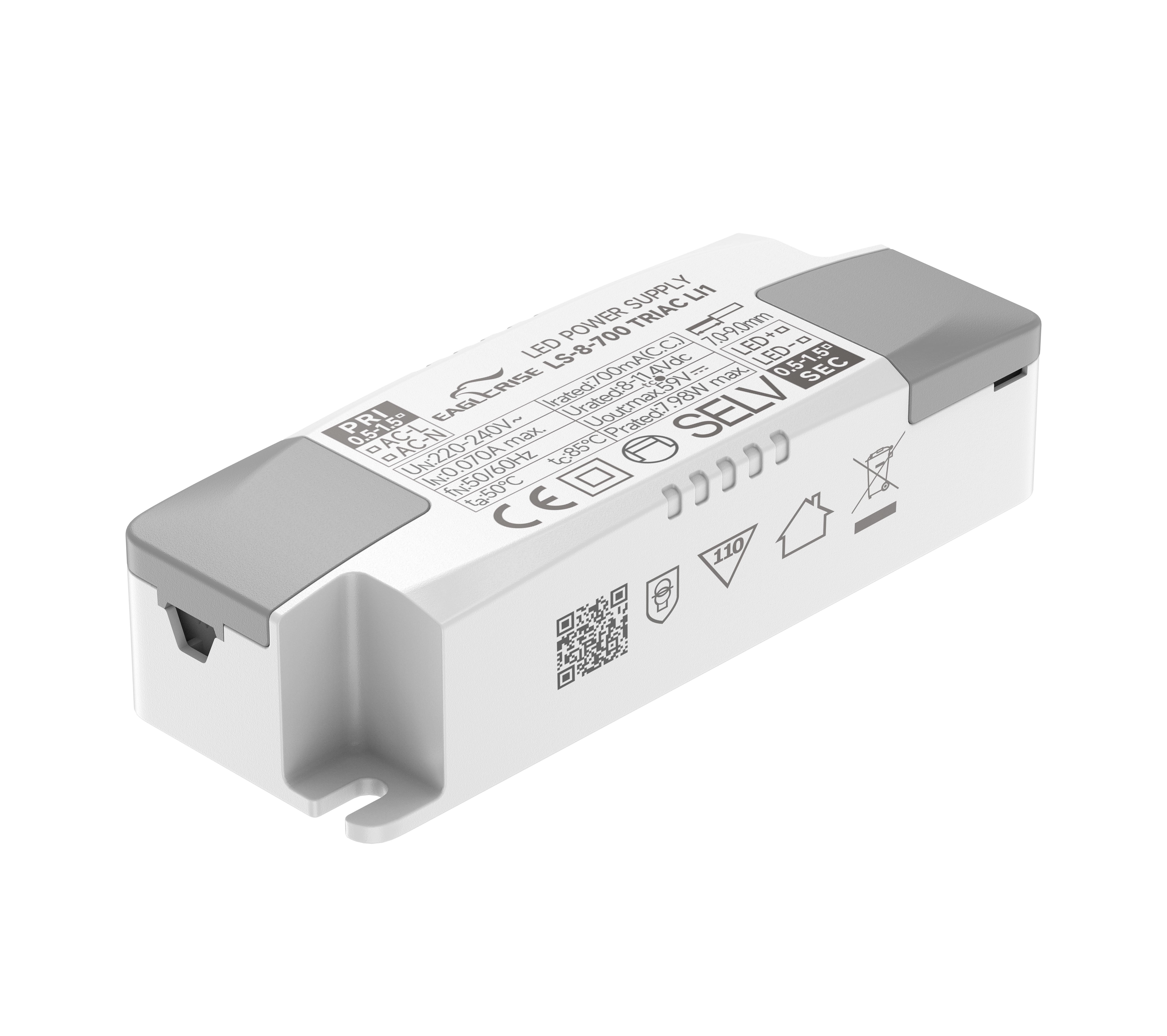

Product Image

2D Line Drawing

8W | 100-700mA

LS-8-XXX TRIAC LI1

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Efficiency>80% ; Power Factor＞0.95

· Dimmable via leading edge and trailing edge phase dimmers

· 5 years warranty

· Ta, Tc: 50°C/ 85°C

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
LS-8-100 TRIAL LI1	8W	220-240VAC	100mA	28-40VDC	78%	0.90	923625mm
LS-8-120 TRIAL LI1	8W	220-240VAC	120mA	28-40VDC	80%	0.90	923625mm
LS-8-150 TRIAL LI1	8W	220-240VAC	150mA	28-40VDC	80%	0.95	923625mm
LS-8-180 TRIAL LI1	8W	220-240VAC	180mA	28-40VDC	80%	0.95	923625mm
LS-8-200 TRIAL LI1	8W	220-240VAC	200mA	28-40VDC	80%	0.95	923625mm
LS-8-220 TRIAL LI1	8W	220-240VAC	220mA	28-40VDC	80%	0.95	923625mm
LS-8-250 TRIAL LI1	8W	220-240VAC	250mA	18-24VDC	80%	0.95	923625mm
LS-8-300 TRIAL LI1	8W	220-240VAC	300mA	18-24VDC	80%	0.95	923625mm
LS-8-350 TRIAL LI1	8W	220-240VAC	350mA	18-24VDC	80%	0.95	923625mm
LS-8-700 TRIAL LI1	8W	220-240VAC	700mA	8-11.4VDC	76%	0.95	923625mm

LS-8-XXX TRIAC LI1 spec REV C
