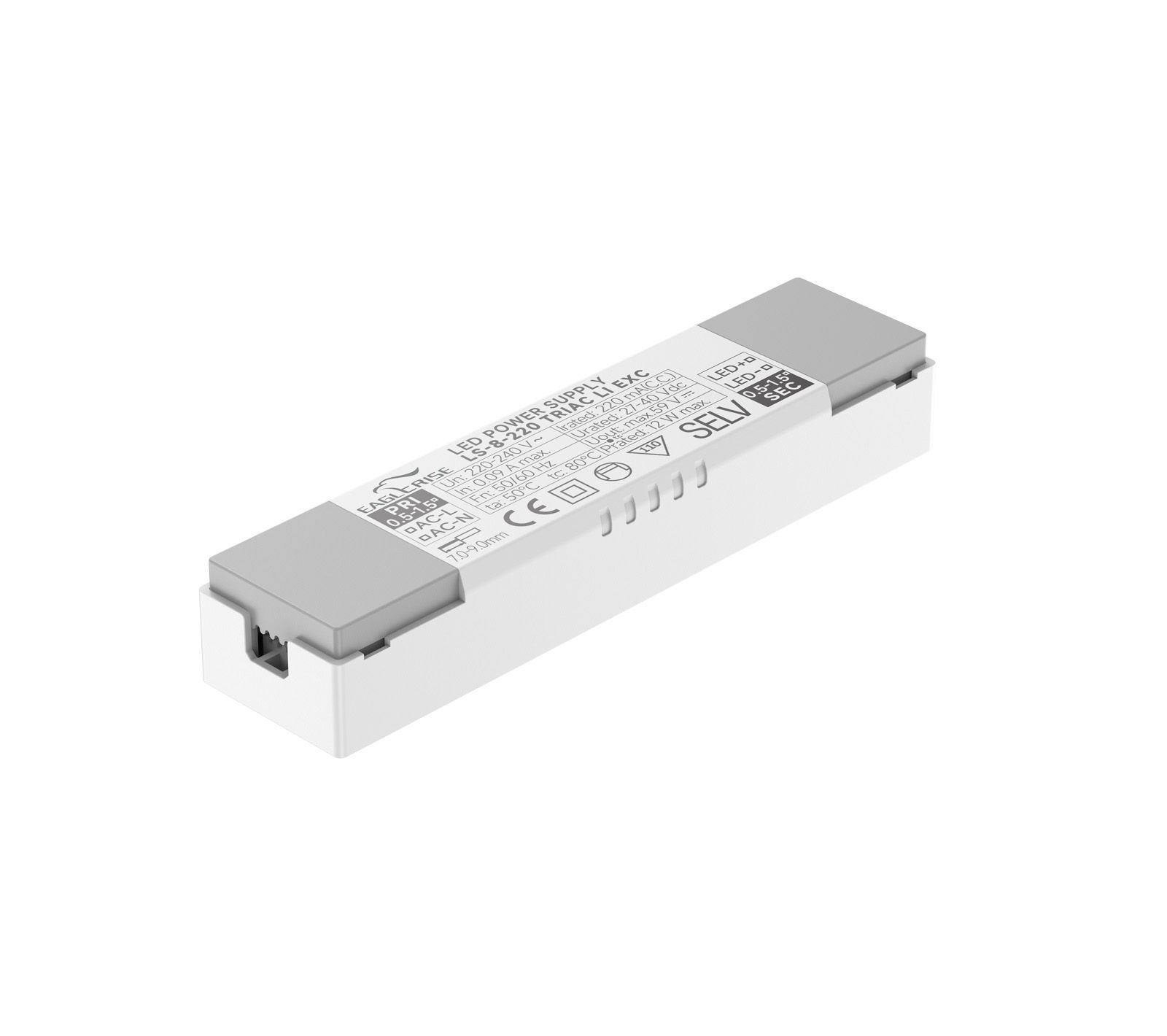

Product Image

2D Line Drawing

8W | 120-220mA

LS-8-XXX TRIAC LI EXC

Product Description:

· For luminaries of protection Class II，SELV，Independent
· Input Voltage：220-240VAC
· Protections：SCP/OLP/OVP/OTP
· Power Factor：0.85C
· Efficiency：80%
· 5 years warranty
· IP20

Click to Expand

Inquire Now

Models

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
LS-8-120 TRIAC LI EXC	8W	220-240VAC	120mA	27-40VDC	75%	0.90	1153020.5mm
LS-8-200 TRIAC LI EXC	8W	220-240VAC	180mA	27-40VDC	80%	0.90	1153020.5mm
LS-8-220 TRIAC LI EXC	8W	220-240VAC	220mA	27-40VDC	83%	0.90	1153020.5mm
