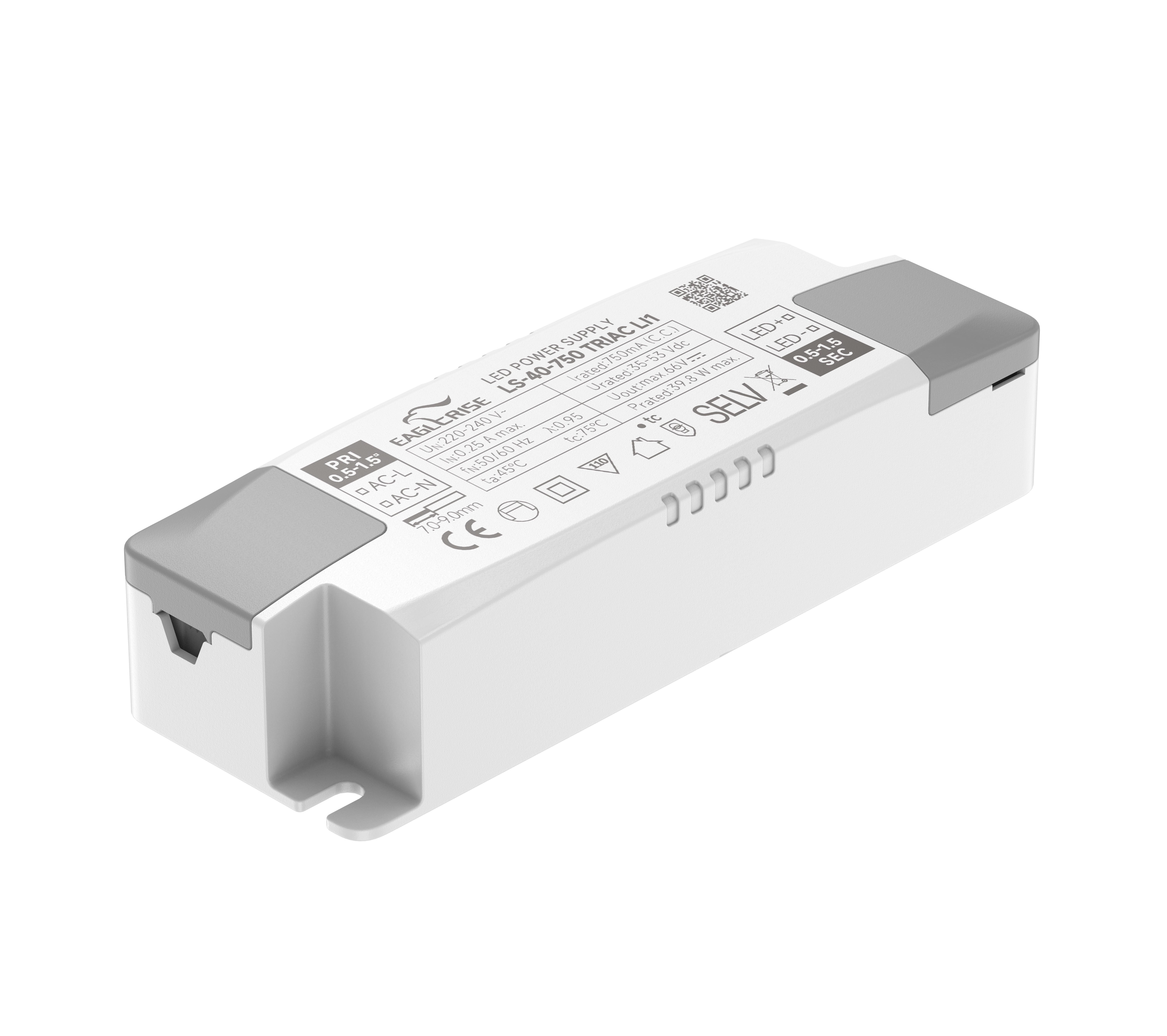

Product Image
2D Line Drawing
Product Image
2D Line Drawing
40W | 700-1050mA

LS-40-XXX TRIAC LI1

Product Description:

· For luminaries of protectionClassII，SELV，Independent

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：＞0.95

· Efficiency：87%

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-40-700 TRIAC LI140W220-240VAC700mA36-54V87%0.95135*41*25mm
LS-40-750 TRIAC LI140W220-240VAC750mA35-53V87%0.95135*41*25mm
LS-40-800 TRIAC LI140W220-240VAC800mA33-50V87%0.95135*41*25mm
LS-40-850 TRIAC LI140W220-240VAC850mA31-47V87%0.95135*41*25mm
LS-40-900 TRIAC LI140W220-240VAC900mA27-42V87%0.95135*41*25mm
LS-40-950 TRIAC LI140W220-240VAC950mA28-40V87%0.95135*41*25mm
LS-40-1000 TRIAC LI140W220-240VAC1000mA28-40V87%0.95135*41*25mm
LS-40-1050 TRIAC LI140W220-240VAC1050mA28-40V87%0.95135*41*25mm



LS-40-XXX TRIAC LI1 spec REV B
