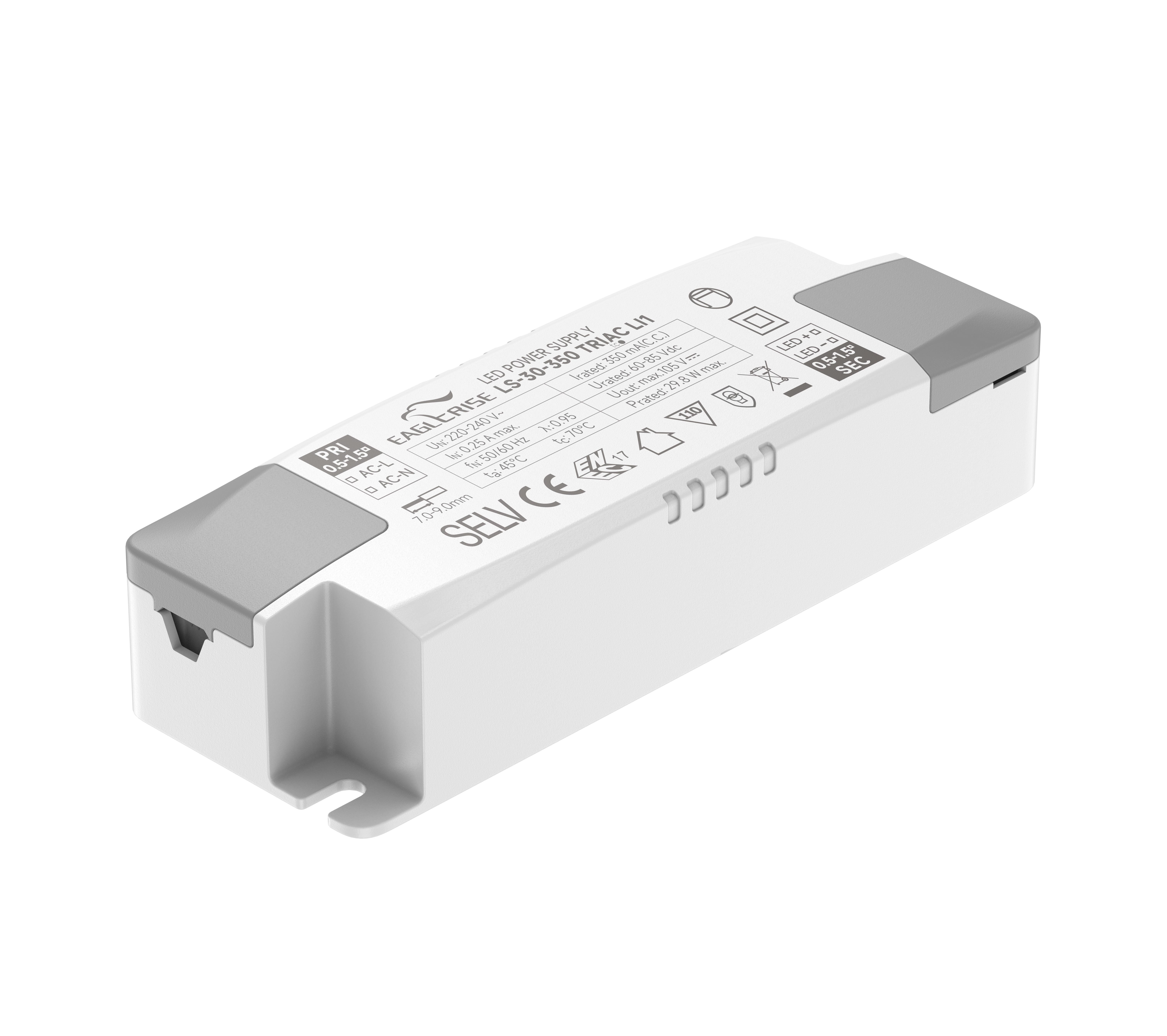

Product Image

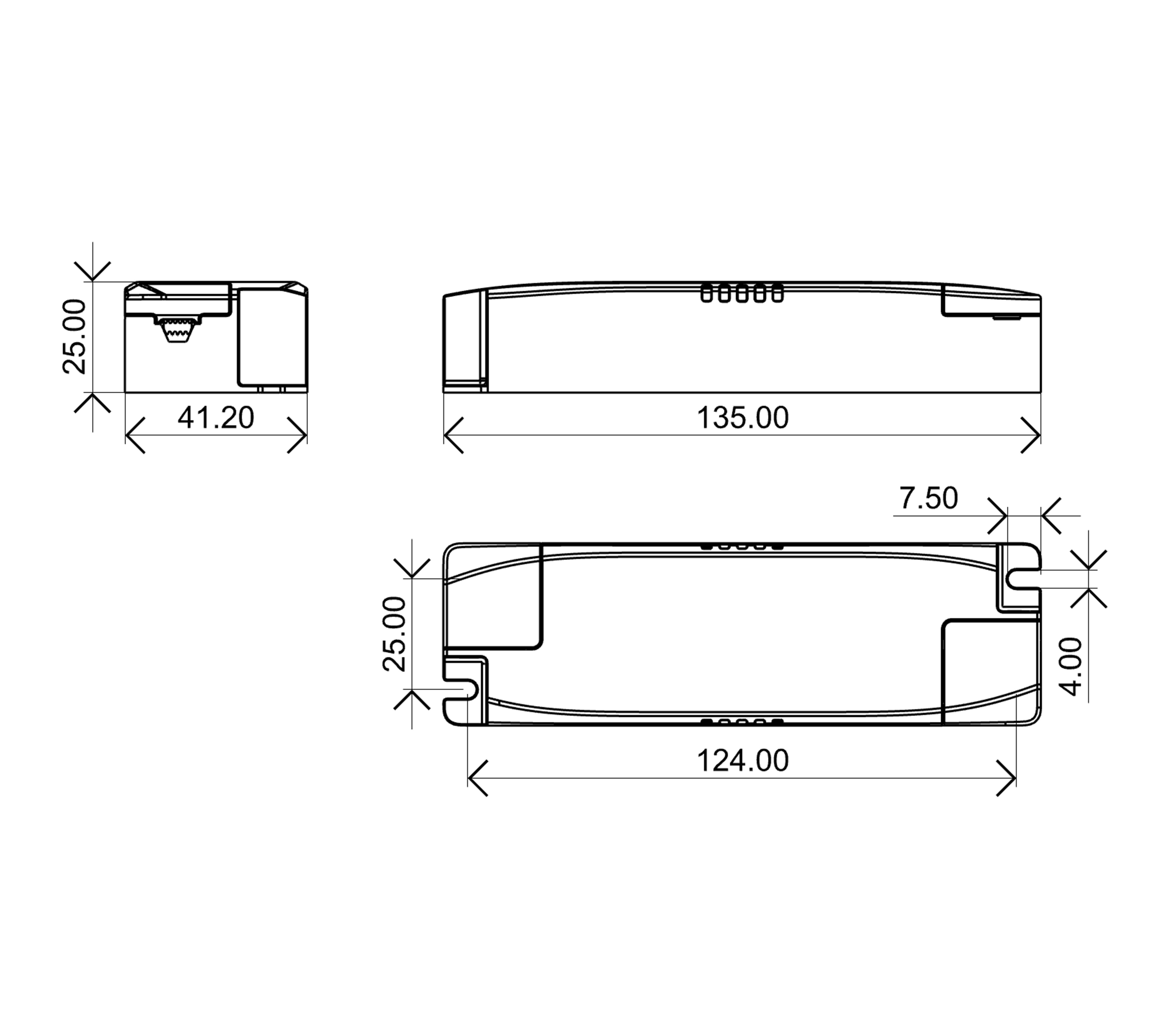

2D Line Drawing
Product Image
2D Line Drawing
30W | 600-900mA

LS-30-XXX TRIAC LI1

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Efficiency>86% ; Power Factor＞0.95

· Dimmable via leading edge and trailing edge phase dimmers

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
LS-30-600 TRIAL LI130W220-240VAC600mA35-50VDC86%0.95135*41*25mm
LS-30-650 TRIAL LI130W220-240VAC650mA30-45VDC86%0.95135*41*25mm
LS-30-700 TRIAL LI130W220-240VAC700mA28-42VDC86%0.95135*41*25mm
LS-30-750 TRIAL LI130W220-240VAC750mA28-40VDC86%0.95135*41*25mm
LS-30-800 TRIAL LI130W220-240VAC800mA28-40VDC86%0.95135*41*25mm
LS-30-850 TRIAL LI130W220-240VAC850mA24-37VDC86%0.95135*41*25mm
LS-30-900 TRIAL LI130W220-240VAC900mA22-34VDC86%0.95135*41*25mm


LS-30-XXX TRIAC LI1 spec REV B
