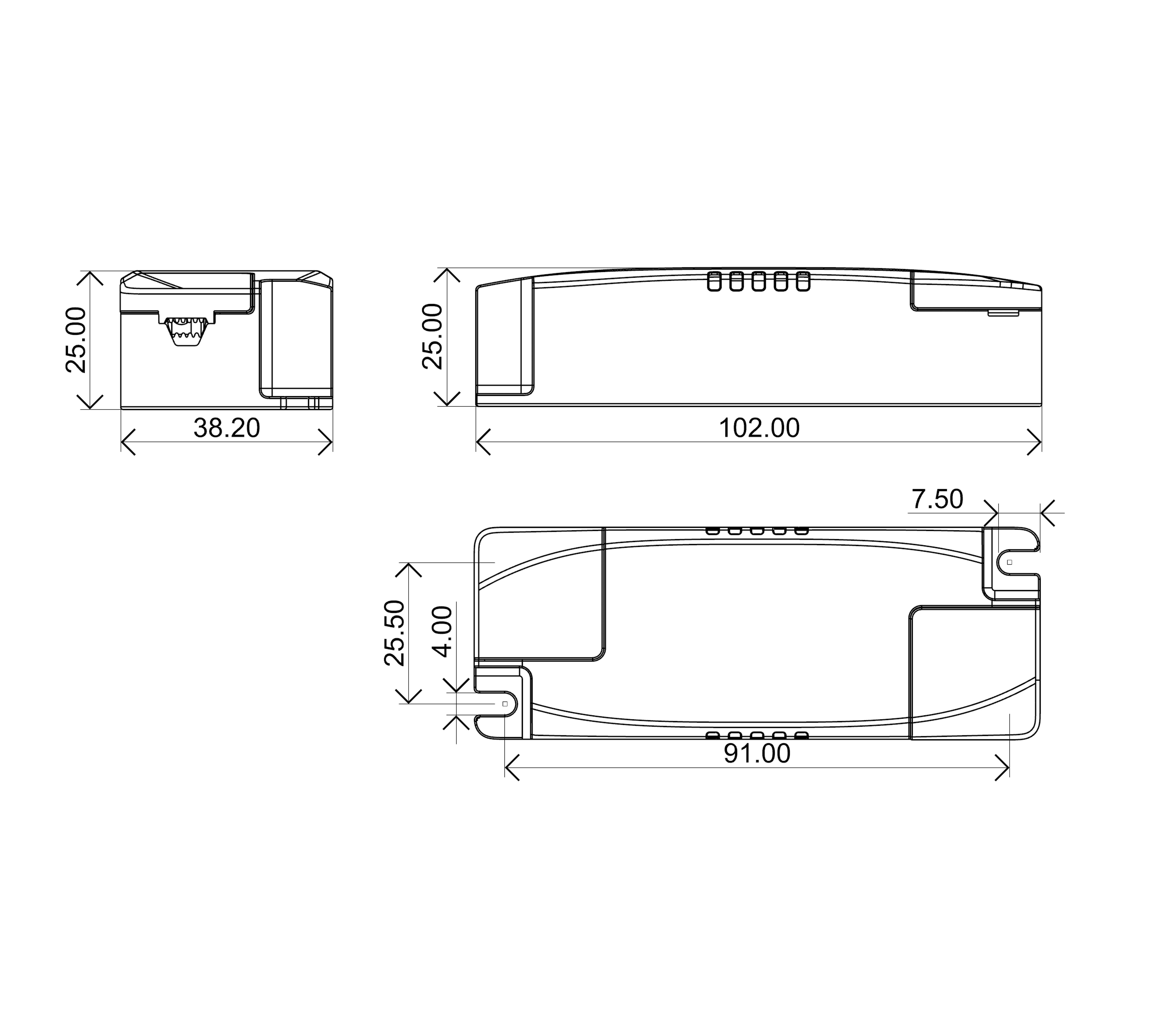

2D Line Drawing

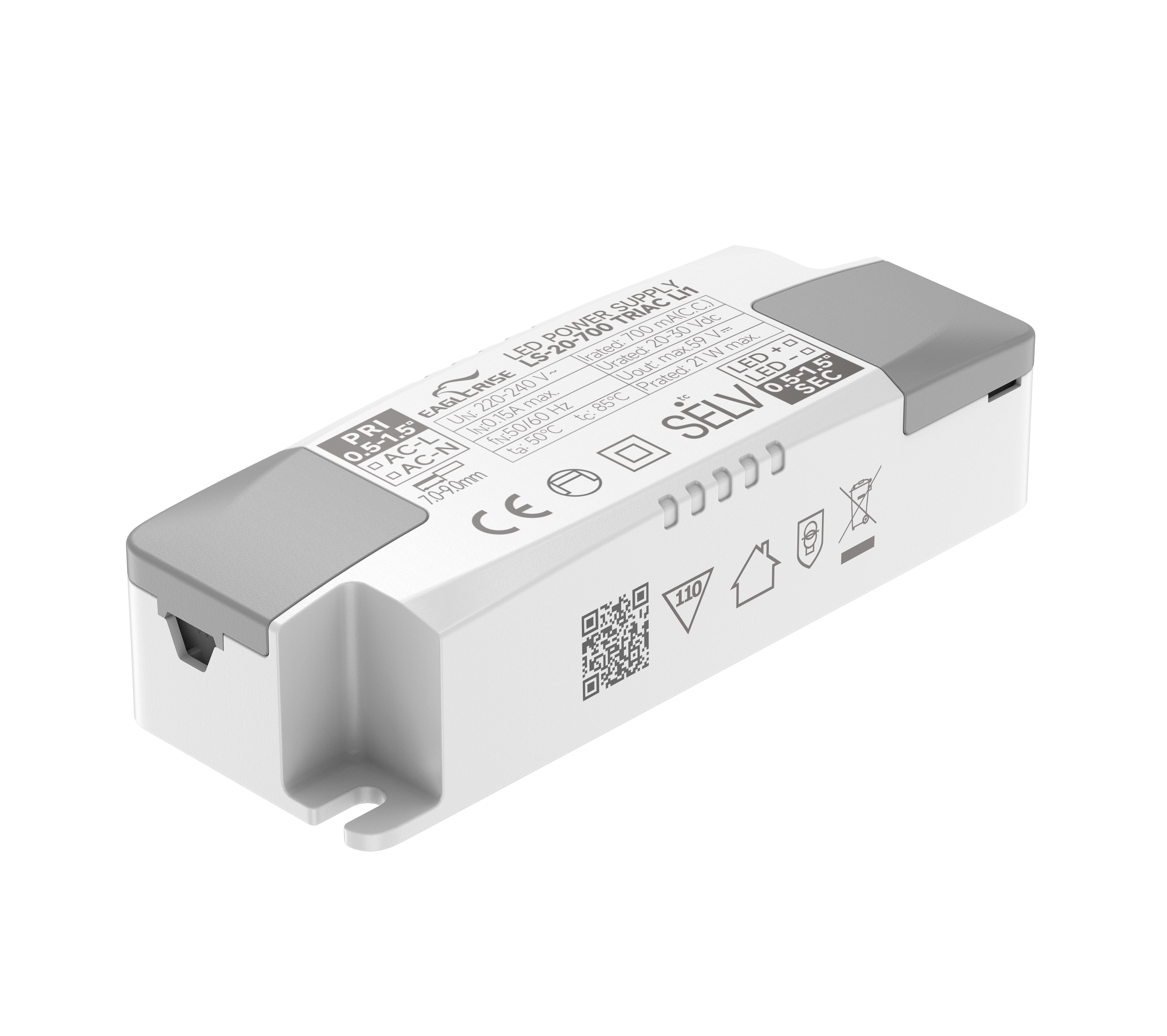

Product Image

2D Line Drawing

20W | 300-700mA

LS-20-XXX TRIAC LI1

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Efficiency>85% ; Power Factor＞0.95

· Dimmable via leading edge and trailing edge phase dimmers

· 5 years warranty

· Ta, Tc: 50°C/ 85°C

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
LS-20-300 TRIAL LI1	20W	220-240VAC	300mA	50-68VDC	85%	0.95	1083825mm
LS-20-350 TRIAL LI1	20W	220-240VAC	350mA	40-60VDC	85%	0.95	1083825mm
LS-20-400 TRIAL LI1	20W	220-240VAC	400mA	28-40VDC	85%	0.95	1083825mm
LS-20-450 TRIAL LI1	20W	220-240VAC	450mA	28-40VDC	85%	0.95	1083825mm
LS-20-500 TRIAL LI1	20W	220-240VAC	500mA	28-40VDC	85%	0.95	1083825mm
LS-20-550 TRIAL LI1	20W	220-240VAC	550mA	28-3VDC	85%	0.95	1083825mm
LS-20-600 TRIAL LI1	20W	220-240VAC	600mA	22-34VDC	85%	0.95	1083825mm
LS-20-650 TRIAL LI1	20W	220-240VAC	650mA	20-30VDC	85%	0.95	1083825mm
LS-20-700 TRIAL LI1	20W	220-240VAC	700mA	20-30VDC	85%	0.95	1083825mm

LS-20-XXX TRIAC LI1 spec REV B
