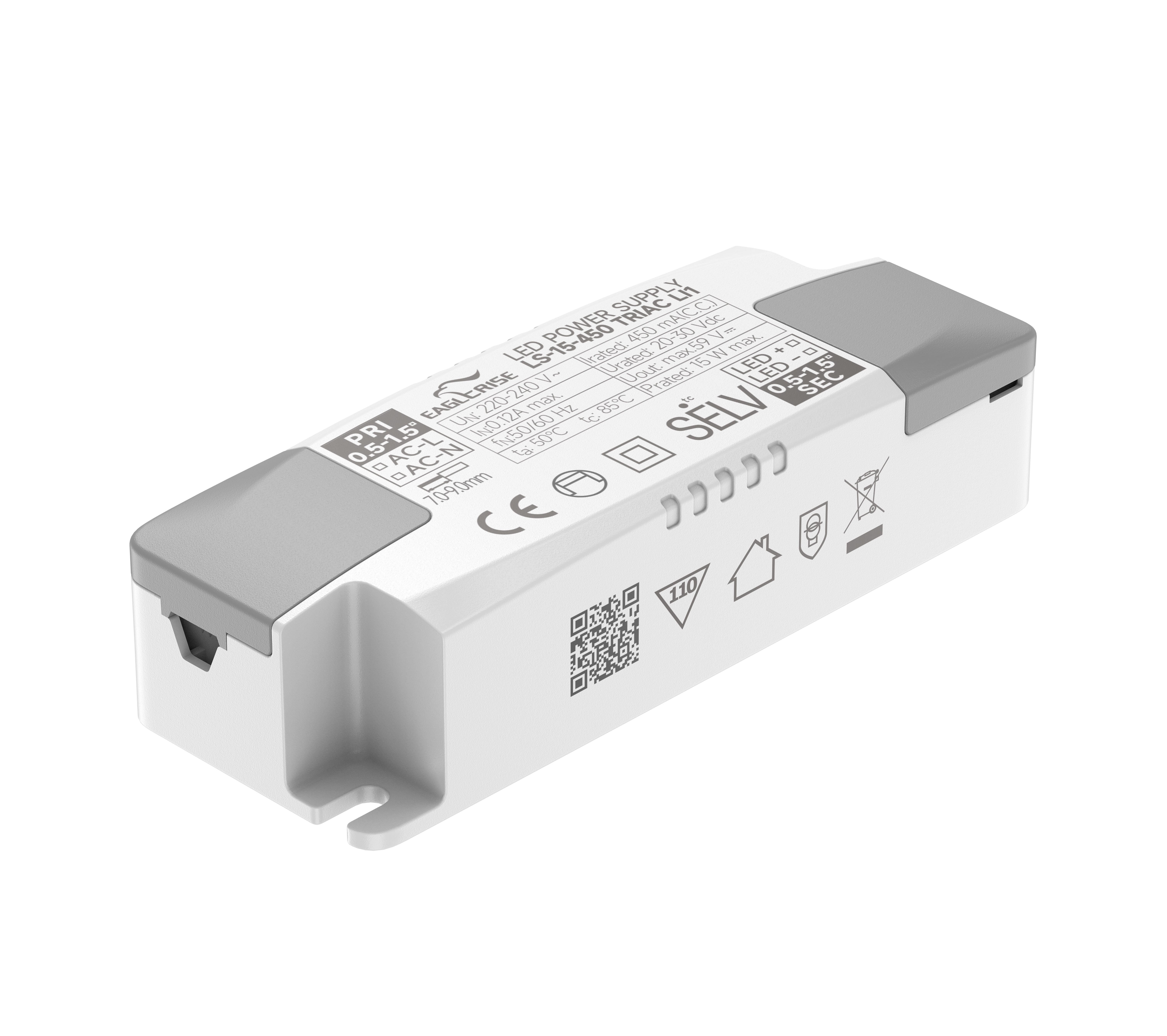

Product Image
2D Line Drawing
Product Image
2D Line Drawing
15W | 250-700mA

LS-15-XXX TRIAC LI1

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Efficiency>82% ; Power Factor＞0.95

· Dimmable via leading edge and trailing edge phase dimmers

· 5 years warranty

· Ta, Tc: 50°C/ 85°C

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
LS-15-250 TRIAL LI115W220-240VAC250mA28-40VDC82%0.95102*38*25mm
LS-15-280 TRIAL LI115W220-240VAC280mA28-40VDC82%0.95102*38*25mm
LS-15-300 TRIAL LI115W220-240VAC300mA28-40VDC82%0.95102*38*25mm
LS-15-350 TRIAL LI115W220-240VAC350mA28-40VDC82%0.95102*38*25mm
LS-15-400 TRIAL LI115W220-240VAC400mA25-38VDC82%0.95102*38*25mm
LS-15-450 TRIAL LI115W220-240VAC450mA22-33VDC82%0.95102*38*25mm
LS-15-500 TRIAL LI115W220-240VAC500mA20-30VDC82%0.95102*38*25mm
LS-15-550 TRIAL LI115W220-240VAC550mA17-27VDC82%0.95102*38*25mm
LS-15-600 TRIAL LI115W220-240VAC600mA16-25VDC82%0.95102*38*25mm
LS-15-650 TRIAL LI115W220-240VAC650mA16-23VDC82%0.95102*38*25mm
LS-15-700 TRIAL LI115W220-240VAC700mA14-22VDC82%0.95102*38*25mm



LS-15-XXX TRIAC LI1 spec REV B
