8W | 100-220mA

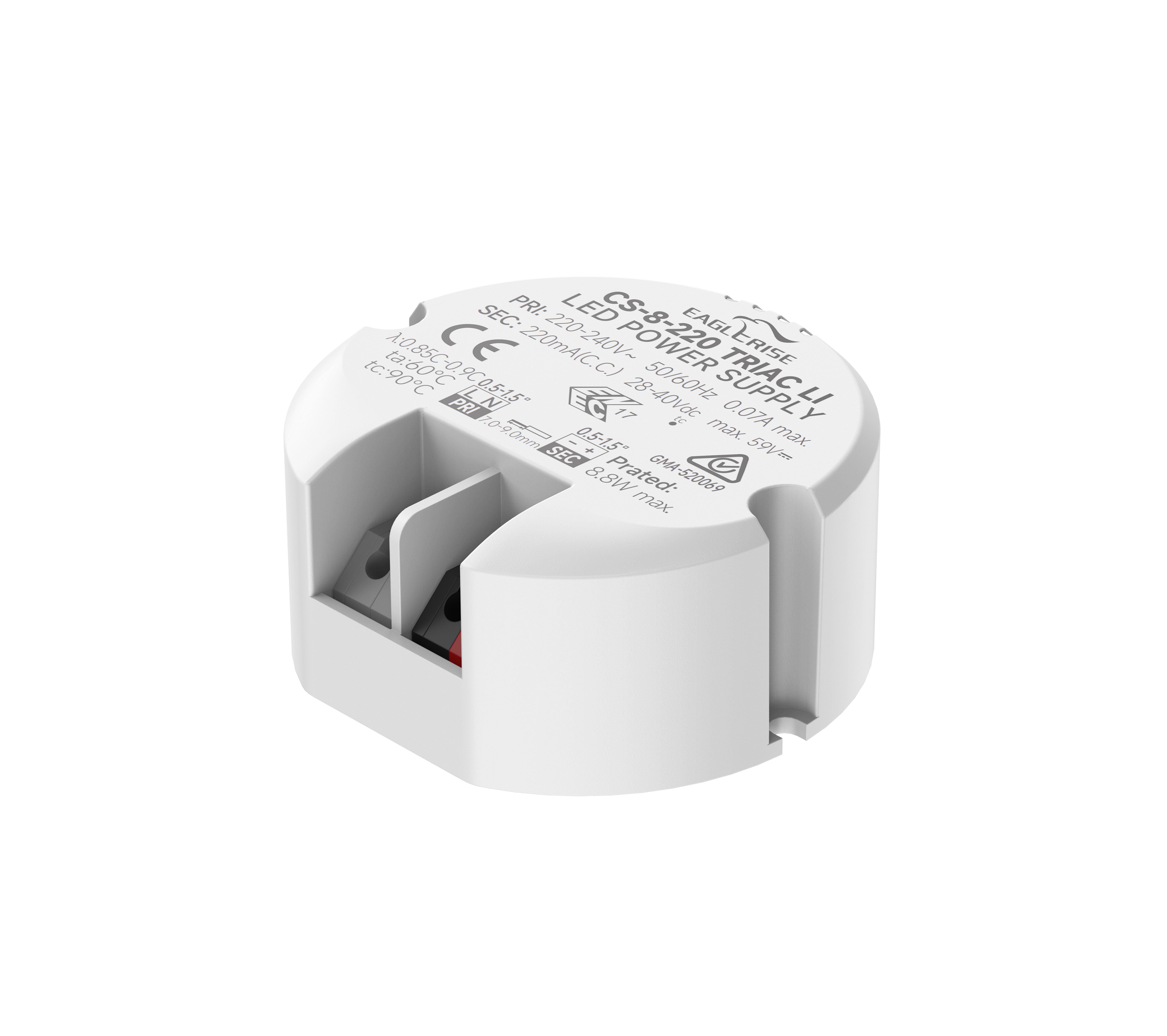

CS-8-XXX TRIAC LI

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Built-in

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Efficiency>80% ; Power Factor＞0.95

· Full range of double positioning hole design

· Dimmable via leading edge and trailing edge phase dimmers

· 5 years warranty

· Ta, Tc: 60°C/ 90°C

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
CS-8-100 TRIAL LI	8W	220-240VAC	100mA	28-40VDC	78%	0.90	Φ56*25.5mm
CS-8-120 TRIAL LI	8W	220-240VAC	120mA	28-40VDC	80%	0.90	Φ56*25.5mm
CS-8-150 TRIAL LI	8W	220-240VAC	150mA	28-40VDC	80%	0.95	Φ56*25.5mm
CS-8-180 TRIAL LI	8W	220-240VAC	180mA	28-40VDC	80%	0.95	Φ56*25.5mm
CS-8-200 TRIAL LI	8W	220-240VAC	200mA	28-40VDC	80%	0.95	Φ56*25.5mm
CS-8-220 TRIAL LI	8W	220-240VAC	220mA	28-40VDC	80%	0.95	Φ56*25.5mm

CS-8-XXX TRIAC LI spec REV D
