TRIAC
· For luminaire of protection class II
· Isolated / SELV / Built-in
· Input Voltage 220-240 VAC
· Protection: SCP/ OLP/ OVP/ OTP
· Efficiency>85% ; Power Factor＞0.95
· Full range of double positioning hole design
· Dimmable via leading edge and trailing edge phase dimmers
· 5 years warranty
· Ta, Tc: 60°C/ 90°C
| Models | Power | Input Voltage | Onput Current | Onput Voltage | Efficiency | Power Factor | Size |

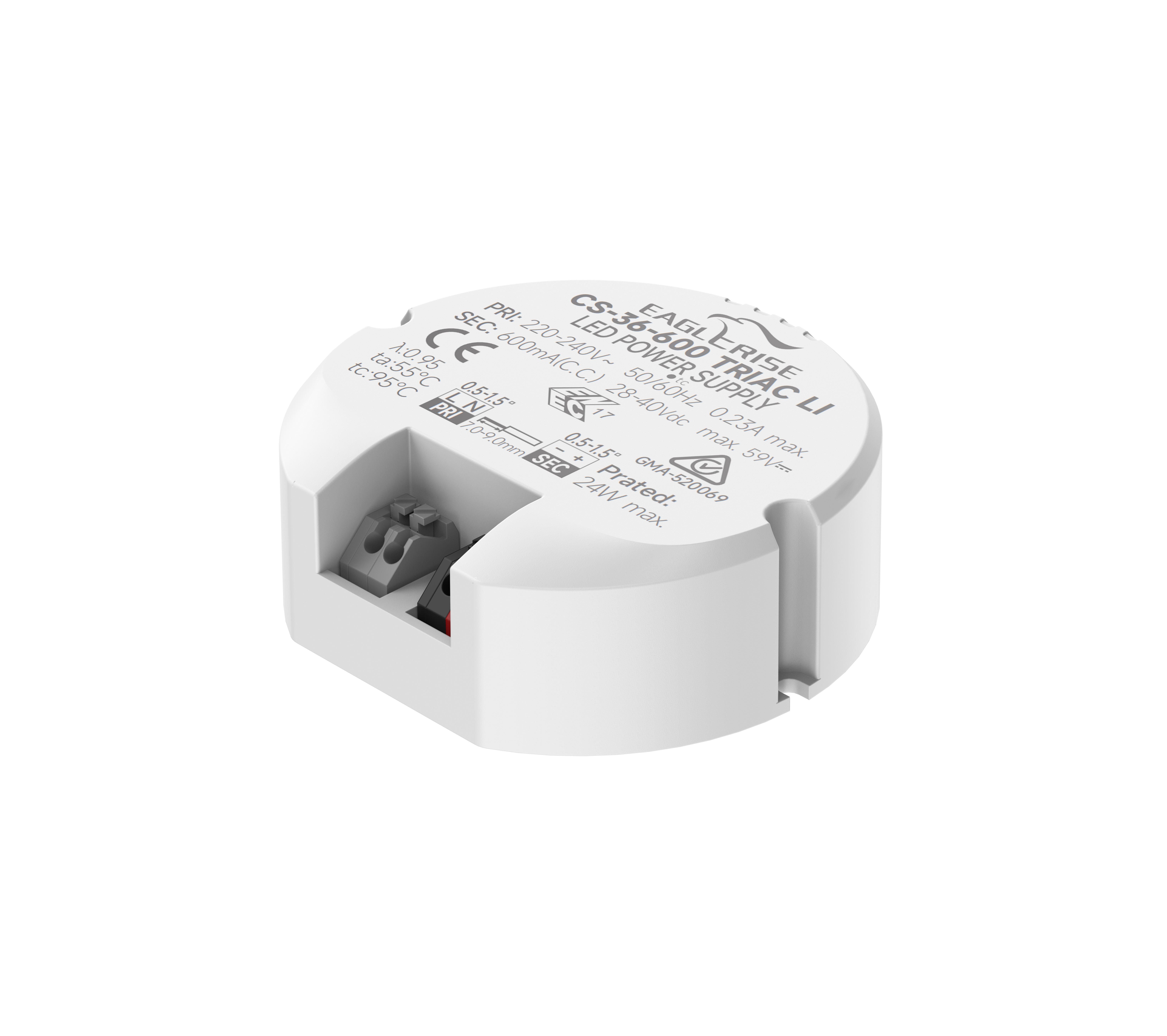

| CS-36-600 TRIAL LI | 36W | 220-240VAC | 600mA | 28-40VDC | 85% | 0.95 | Φ75*26mm |
| CS-36-650 TRIAL LI | 36W | 220-240VAC | 650mA | 28-40VDC | 85% | 0.95 | Φ75*26mm |
| CS-36-700 TRIAL LI | 36W | 220-240VAC | 700mA | 28-40VDC | 85% | 0.95 | Φ75*26mm |
| CS-36-750 TRIAL LI | 36W | 220-240VAC | 750mA | 28-40VDC | 85% | 0.95 | Φ75*26mm |
| CS-36-800 TRIAL LI | 36W | 220-240VAC | 800mA | 28-40VDC | 85% | 0.95 | Φ75*26mm |
| CS-36-850 TRIAL LI | 36W | 220-240VAC | 850mA | 28-40VDC | 85% | 0.95 | Φ75*26mm |
| CS-36-900 TRIAL LI | 36W | 220-240VAC | 900mA | 28-40VDC | 85% | 0.95 | Φ75*26mm |
