TRIAC
· For luminaire of protection class II
· Isolated / SELV / Built-in
· Input Voltage 220-240 VAC
· Protection: SCP/ OLP/ OVP/ OTP
· Efficiency>85% ; Power Factor＞0.95
· Full range of double positioning hole design
· Dimmable via leading edge and trailing edge phase dimmers
· 5 years warranty
· Ta, Tc: 60°C/ 90°C
| Models | Power | Input Voltage | Onput Current | Onput Voltage | Efficiency | Power Factor | Size |
| CS-22-400 TRIAL LI | 22W | 220-240VAC | 400mA | 28-40VDC | 85% | 0.95 | Φ56*25.5mm |
| CS-22-450 TRIAL LI | 22W | 220-240VAC | 450mA | 28-40VDC | 85% | 0.95 | Φ56*25.5mm |

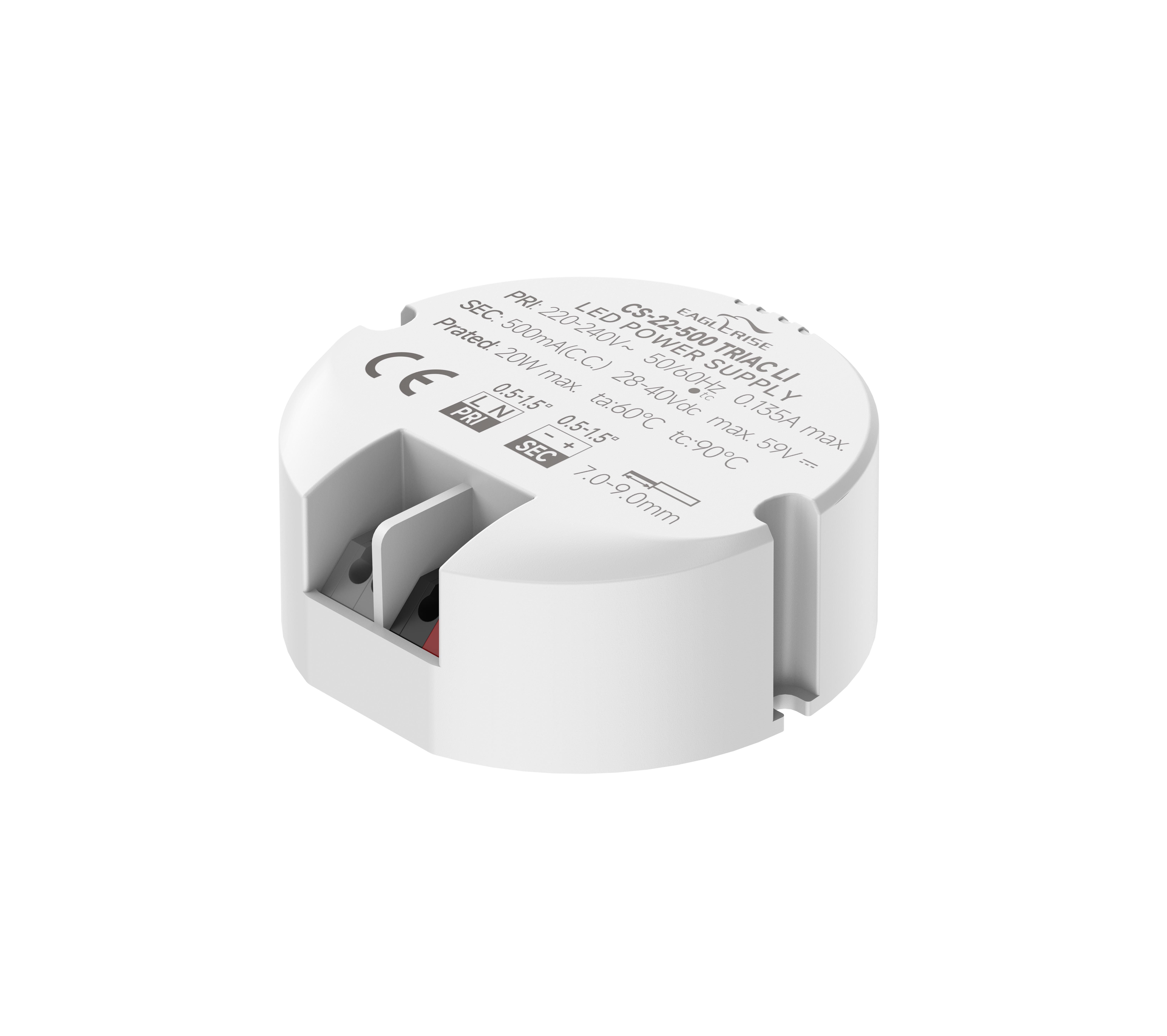

| CS-22-500 TRIAL LI | 22W | 220-240VAC | 500mA | 28-40VDC | 85% | 0.95 | Φ56*25.5mm |
| CS-22-550 TRIAL LI | 22W | 220-240VAC | 550mA | 28-40VDC | 85% | 0.95 | Φ56*25.5mm |
