TRIAC
· For luminaire of protection class II
· Isolated / SELV / Built-in
· Input Voltage 220-240 VAC
· Protection: SCP/ OLP/ OVP/ OTP
· Efficiency>85% ; Power Factor＞0.95
· Full range of double positioning hole design
· Dimmable via leading edge and trailing edge phase dimmers
· 5 years warranty
· Ta, Tc: 60°C/ 90°C
| Models | Power | Input Voltage | Onput Current | Onput Voltage | Efficiency | Power Factor | Size |

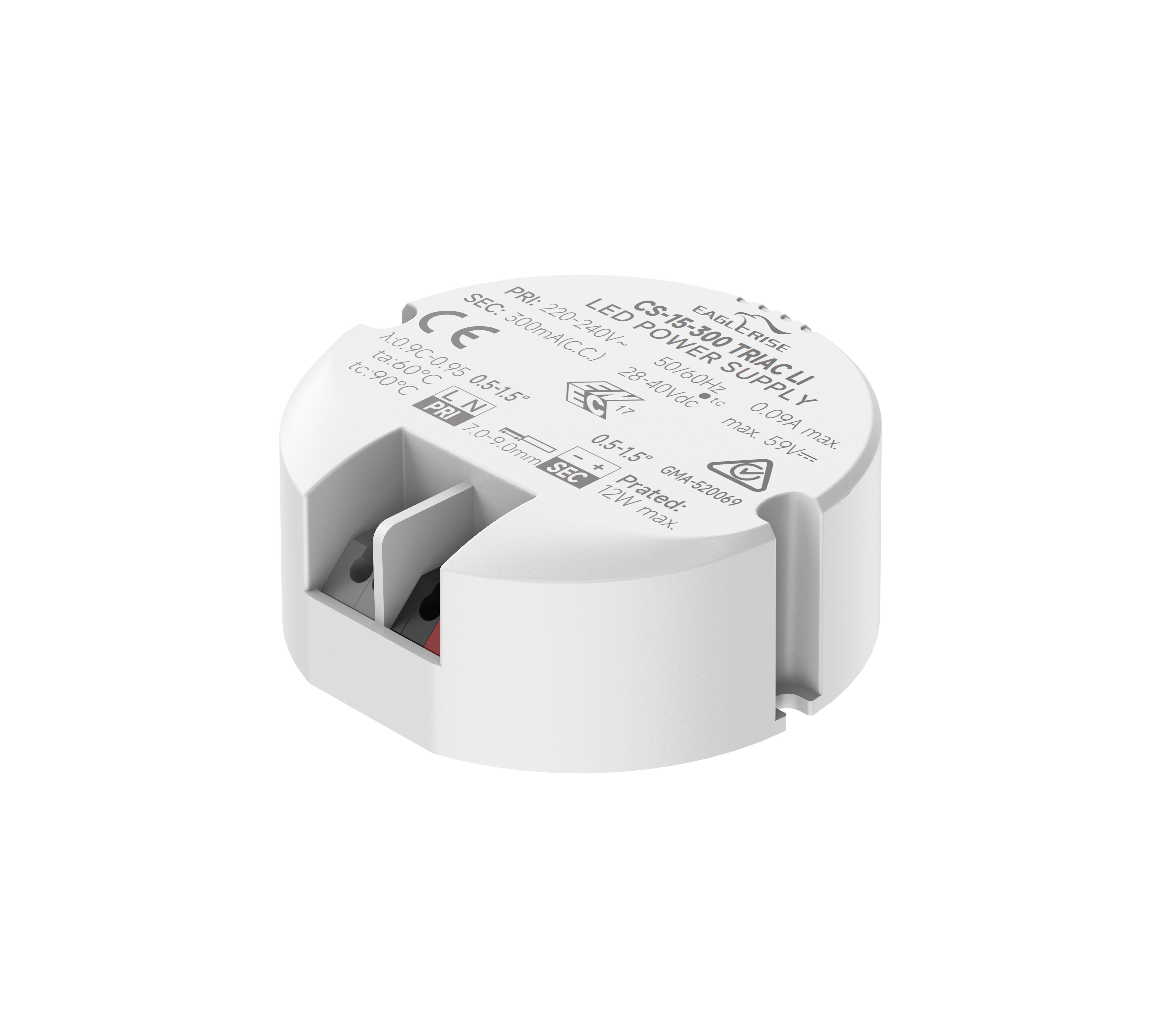

| CS-15-250 TRIAL LI | 15W | 220-240VAC | 250mA | 28-40VDC | 82% | 0.95 | Φ65*25mm |
| CS-15-280 TRIAL LI | 15W | 220-240VAC | 280mA | 28-40VDC | 82% | 0.95 | Φ65*25mm |
| CS-15-300 TRIAL LI | 15W | 220-240VAC | 300mA | 28-40VDC | 82% | 0.95 | Φ65*25mm |
| CS-15-350 TRIAL LI | 15W | 220-240VAC | 350mA | 28-40VDC | 82% | 0.95 | Φ65*25mm |
