Home / Products / OSRAM LED Drivers / Track Drivers / ITS FIX 12/220-240/300 CS T-X HE

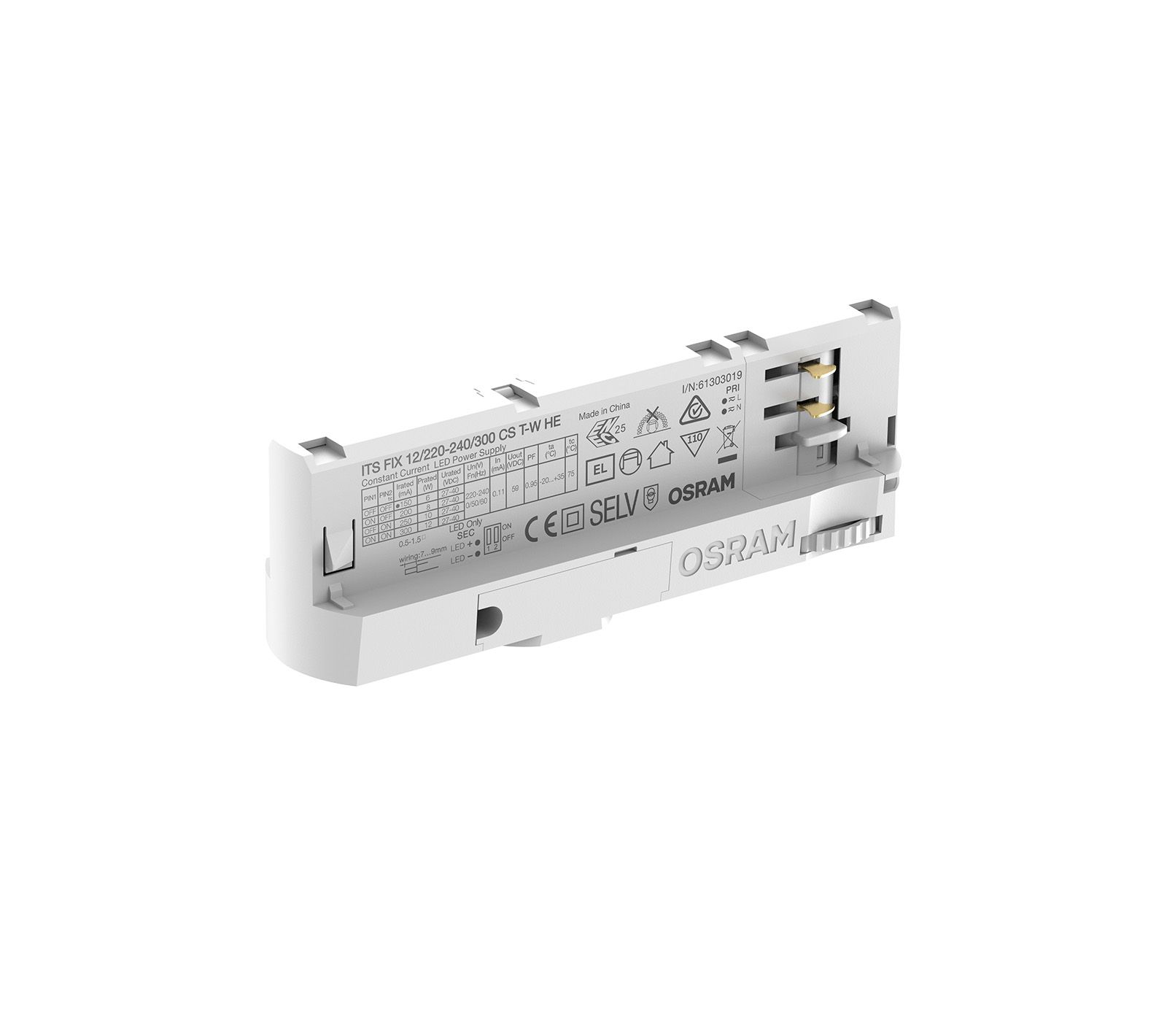

Product Image

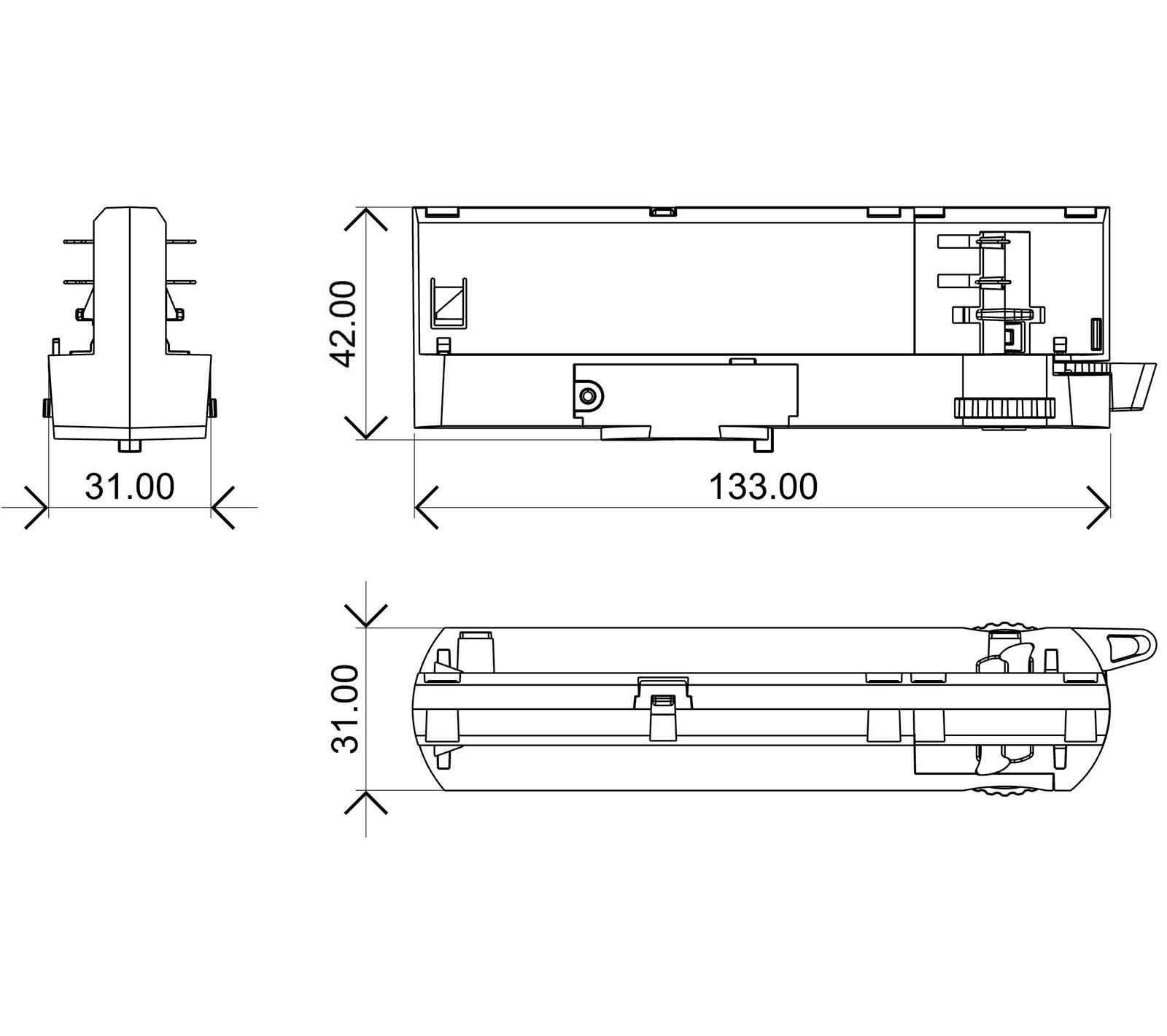

2D Line Drawing
Product Image
2D Line Drawing
12W | 150-300mA

ITS FIX 12/220-240/300 CS T-X HE

Product Description:


· For luminaire of protection class II
· Isolated / SELV / Independent
· Input Voltage 220-240 VAC
· Protections: SCP/ OLP/ OVP/ OTP
· Available in black, white and grey
· Power Factor 0.95
· Efficiency up to 92%
· Adjustable output current with DIP-switch
· Suitable for emergency lighting acc. to EN 50172
· EOFi=100%
· 5 years warranty
· Surge: 2kV
· Mini size: 133mm length

Click to Expand
Inquire Now
Models
Item NO.ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPFSize (L*W*H)
61303019ITS FIX 12/220-240/300 CS T-W HE12W220-240VAC150-300mA27-40V92%0.95133*31*42mm
61303018ITS FIX 12/220-240/300 CS T-B HE
61303017ITS FIX 12/220-240/300 CS T-G HE
