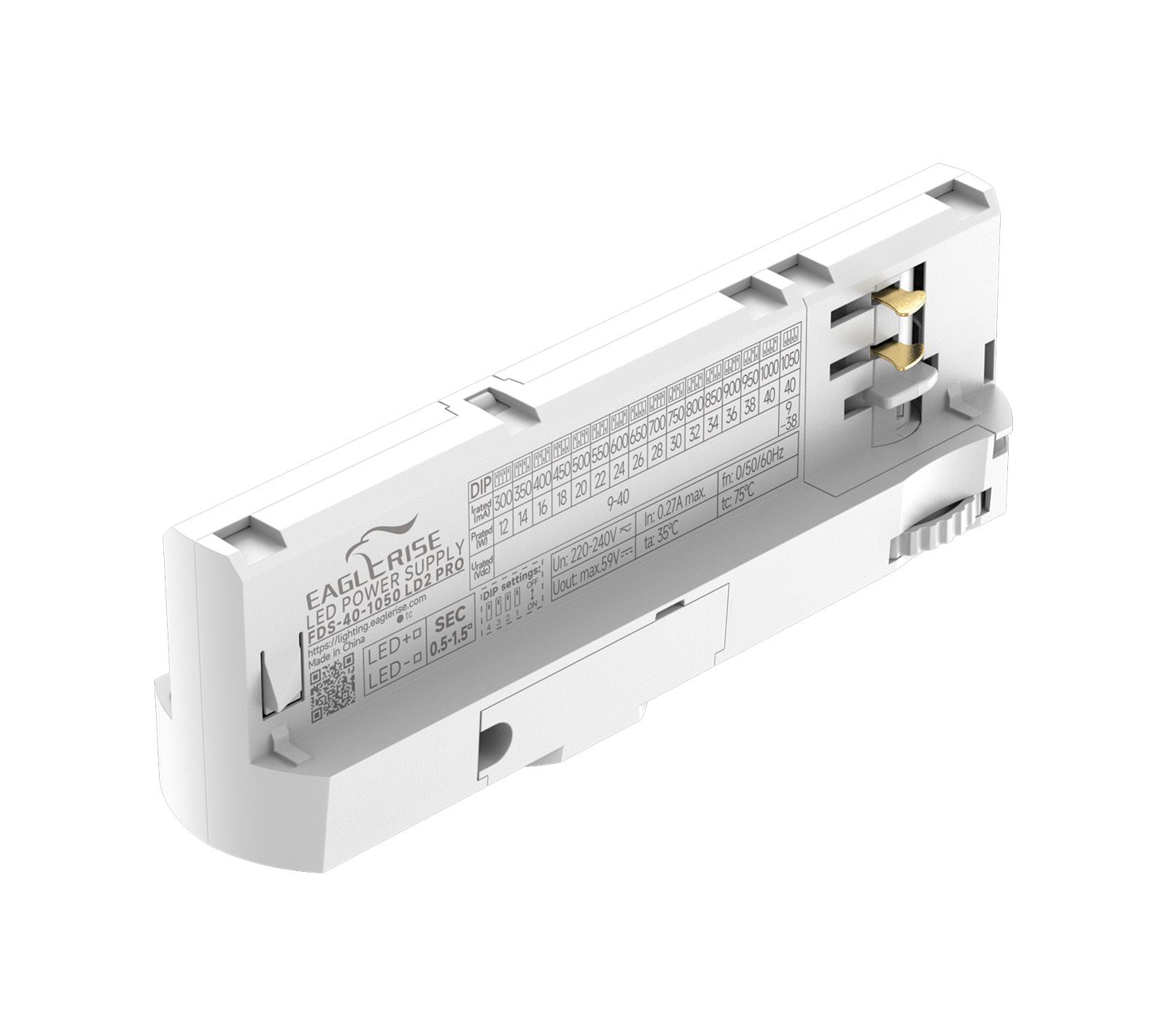

Product Image

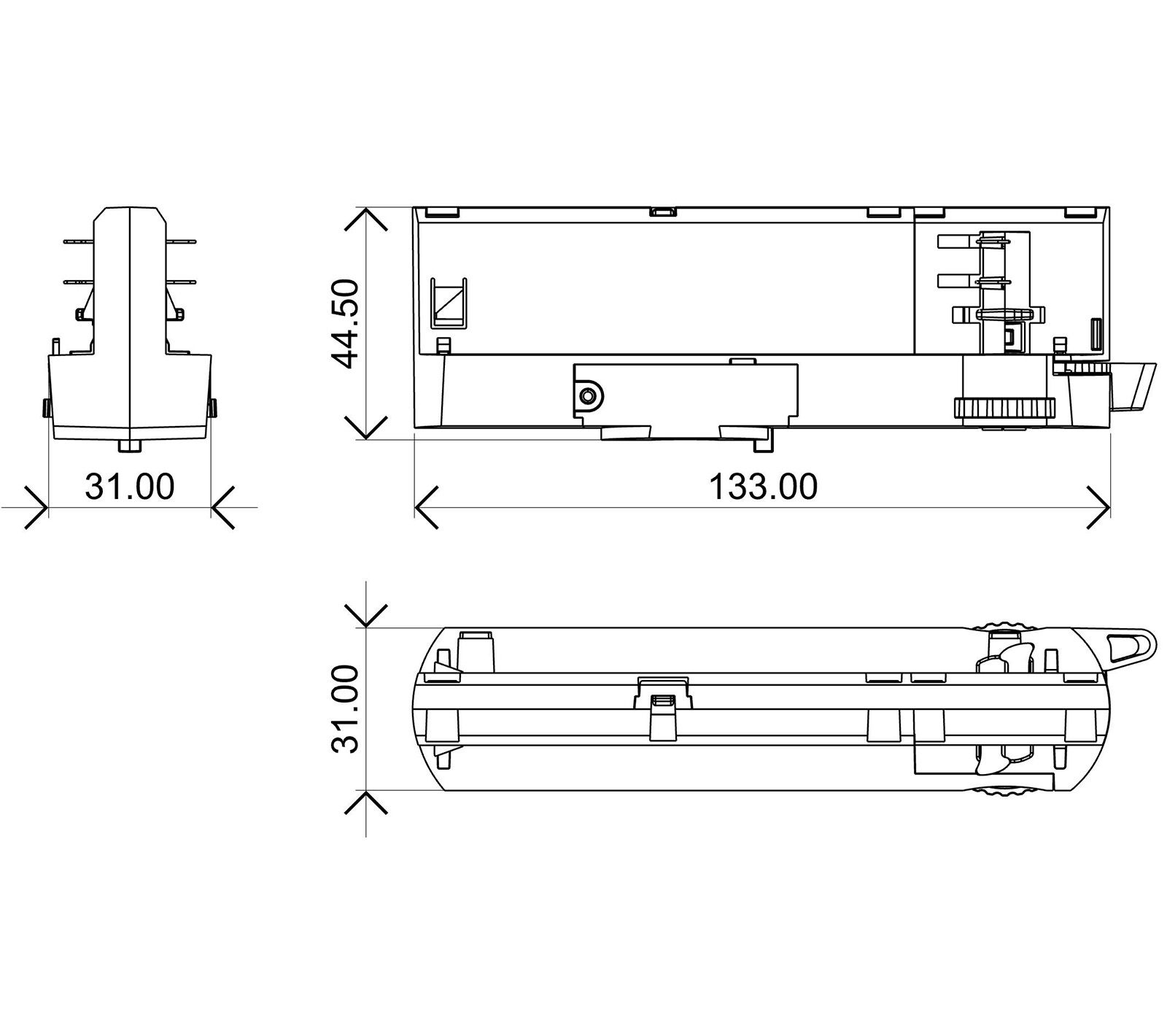

2D Line Drawing
Product Image
2D Line Drawing
40W | 300-1050mA

FDS-40-1050 LD2 PRO

Product Description:

· For luminaries of protection Class II,SELV, Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：89.5%

· Adjustable Output Current with dip-switch

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FDS-40-1050 LD2 PRO40W220-240VAC300-1050mA9-40V89.5%0.95133*31*44.5mm


FDS-40-1050 LD2 PRO spec REV C
