Home / Products / Track Drivers / ON/OFF / Three Phases / FDS-40-1050 CCT LD2 PRO

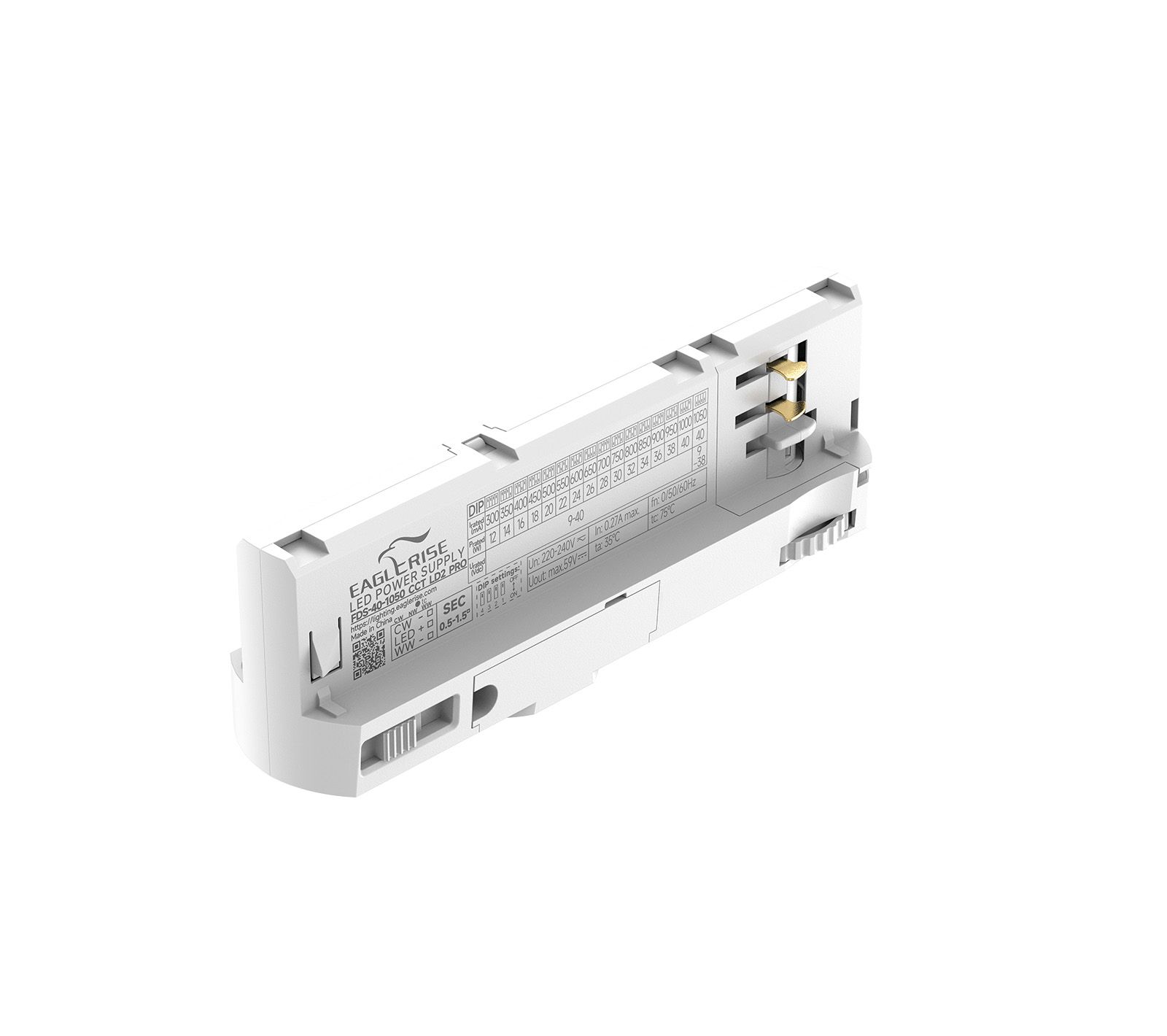

Product Image

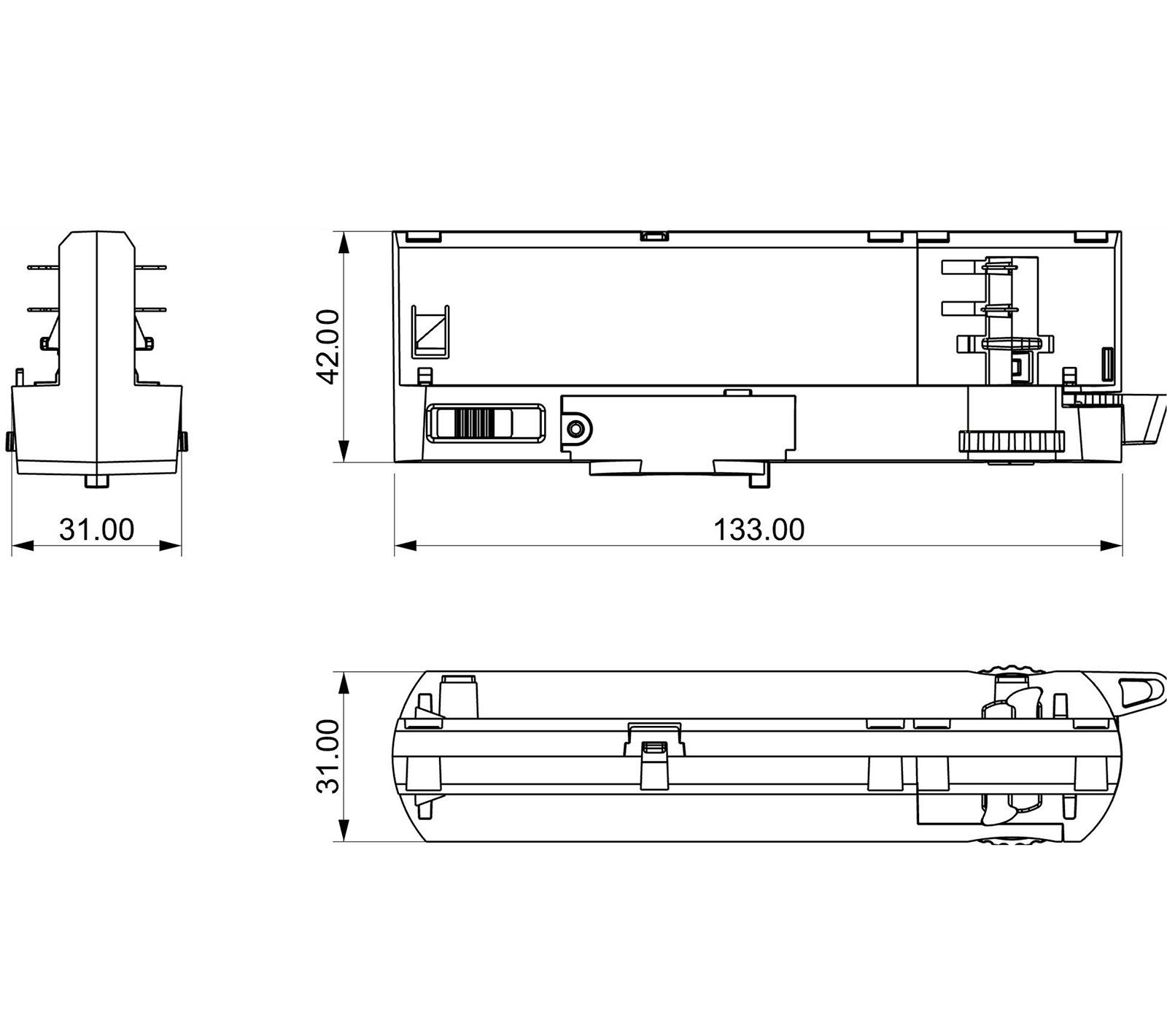

2D Line Drawing
Product Image
2D Line Drawing
40W | 300-1050mA

FDS-40-1050 CCT LD2 PRO

Product Description:

· For luminaries of protection Class II,SELV, Independent
· Input Voltage 220-240VAC
· Protections: SCP/OLP/OVP/OTP
· Power Factor：0.95
· Efficiency：90%@full load
· Adjustable Output Current with dip-switch
· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FDS-40-1050 CCT LD2 PRO40W220-240VAC300-1050mA9-40V90%0.95133*31*42mm




FDS-40-1050 CCT LD2 PRO spec REV B
Related Products
FDS-40-1050 LD2 PRO
40W | 300-1050mA
FDS-40-1050 LD2 PRO
