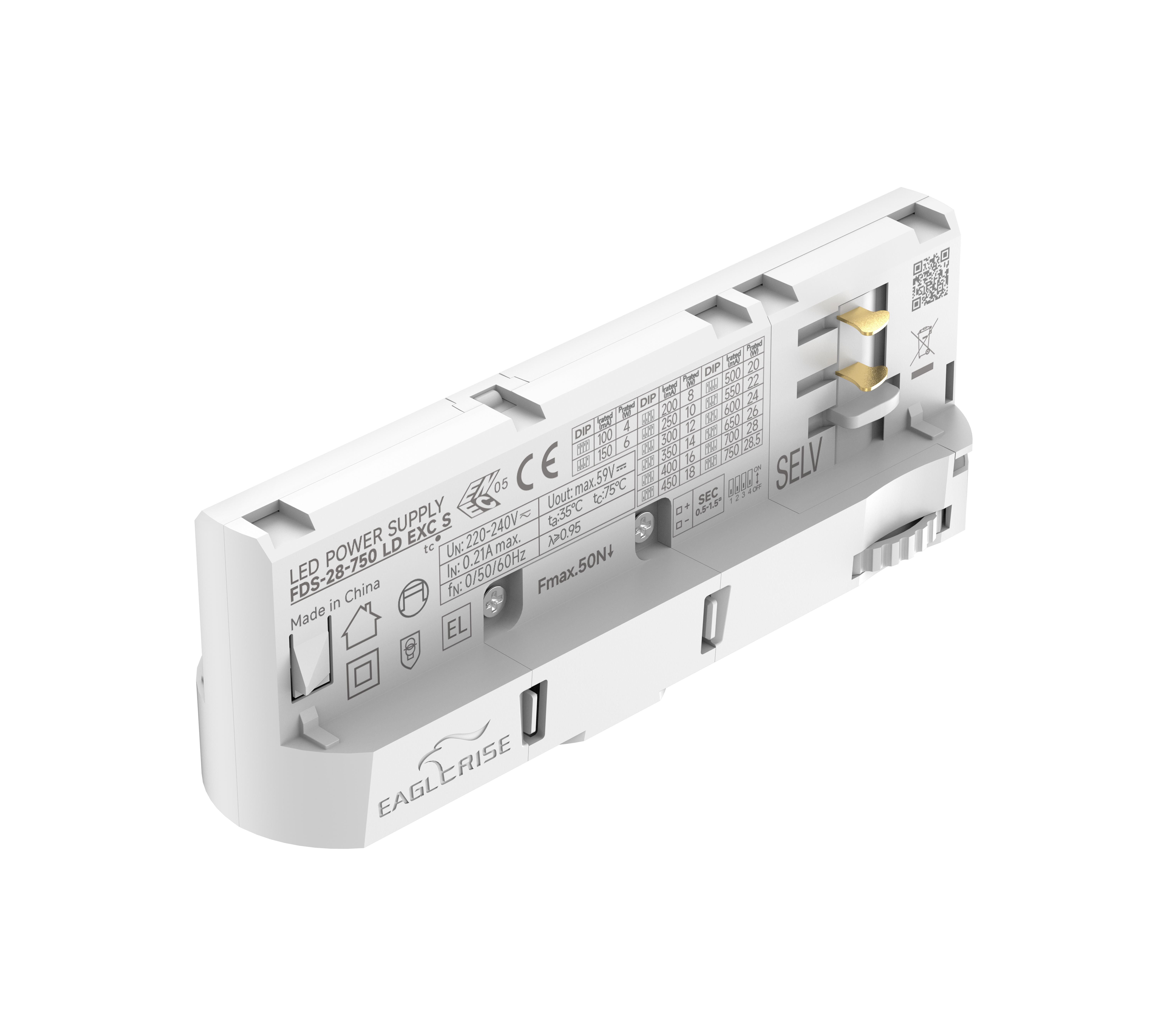

Product Image

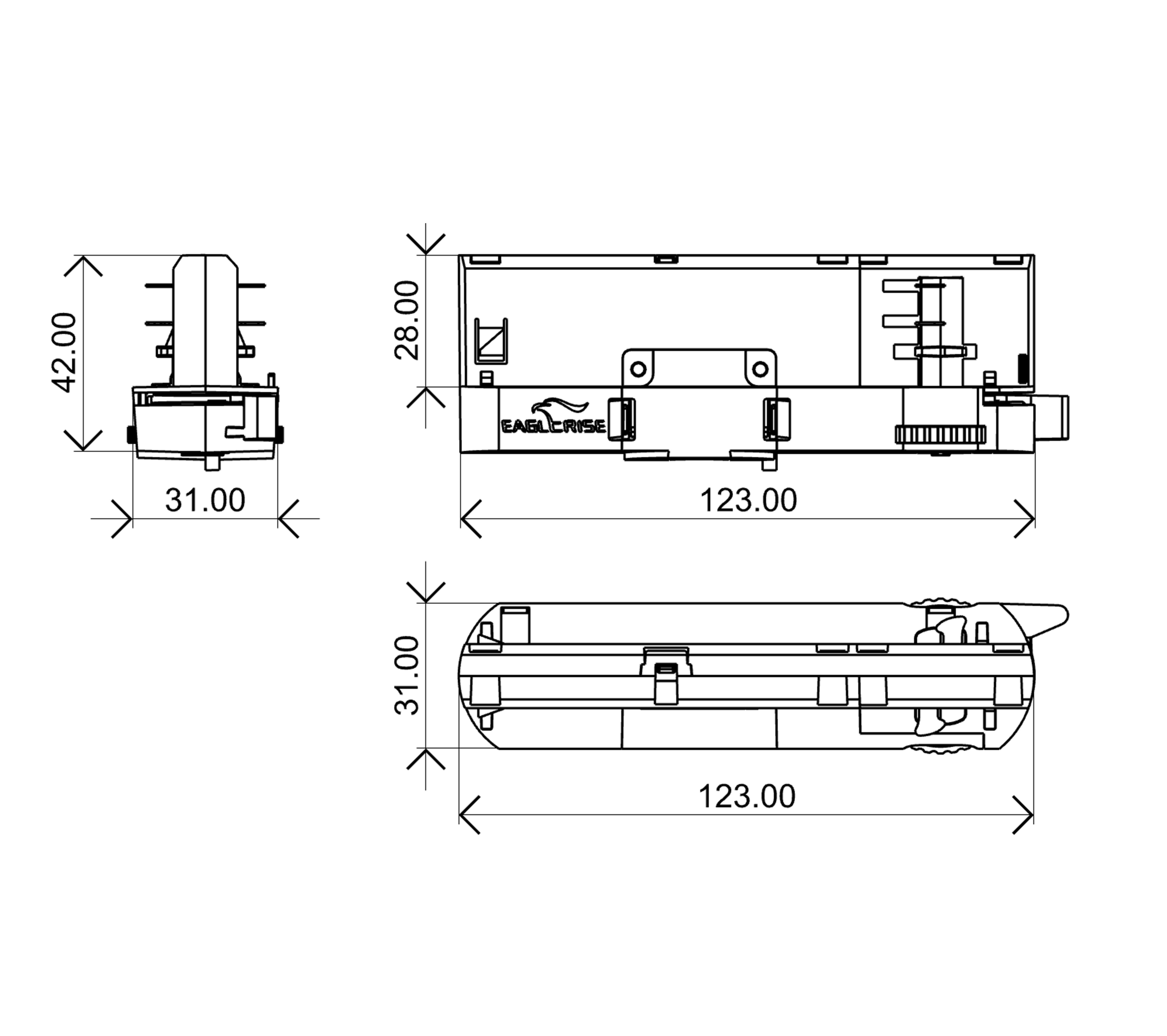

2D Line Drawing
Product Image
2D Line Drawing
28W | 100-750mA

FDS-28-750 LD EXC S

Product Description:

· For luminaries of protection Class II,SELV

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OTP

· Power Factor：≥0.95@Full Load,230VAC

· Efficiency：88%

· Adjustable Output Current withdip-switch

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FDS-28-750 LD EXC S28W220-240VAC100-750mA10-40V88%0.95123*31*42mm


FDS-28-750 LD EXC S spec REV A
Download All Files
