21W | 350-500mA

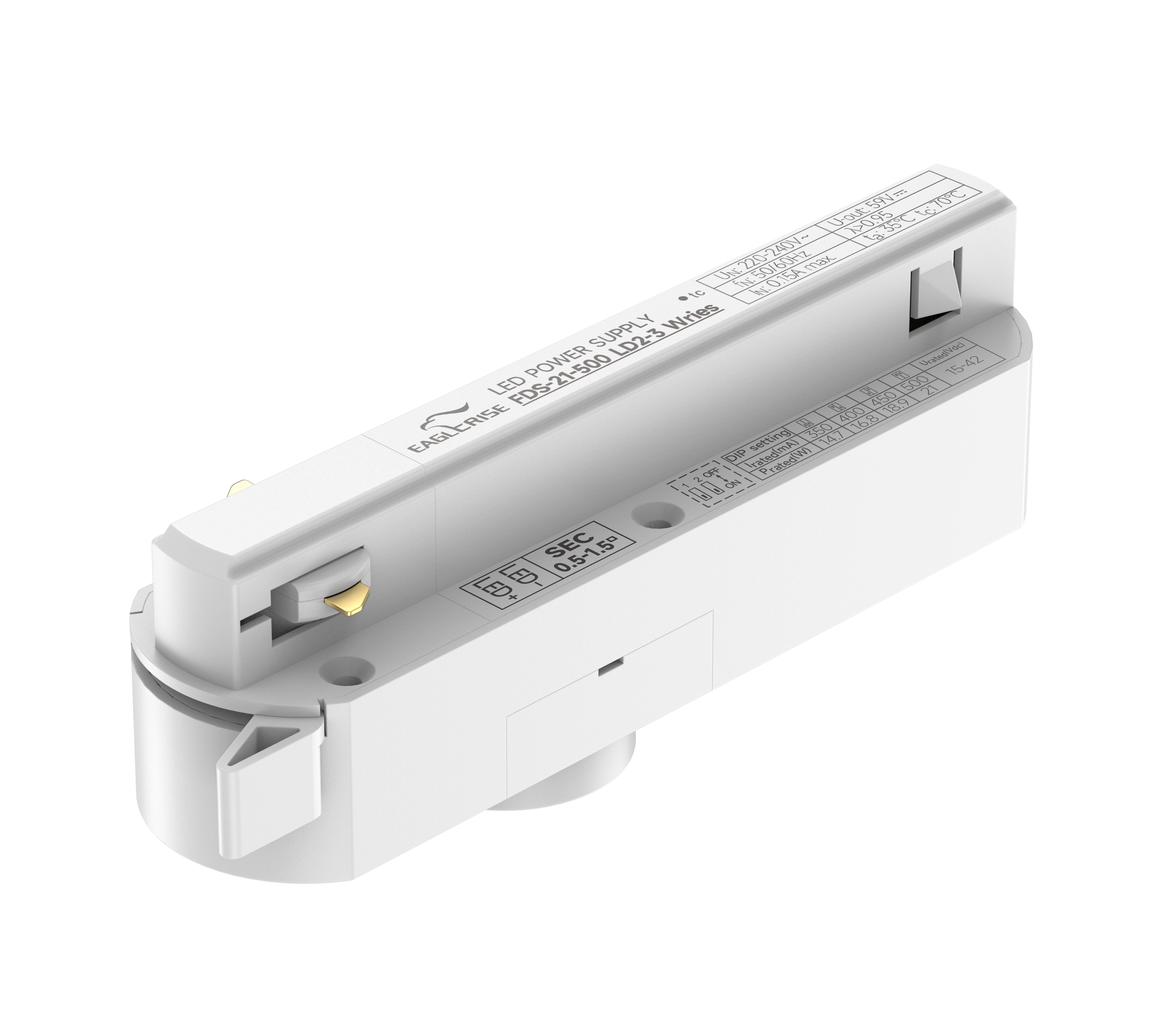

FDS-21-500 LD2-3 Wires

Product Description:

· For luminaries of protection Class II,SELV

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor :0.95

· Efficiency :88%

· Adjustable Output Current withdip-switch

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FDS-21-500 LD2-3 Wires21W220-240VAC350-500mA15-42V88%0.95130*34*45.5mm


FDS-21-500 LD2-3 Wires spec REV B
