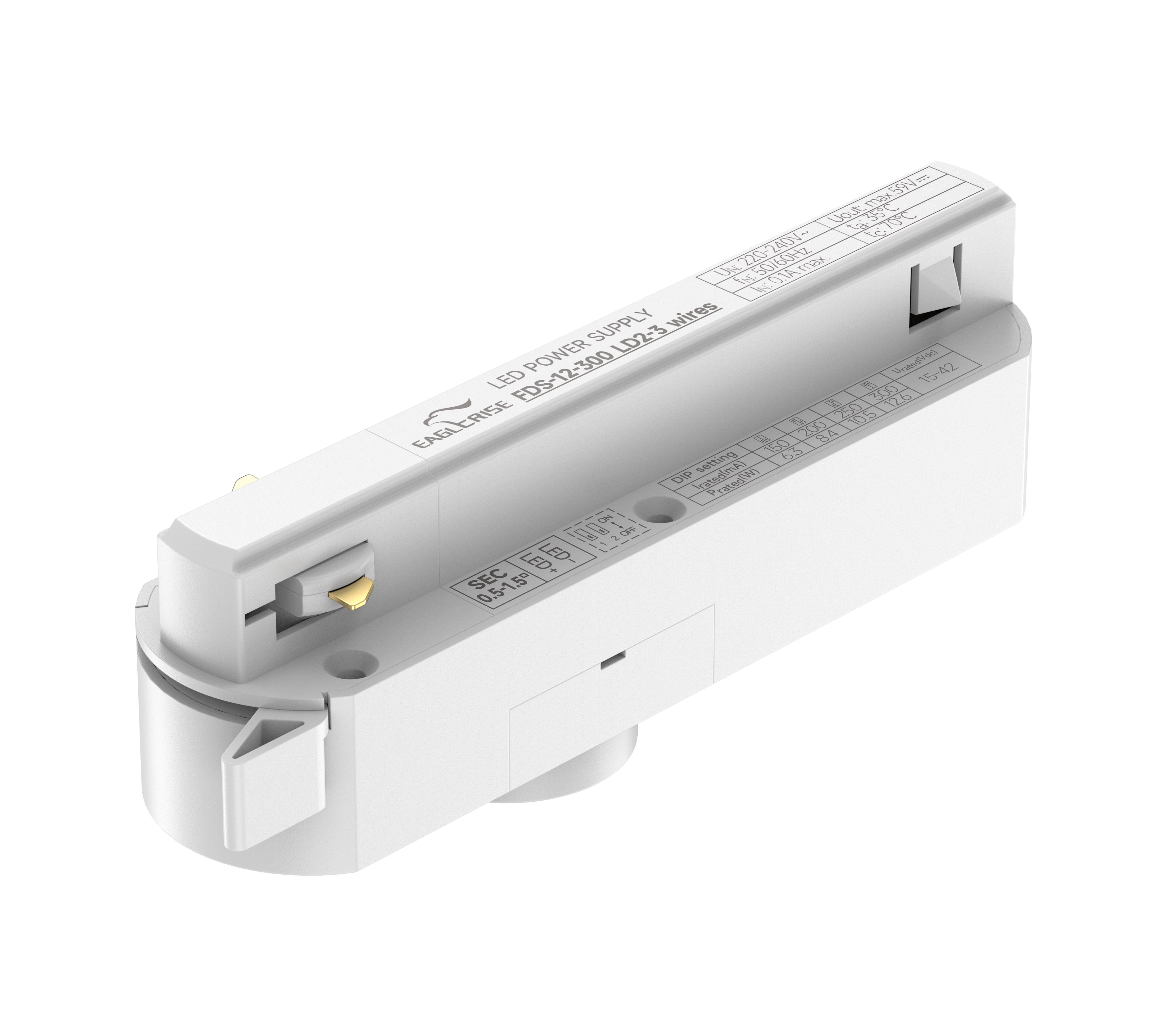

Product Image
2D Line Drawing
Product Image
2D Line Drawing
12W | 150-300mA

FDS-12-300 LD2-3 Wires

Product Description:

· For luminaries of protection Class II,SELV

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor :0.9C

· Efficiency :85%

· Adjustable Output Current withdip-switch

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FDS-12-300 LD2-3 Wires12W220-240VAC150-300mA15-42V85%0.95130*34*45.5mm



FDS-12-300 LD2-3 Wires spec REV B
