Home / Products / VMS-320-XX IP67 L EXC

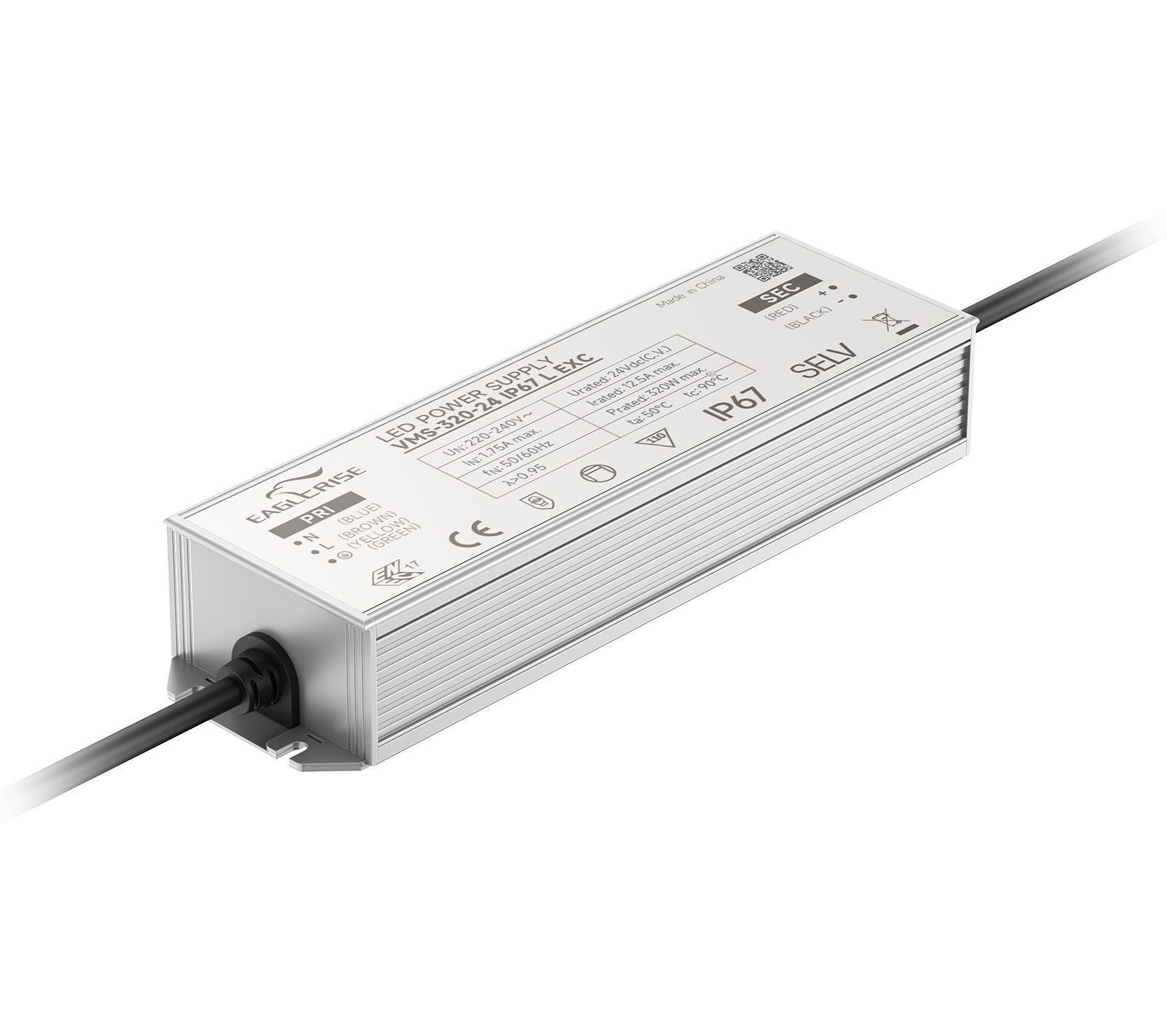

Product Image

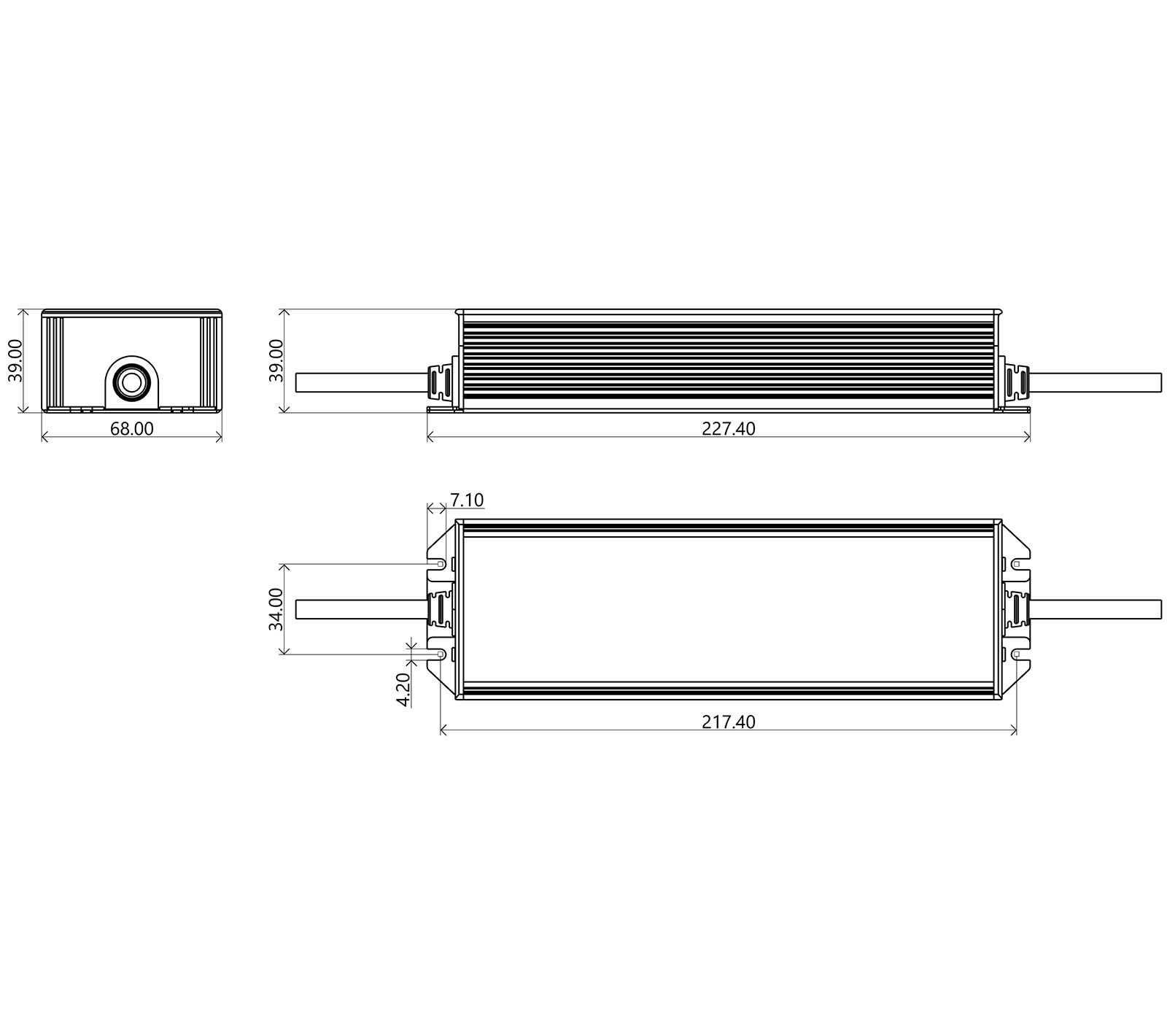

2D Line Drawing
Product Image
2D Line Drawing
320W | 24V/ 36V/ 42V/ 48V

VMS-320-XX IP67 L EXC

Product Description:

· High efficiency up to 93%

· All-Around Protection: OLP, SCP,OVP,OTP

· Waterproof(IP67) and Dry/Damp/Wet Location

· Input Surge Protection: 4kV line-line 6kV line-ground

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
VMS-320-24 IP67 L EXC320W220-240VAC0-13.3A24V92%0.95227*68*39mm
VMS-320-36 IP67 L EXC320W220-240VAC0-8.89A36V93%0.95227*68*39mm
VMS-320-42 IP67 L EXC320W220-240VAC0-7.62A42V93%0.95227*68*39mm
VMS-320-48 IP67 L EXC320W220-240VAC0-6.67A48V93%0.95227*68*39mm


VMS-320-XX IP67 L EXC spec REV D
