Home / Products / LS-12-XXX ON/OFF SI E
Product Image
2D Line Drawing
Product Image
2D Line Drawing
12W | 250-350mA

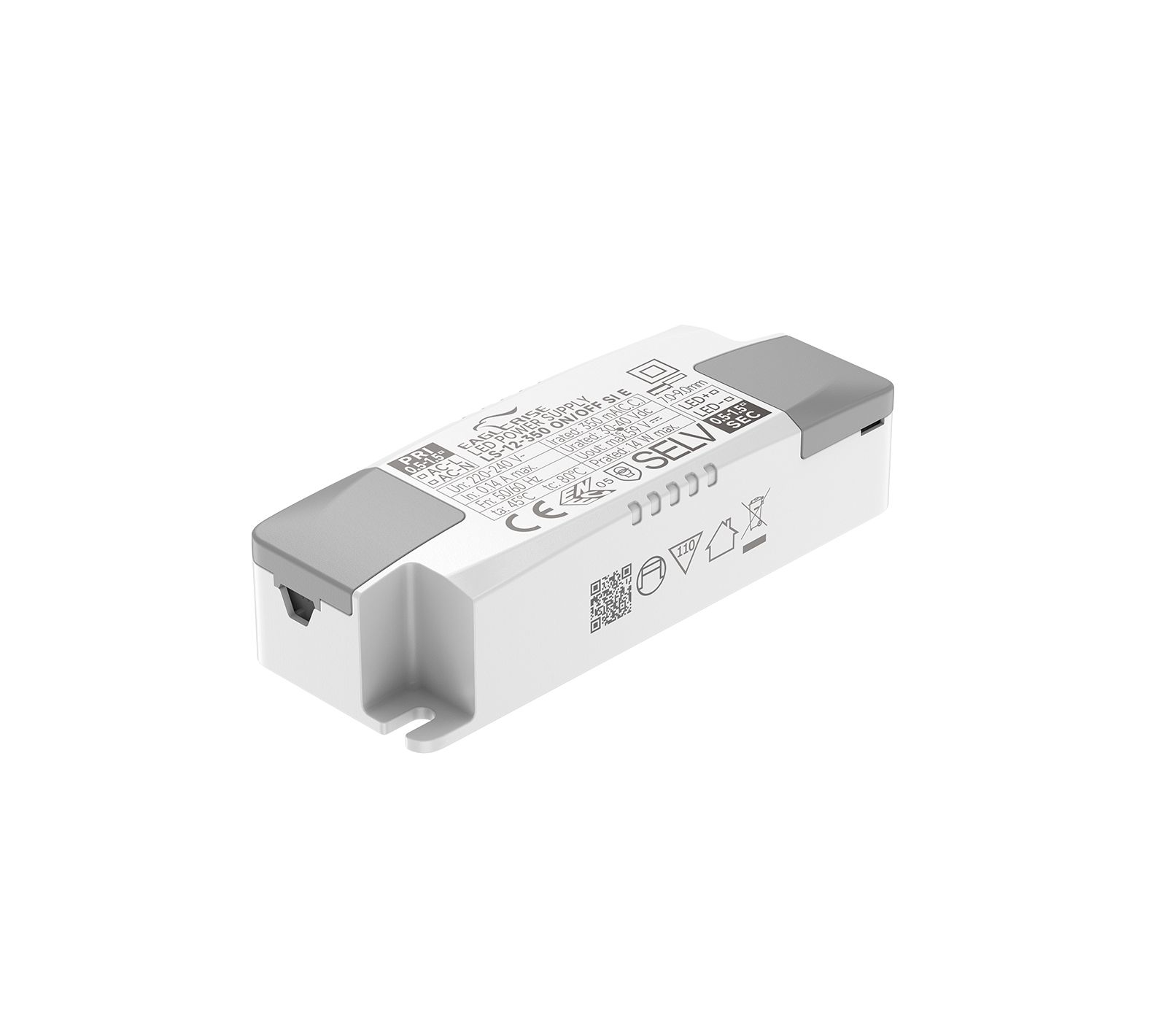

LS-12-XXX ON/OFF SI E

Product Description:

· For luminaries of protection Class II， SELV，Independent

· Input Voltage 220-240VAC

· Protections: OLP/OVP/SCP/OTP

· Power Factor：0.5

· Efficiency：>83%

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-12-250 ON/OFF SI E12W220-240VAC250mA30-40V83%0.592*36*25mm
LS-12-280 ON/OFF SI E12W220-240VAC280mA30-40V83%0.592*36*25mm
LS-12-300 ON/OFF SI E12W220-240VAC300mA30-40V83%0.592*36*25mm
LS-12-350 ON/OFF SI E12W220-240VAC350mA30-40V83%0.592*36*25mm



LS-12-XXX ON OFF SI E spec REV B
Download All Files
Tags:
ON/OFF
Related Products

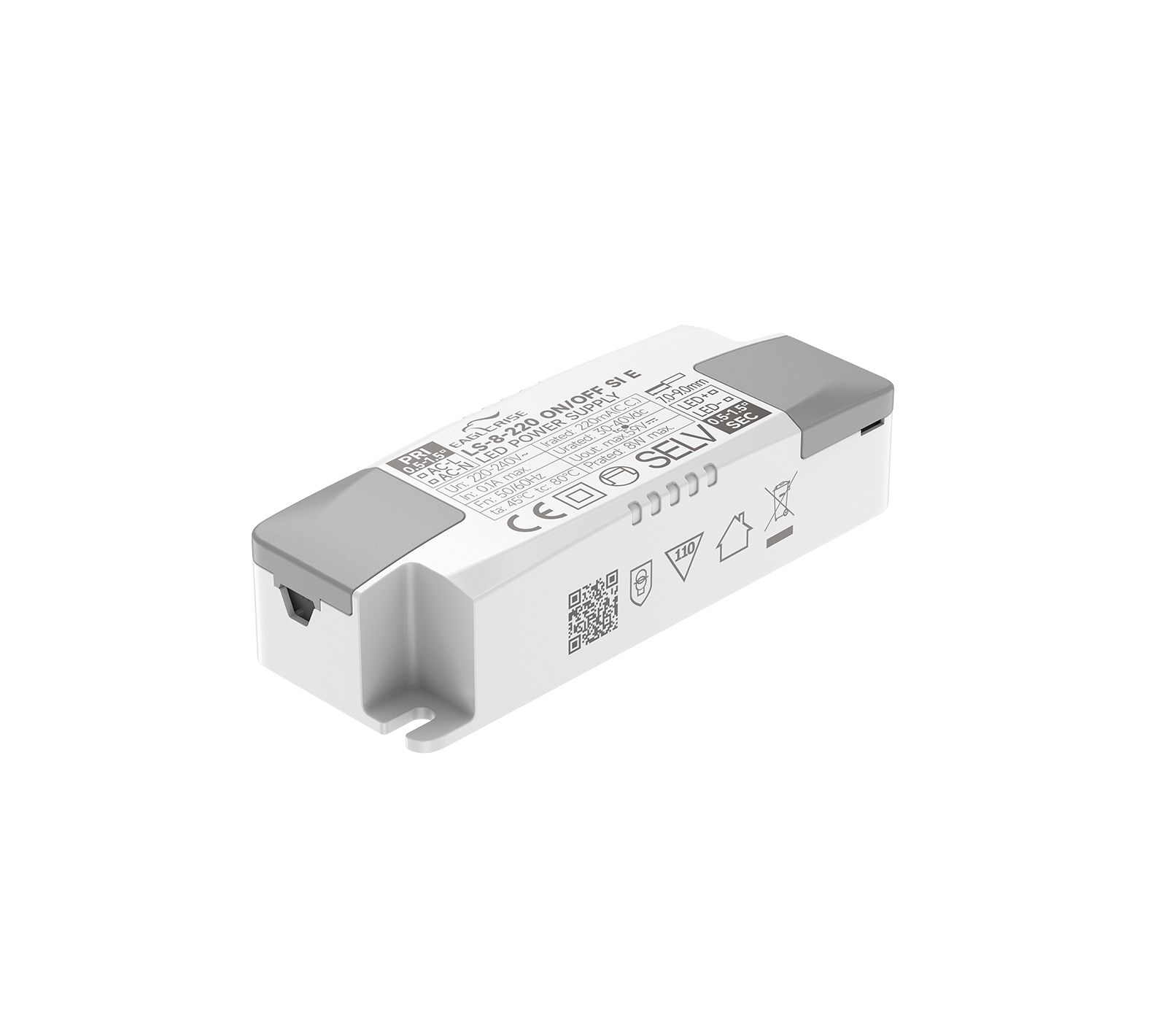

LS-8-XXX ON/OFF SI E
