VMS-75-XX IP67 L EXC

Product Description:

· High efficiency up to 88%

· Built-in active PFC function

· All-Around Protection: OLP, SCP,OVP,OTP

· Waterproof(IP67) and Dry/Damp/Wet Location

· Input Surge Protection:4kV line-line 6kV line-ground

· Compact Metal Case, Free Air Convection

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand

Inquire Now

Models

Datasheet

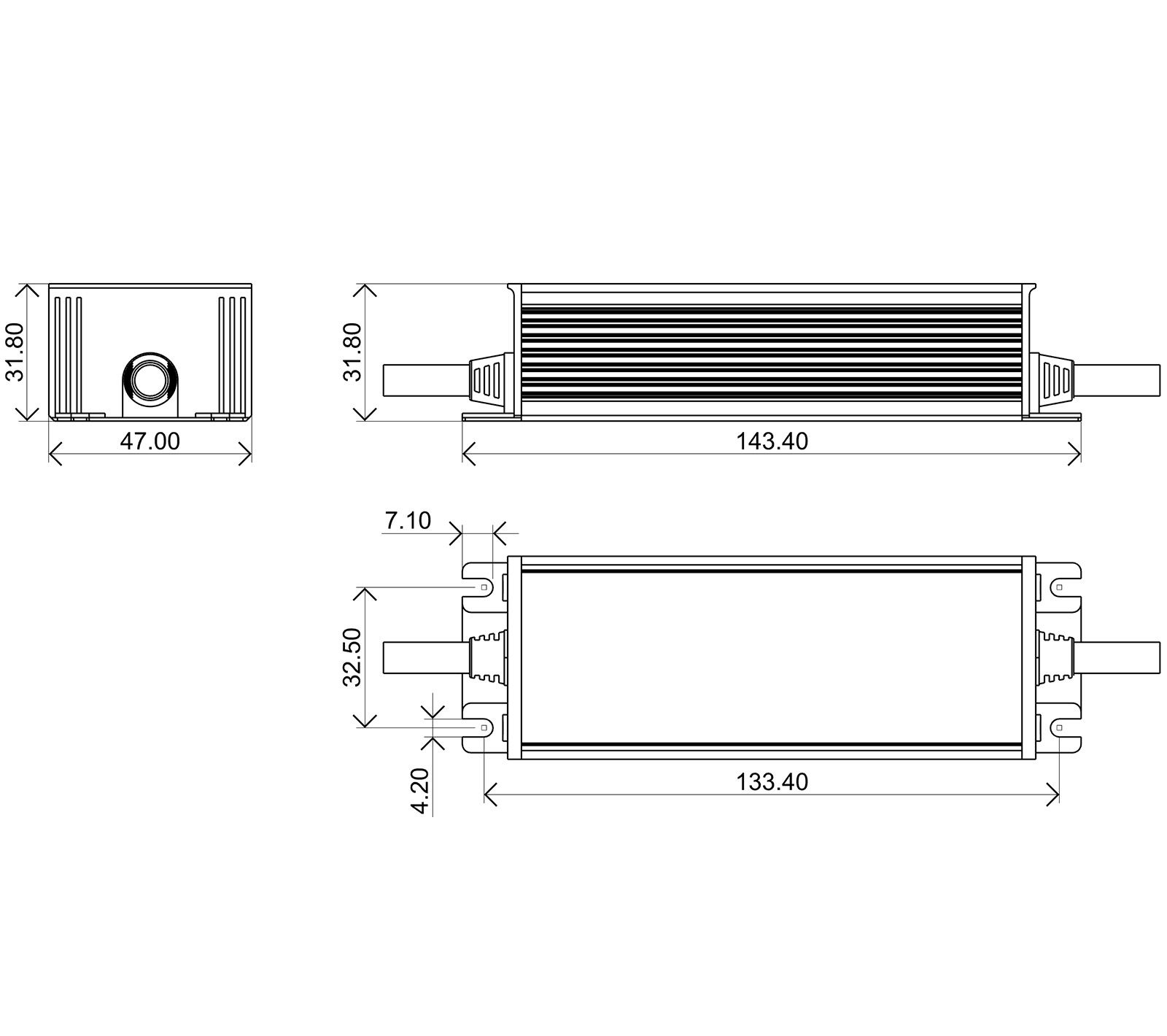

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
VMS-75-12 IP67 L EXC	75W	220-240VAC	0-6.25A	12V	88%	0.95	1434731mm
VMS-75-24 IP67 L EXC	75W	220-240VAC	0-3.125A	24V	88%	0.95	1434731mm
VMS-75-36 IP67 L EXC	75W	220-240VAC	0-2.08A	36V	88%	0.95	1434731mm
VMS-75-42 IP67 L EXC	75W	220-240VAC	0-1.78A	42V	88%	0.95	1434731mm
VMS-75-48 IP67 L EXC	75W	220-240VAC	0-1.56A	48V	88%	0.95	1434731mm

VMS-75-XX IP67 L EXC spec REV B
