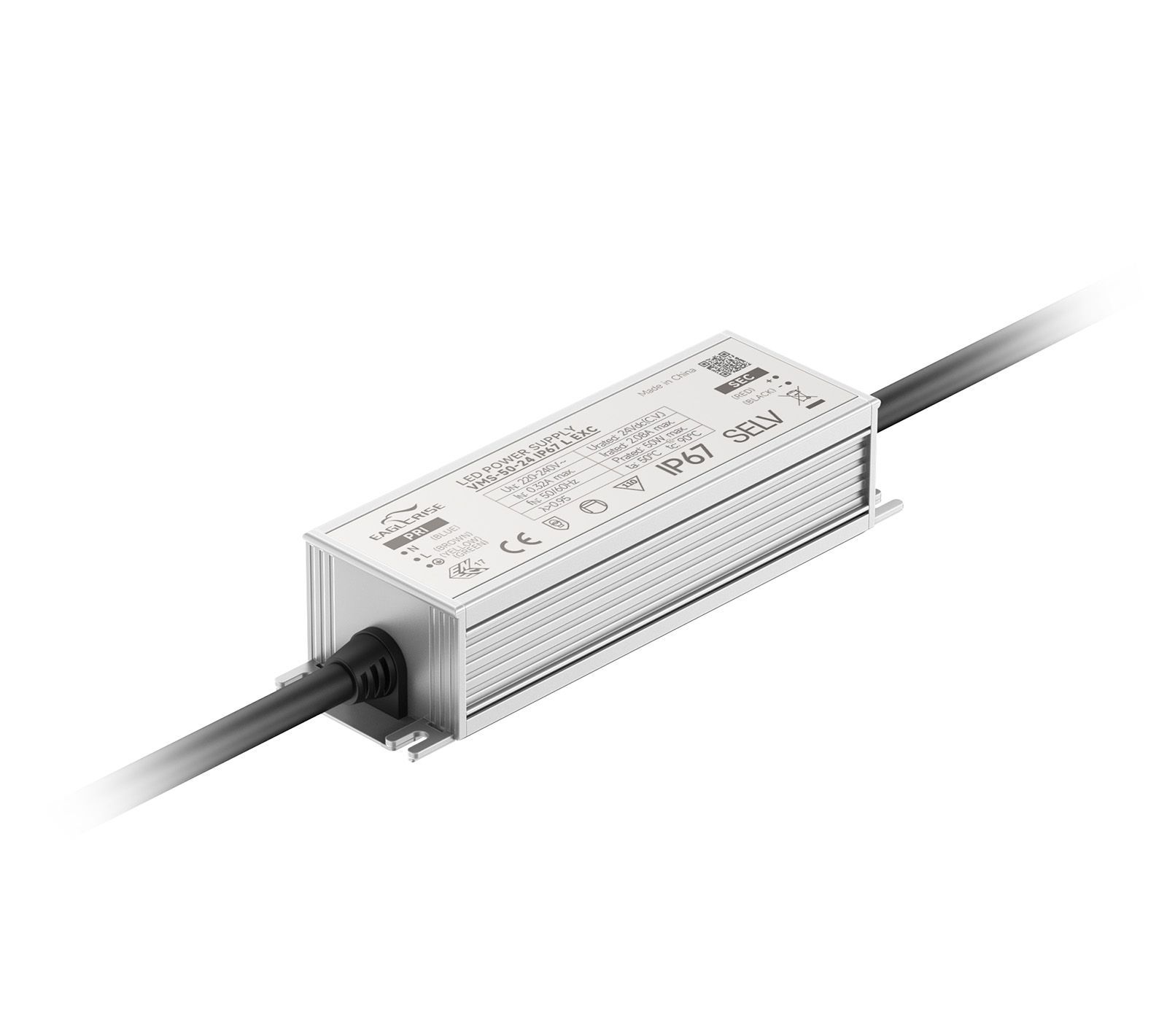

Product Image

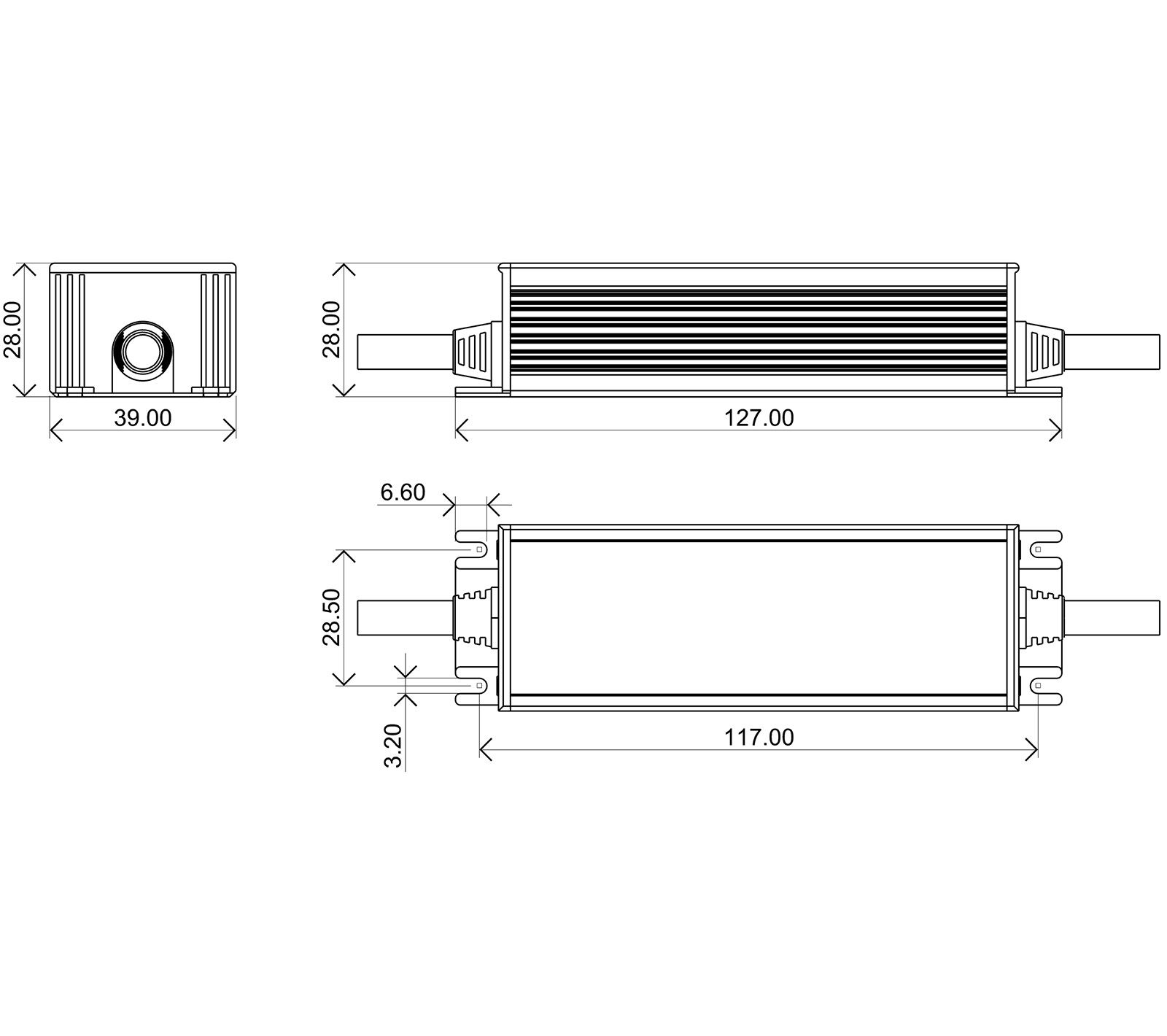

2D Line Drawing
Product Image
2D Line Drawing
50W | 12V/ 24V/ 36V/ 42V/ 48V

VMS-50-XX IP67 L EXC

Product Description:

· High efficiency up to 87%

· Built-in active PFC function

· All-Around Protection: OLP, SCP,OVP,OTP

· Waterproof(IP67) and Dry/Damp/Wet Location

· Input Surge Protection:4kV line-line 6kV line-ground

· Compact Metal Case, Free Air Convection

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
VMS-50-12 IP67 L EXC50W220-240VAC0-4.17A12V87%0.95127*39*28mm
VMS-50-24 IP67 L EXC50W220-240VAC0-2.08A24V87%0.95127*39*28mm
VMS-50-36 IP67 L EXC50W220-240VAC0-1.39A36V87%0.95127*39*28mm
VMS-50-42 IP67 L EXC50W220-240VAC0-1.19A42V87%0.95127*39*28mm
VMS-50-48 IP67 L EXC50W220-240VAC0-1.04A48V87%0.95127*39*28mm
