Home / Products / Outdoor Drivers / ON/ OFF / VMS-250-XX IP67 L EXC

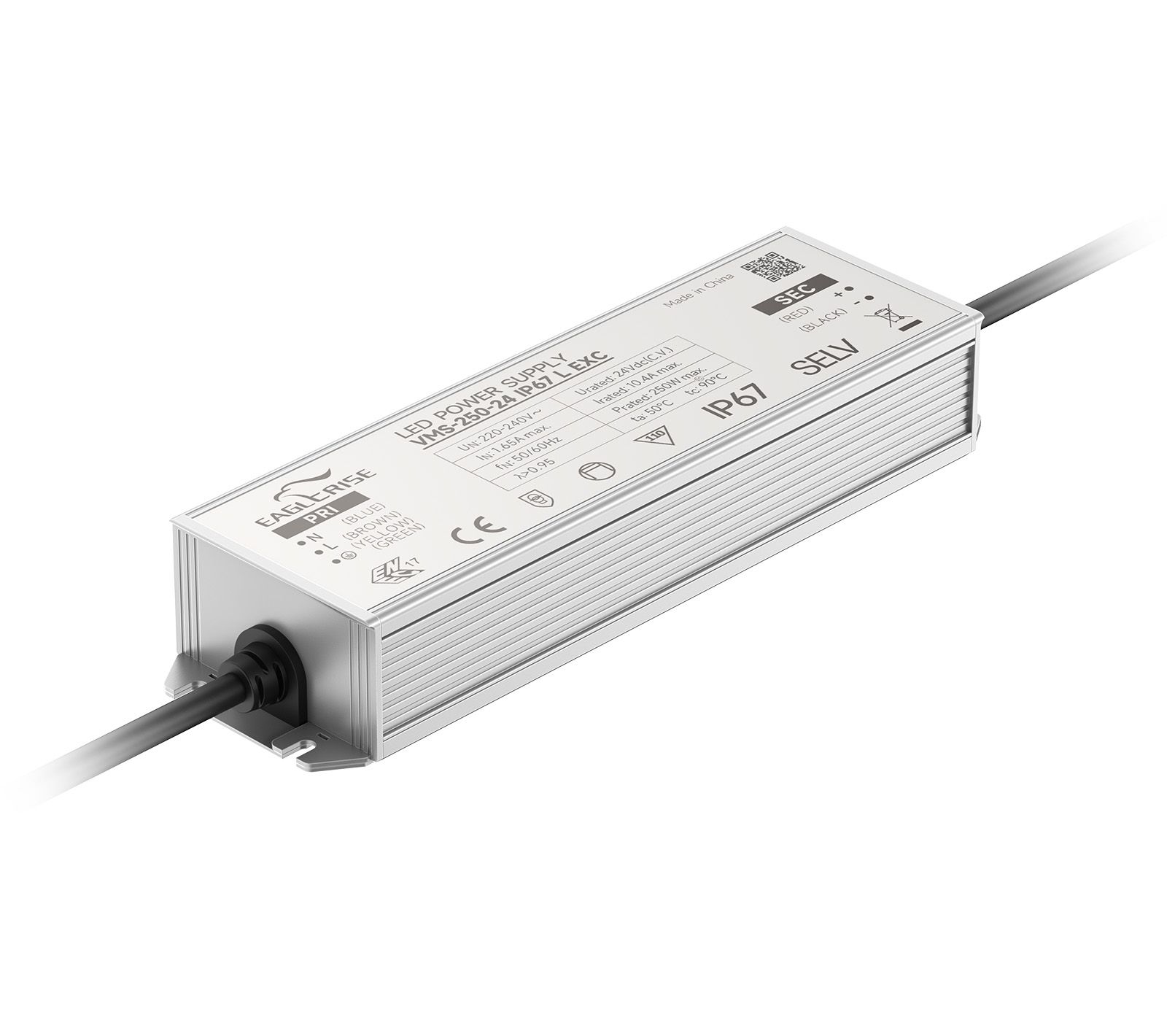

Product Image

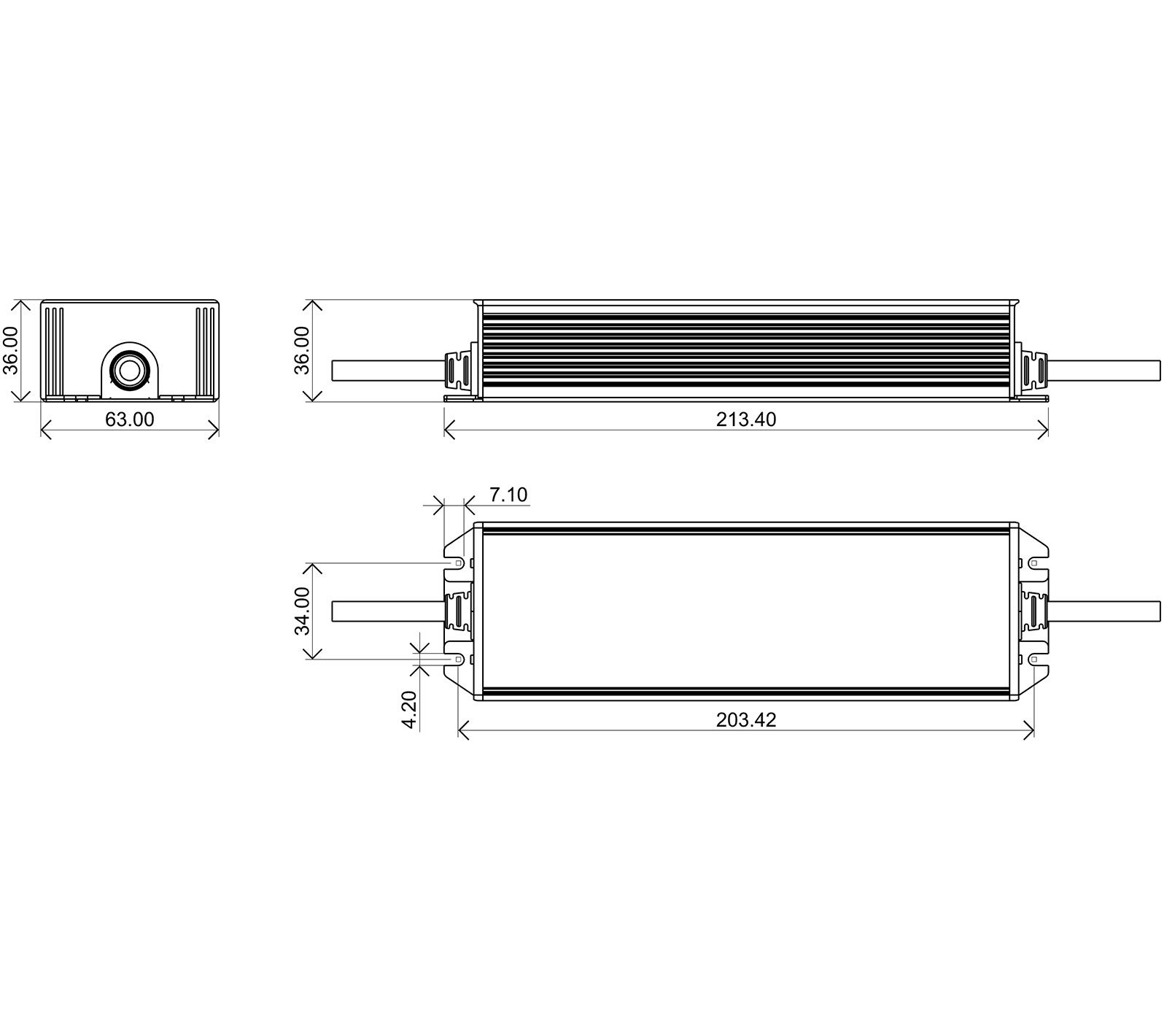

2D Line Drawing
Product Image
2D Line Drawing
250W | 24V/ 36V/ 42V /48V

VMS-250-XX IP67 L EXC

Product Description:

· High efficiency up to 93%

· Built-in active PFC function

· All-Around Protection: OLP, SCP,OLP,OTP

· Waterproof(IP67) and Dry/Damp/Wet Location

· Input Surge Protection:4kV line-line 6kV line-ground

· Compact Metal Case, Free Air Convection

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
VMS-250-24 IP67 L EXC250W220-240VAC0-10.42A24V93%0.95213*63*36mm
VMS-250-36 IP67 L EXC250W220-240VAC0-6.94A36V93%0.95213*63*36mm
VMS-250-42 IP67 L EXC250W220-240VAC0-5.95A42V93%0.95213*63*36mm
VMS-250-48 IP67 L EXC250W220-240VAC0-5.2A48V93%0.95213*63*36mm


VMS-250-XX IP67 L EXC spec REV B
