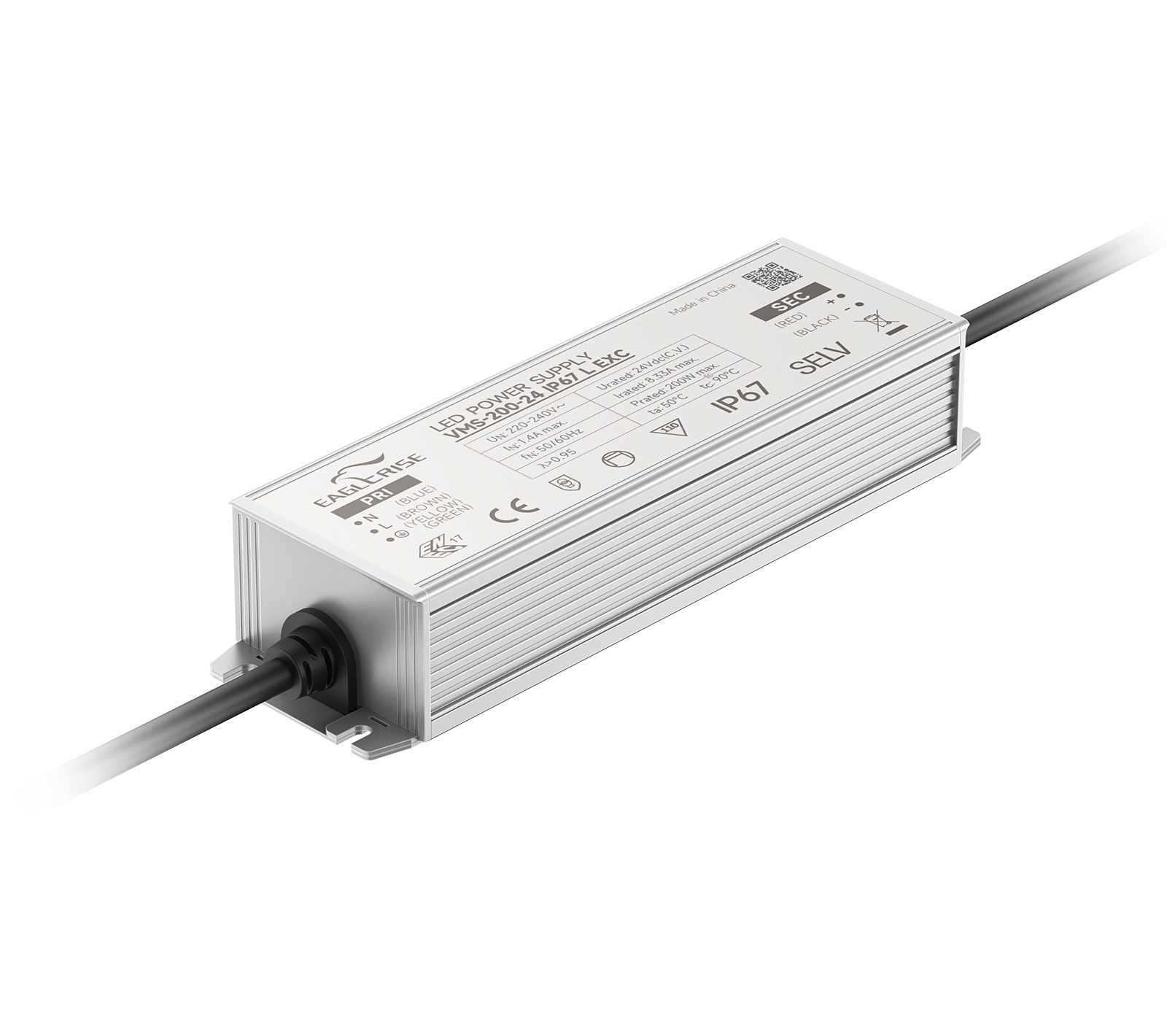

Product Image

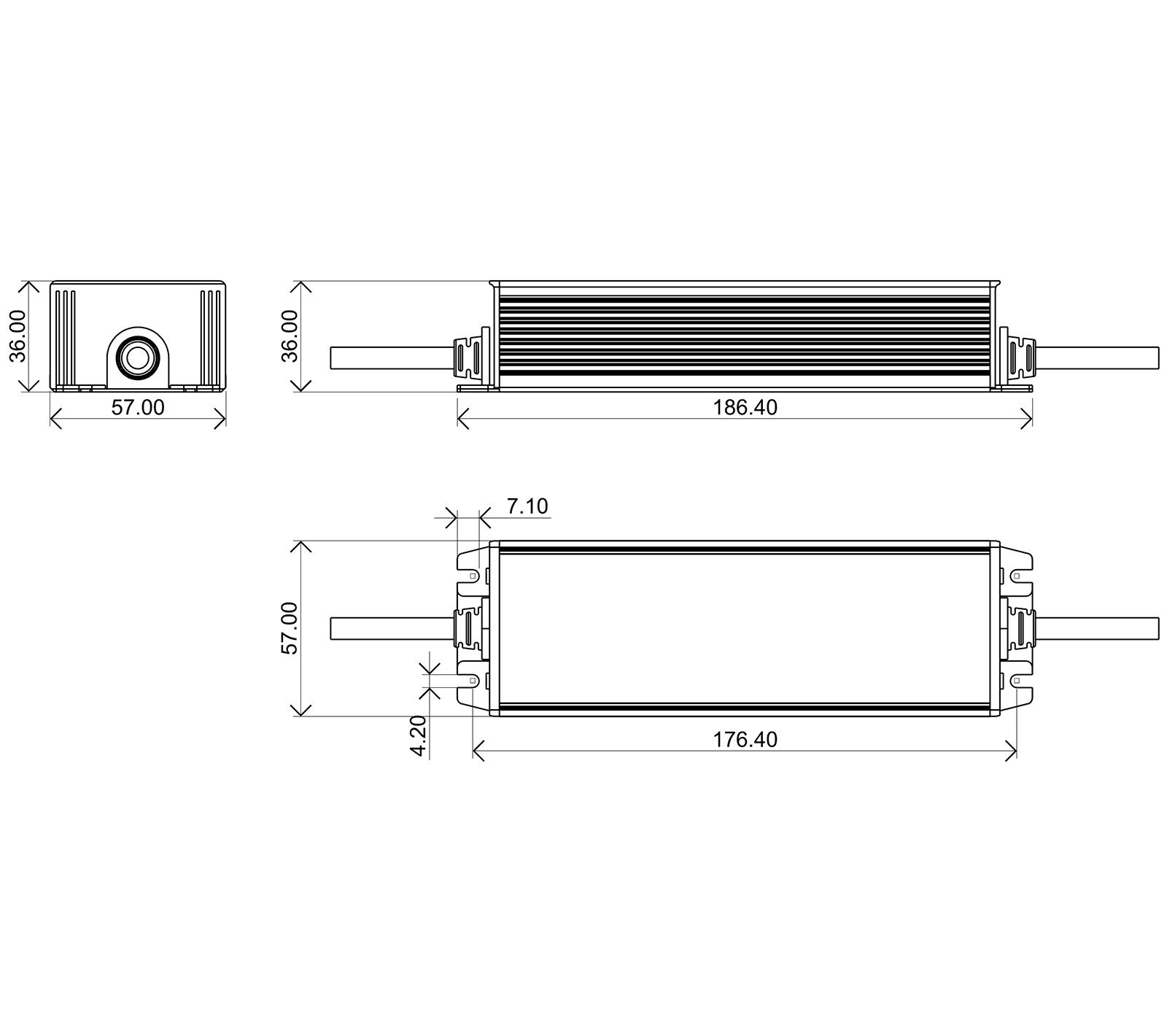

2D Line Drawing
Product Image

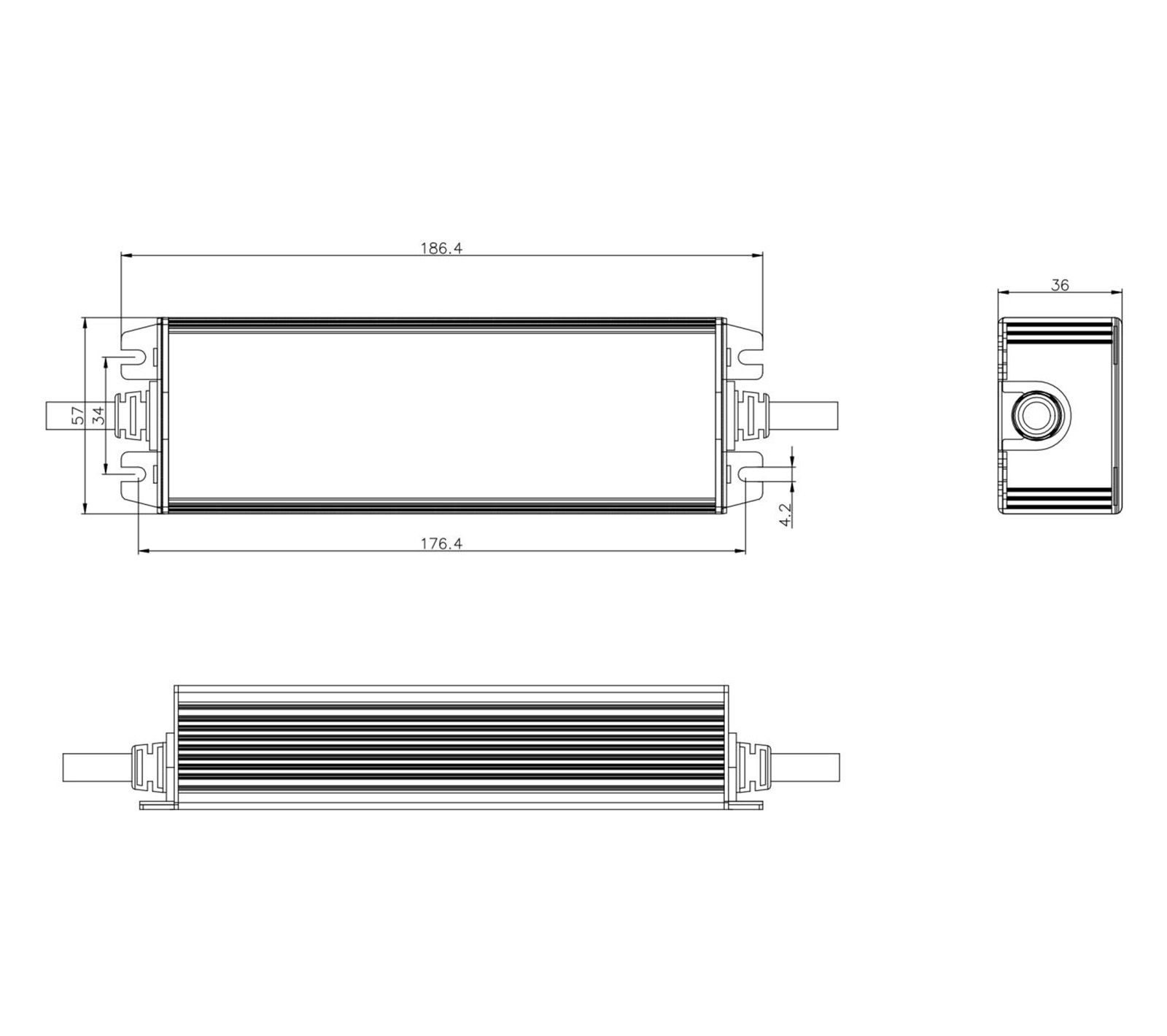

2D Line Drawing
200W | 12V/ 24V/ 36V/ 42V /48V

VMS-200-XX IP67 L EXC

Product Description:

· High efficiency up to 93%

· Built-in active PFC function

· All-Around Protection: OLP, SCP,OLP,OTP

· Waterproof(IP67) and Dry/Damp/Wet Location

· Input Surge Protection:4kV line-line 6kV line-ground

· Compact Metal Case, Free Air Convection

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
VMS-200-12 IP67 L EXC200W220-240VAC0-15A12V90%0.95186*57*36mm
VMS-200-24 IP67 L EXC200W220-240VAC0-8.33A24V92%0.95186*57*36mm
VMS-200-36 IP67 L EXC200W220-240VAC0-5.56A36V92%0.95186*57*36mm
VMS-200-42 IP67 L EXC200W220-240VAC0-4.76A42V93%0.95186*57*36mm
VMS-200-48 IP67 L EXC200W220-240VAC0-4.17A48V93%0.95186*57*36mm


VMS-200-XX IP67 L EXC spec REV B
