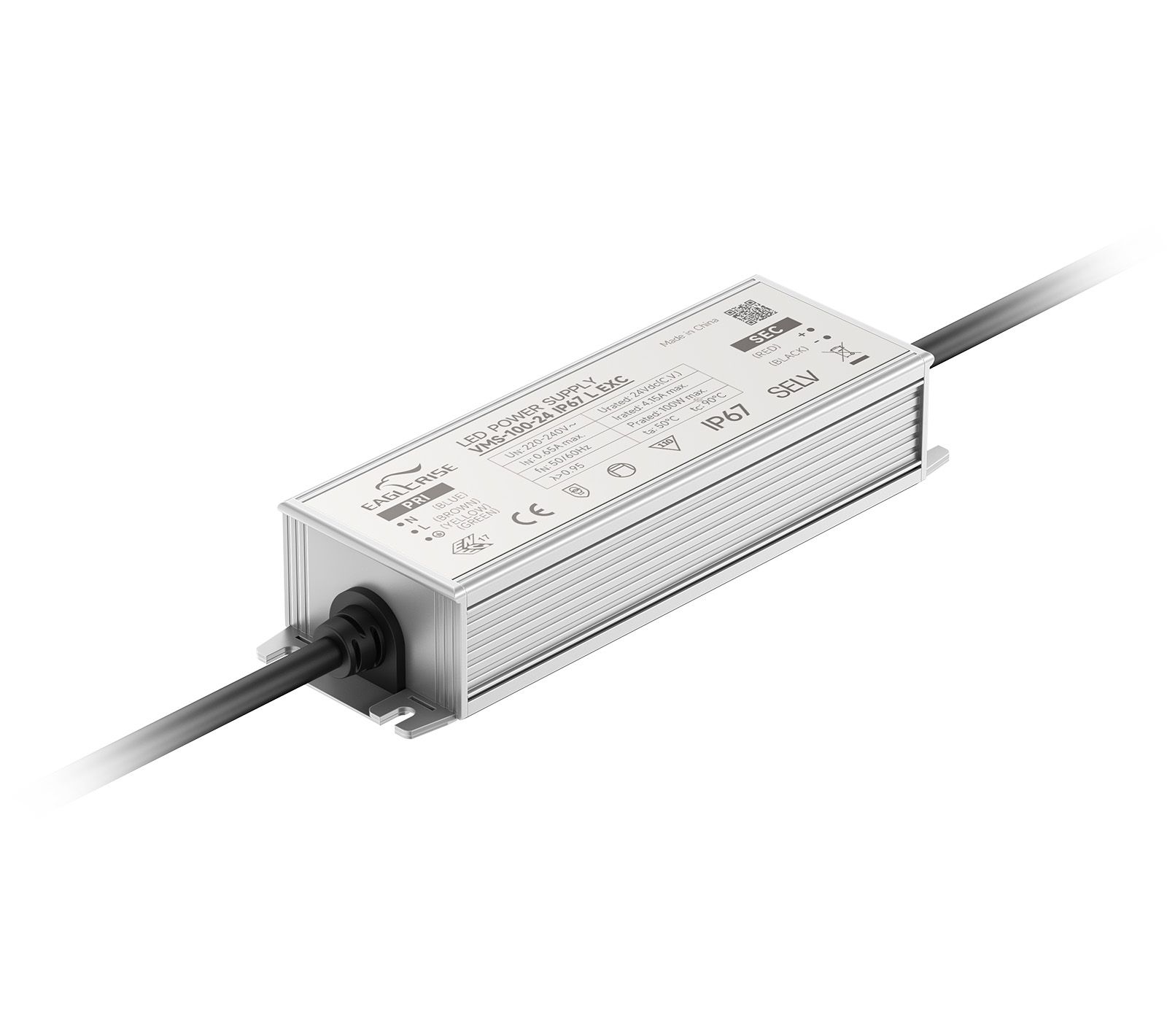

VMS-100-XX IP67 L EXC

Product Description:

· High efficiency up to 92%

· Built-in active PFC function

· All-Around Protection: OLP, SCP,OLP,OTP

· Waterproof(IP67) and Dry/Damp/Wet Location

· Input Surge Protection:4kV line-line 6kV line-ground

· Compact Metal Case, Free Air Convection

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand

Inquire Now

Models

Datasheet

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
VMS-100-12 IP67 L EXC	100W	220-240VAC	0-8.33A	12V	90%	0.95	1645332mm
VMS-100-24 IP67 L EXC	100W	220-240VAC	0-4.17A	24V	90%	0.95	1645332mm
VMS-100-36 IP67 L EXC	100W	220-240VAC	0-2.78A	36V	92%	0.95	1645332mm
VMS-100-42 IP67 L EXC	100W	220-240VAC	0-2.38A	42V	92%	0.95	1645332mm
VMS-100-48 IP67 L EXC	100W	220-240VAC	0-2.085A	48V	92%	0.95	1645332mm

VMS-100-XX IP67 L EXC spec REV B
