Home / Products / Linear Drivers / Non-Isolated / ON/ OFF / FMS-80-550 N-S CCT LD EXC

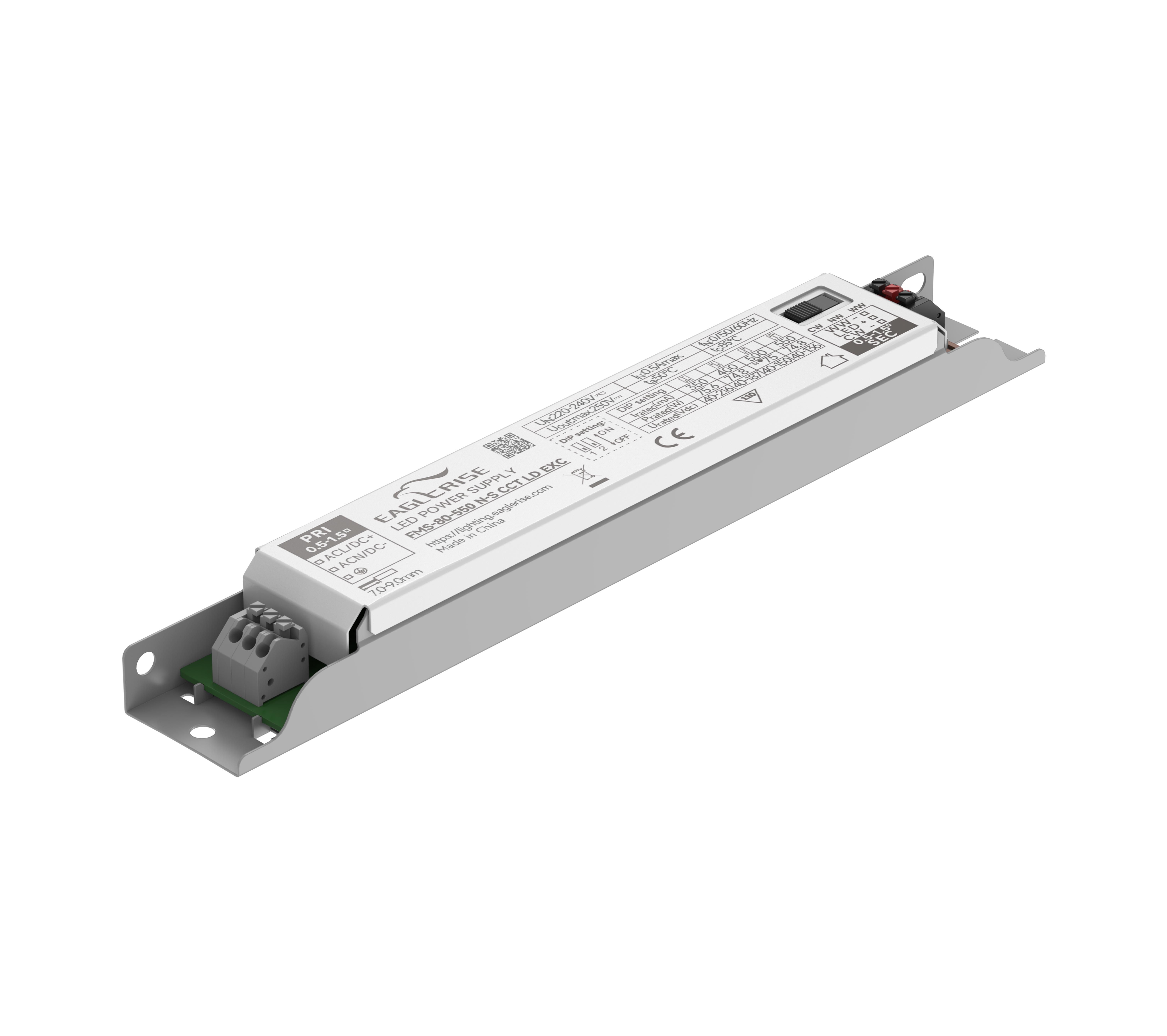

Product Image

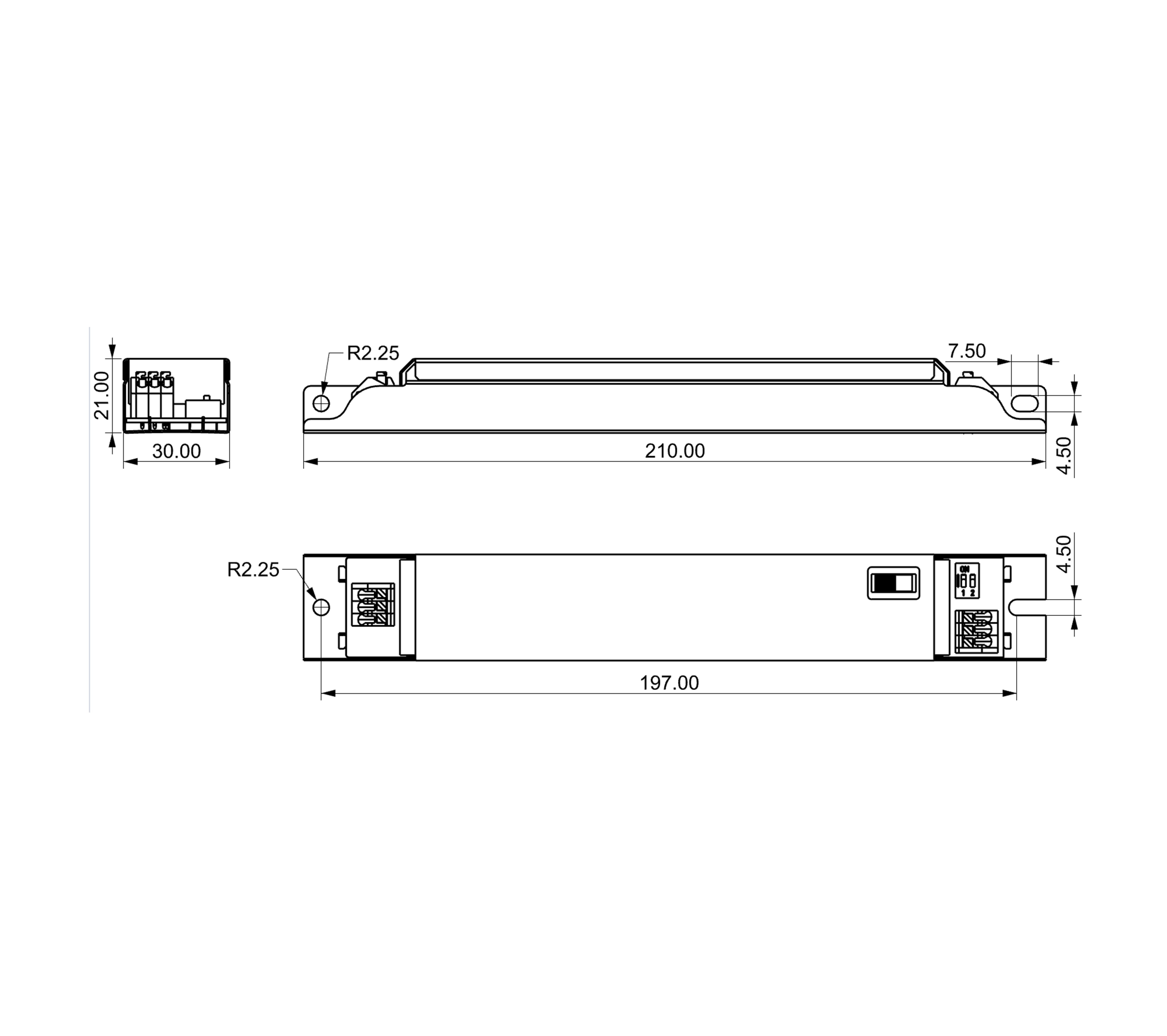

2D Line Drawing
Product Image
2D Line Drawing
80W | 350-550mA

FMS-80-550 N-S CCT LD EXC

Product Description:

· For luminaries of protectionClassI/II ，Non-isolated，Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor：≥0.95(Typ.)

· Efficiency：≥93%(Typ.)

· Adjustable Output Current withdip-switch

· 5 years warranty

· IP20


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FMS-80-550 N-S CCT LD EXC80W220-240VAC350-550mA40-216V93%0.95210*30*21mm



FMS-80-550 N-S CCT LD EXC spec REV A
Download All Files
