FMS-80-350 N-S LD2 E

Product Description:

· For luminaries of protection Class I or II
· Non-isolated，Built-in
· Input Voltage 220-240VAC、176-280VDC
· Protections: SCP/OVP/OLP/OTP
· Power Factor：0.95(Typ.)
· Efficiency ：≥94% (Typ.)
· 5 years warranty
· IP20

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size

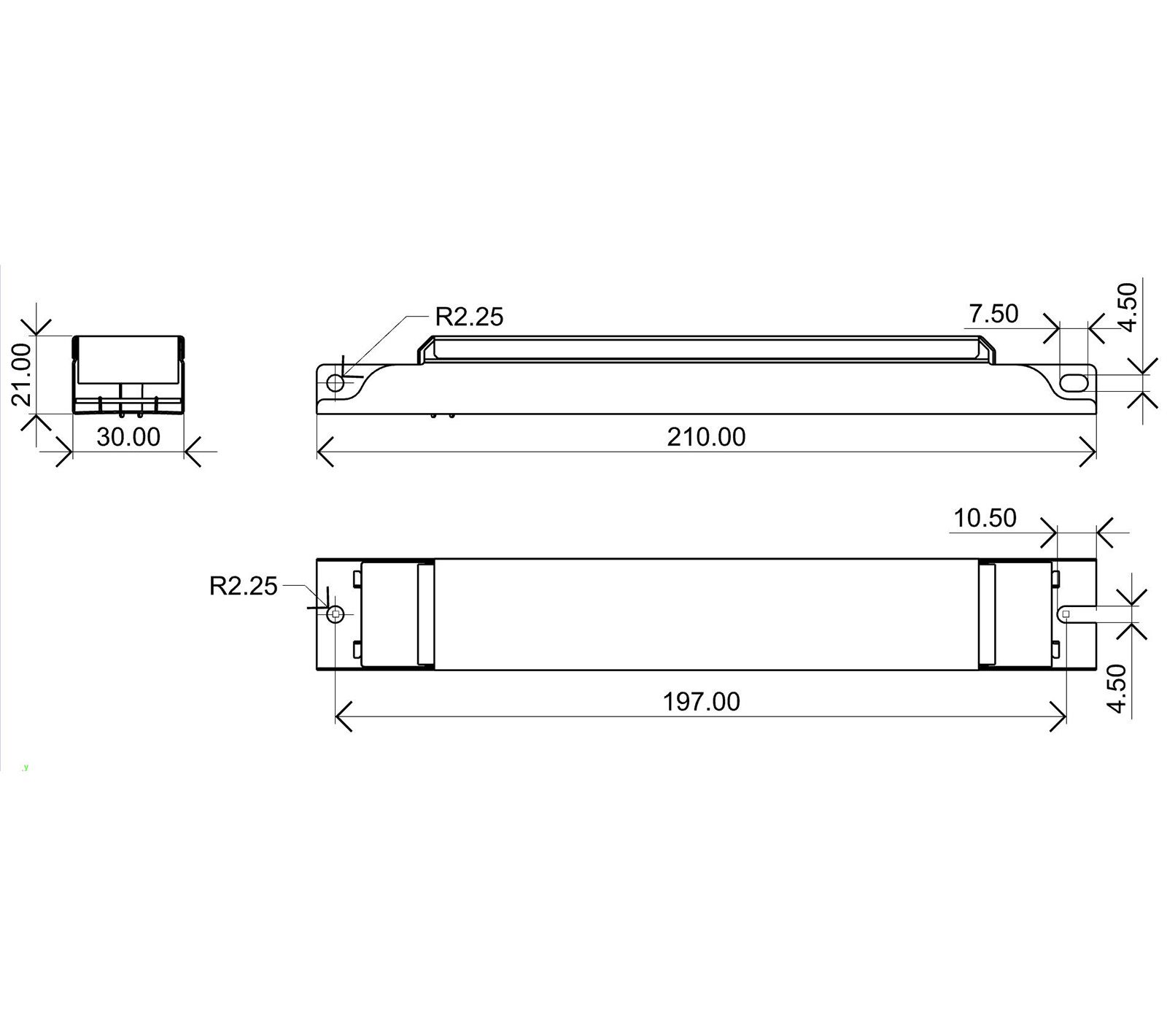

FMS-80-350 N-S LD2 E	80W	220-240VAC	200-350mA	40-220VDC	94%	0.95	2103021mm

FMS-80-350 N-S LD2 E spec REV B

Related Products

60W | 200-350mA

FMS-60-350 N-S LD2 E
