Home / Products / Linear Drivers / Non-Isolated / ON/ OFF / FMS-40-350 N-S CCT LD EXC
Product Image
2D Line Drawing
Product Image
2D Line Drawing
40W | 200-350mA

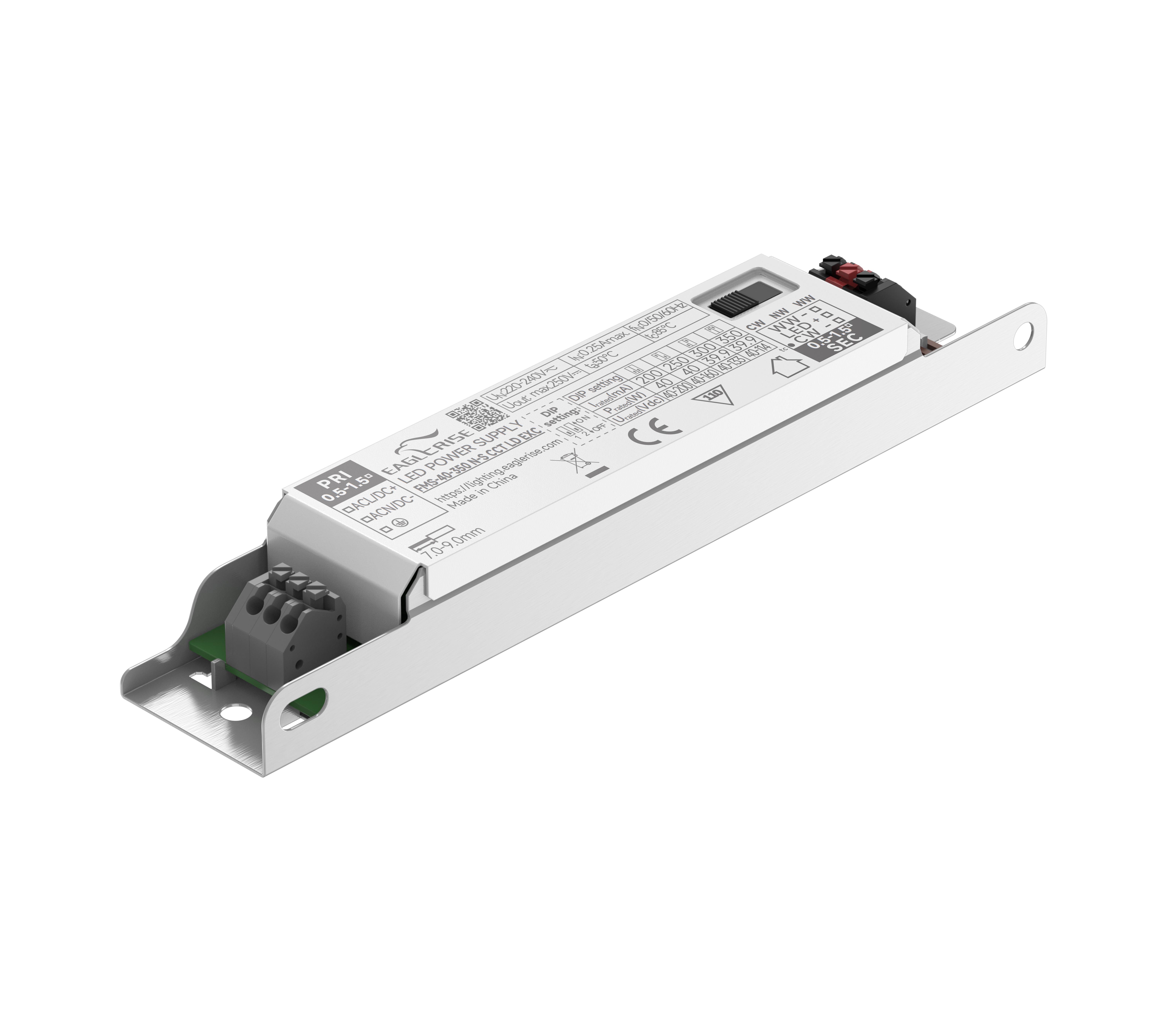

FMS-40-350 N-S CCT LD EXC

Product Description:

· For luminaries of protectionClassI/II ，Non-isolated，Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor：≥0.95(Typ.)

· Efficiency：≥90%(Typ.)

· Adjustable Output Current withdip-switch

· 5 years warranty

· IP20


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FMS-40-350 N-S CCT LD EXC40W220-240VAC200-350mA40-200V90%0.95168*30*21mm



FMS-40-350 N-S CCT LD EXC spec REV A
Download All Files
