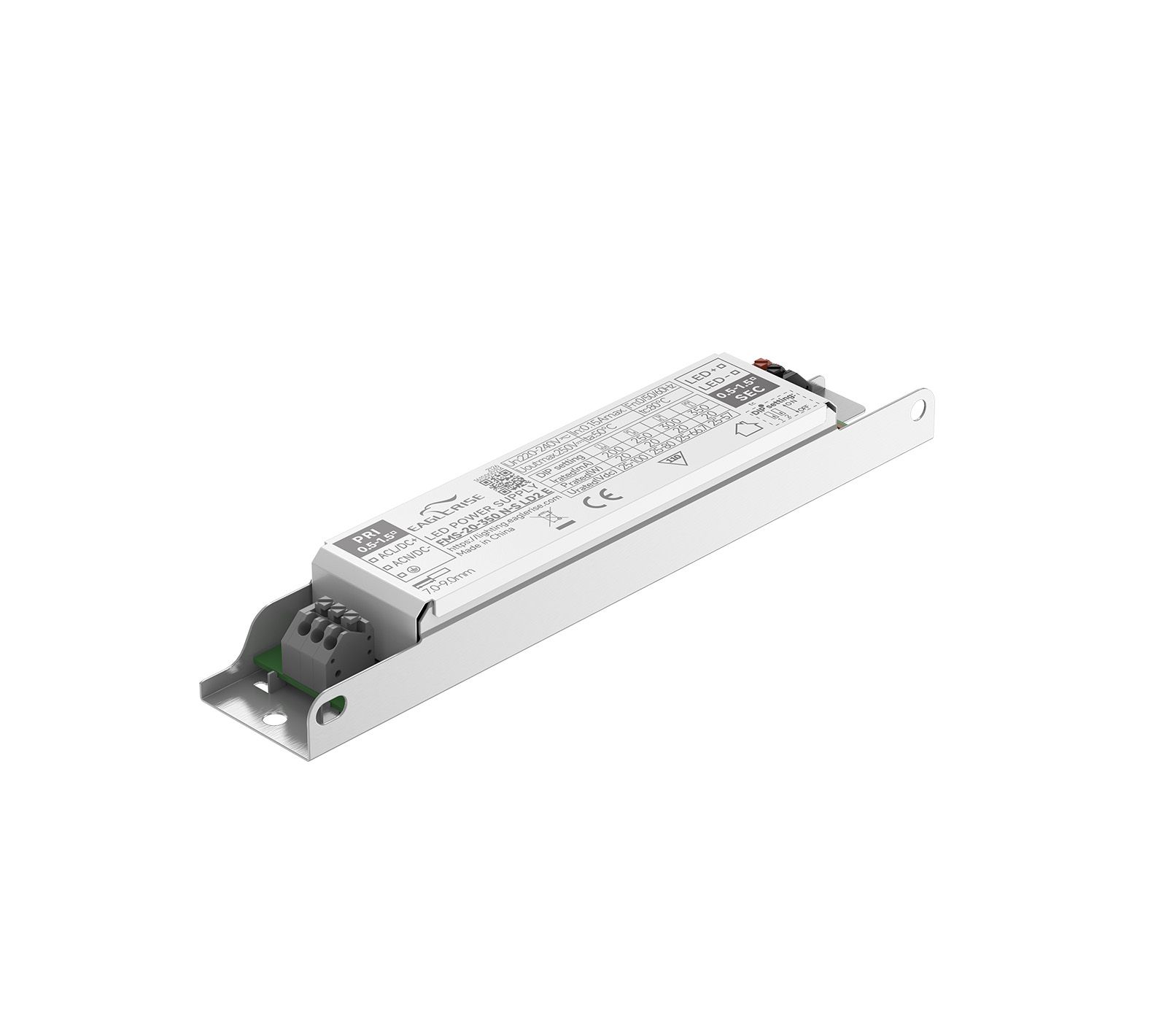

FMS-20-350 N-S LD2 E

Product Description:

· For luminaries of protection Class I ，
· Non-isolated，Built-in
· Input Voltage：220-240VAC
· Protections: SCP/OLP/OVP/OTP
· Power Factor：0.95(Typ.)
· Efficiency：≥86%(Typ.)
· Adjustable Output Current with dip-switch
· 5 years warranty
· IP20

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
FMS-20-350 N-S LD2 E	20W	220-240VAC	200-350mA	25-100VDC	86%	0.95	1683021mm

FMS-20-350 N-S LD2 E spec REV A

Related Products

40W | 200-350mA

FMS-40-350 N-S LD2 E

60W | 200-350mA

FMS-60-350 N-S LD2 E

80W | 200-350mA

FMS-80-350 N-S LD2 E
