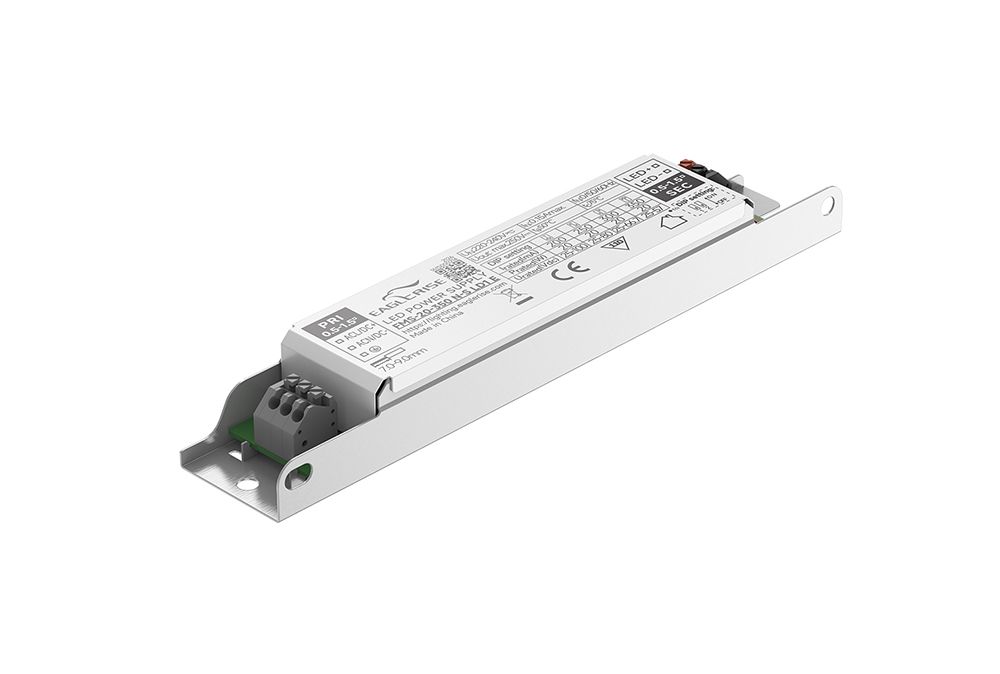

Product Image

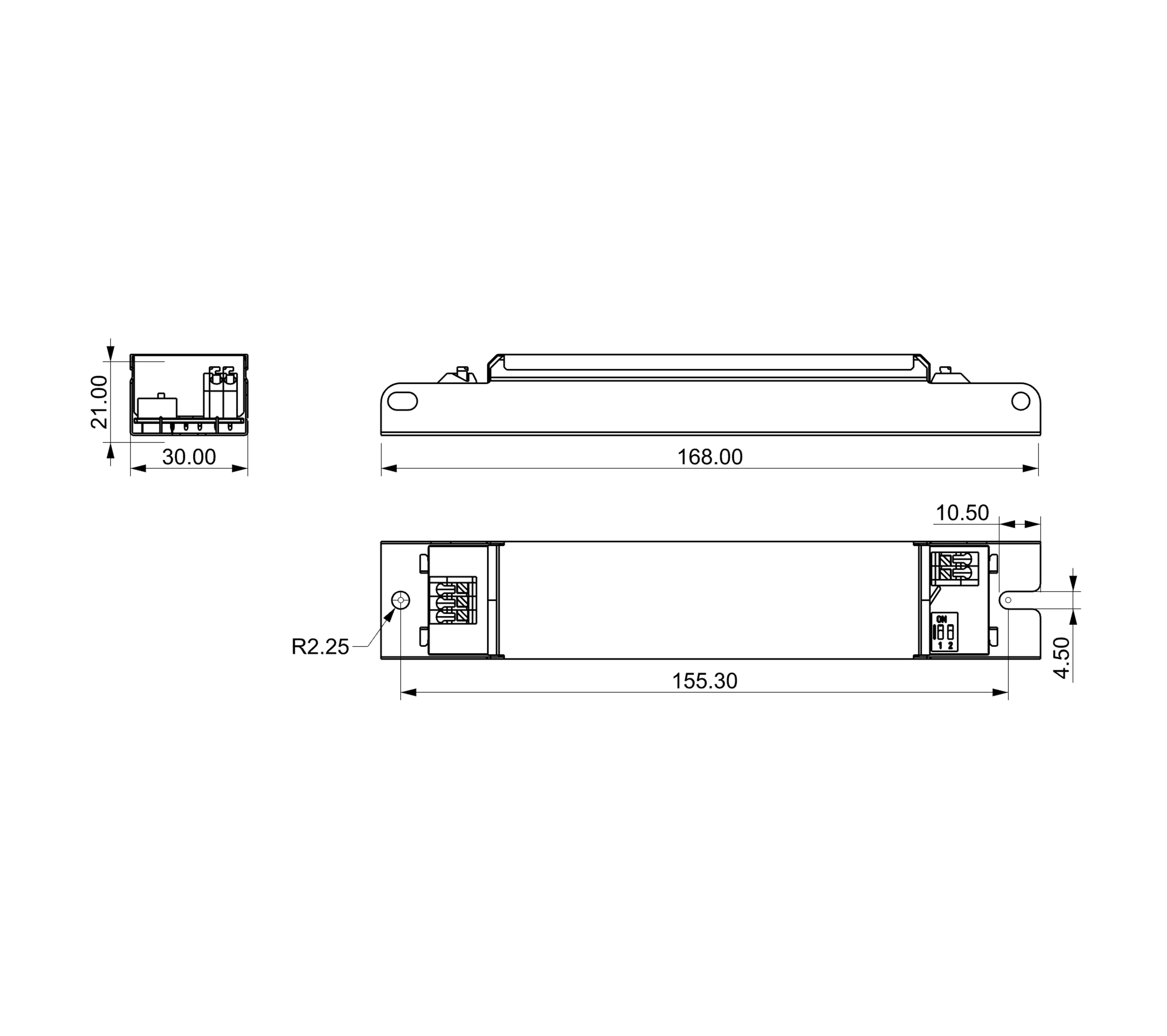

2D Line Drawing

20W | 200-350mA

FMS-20-350 N-S LD1 E

Product Description:

· Class I, Non-isolated, Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor：≥0.9(Typ.)

· Efficiency：≥86%(Typ.)

· Adjustable Output Current withdip-switch

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Description

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
FMS-20-350 N-S LD1 E	20W	220-240VAC	200-350mA	25-100VDC	86%	0.95	1683021mm

FMS-20-350 N-S LD1 E spec REV A

Download All Files

Datasheet

FMS-20-350 N-S LD1 E spec REV A
