20W | 100-350mA

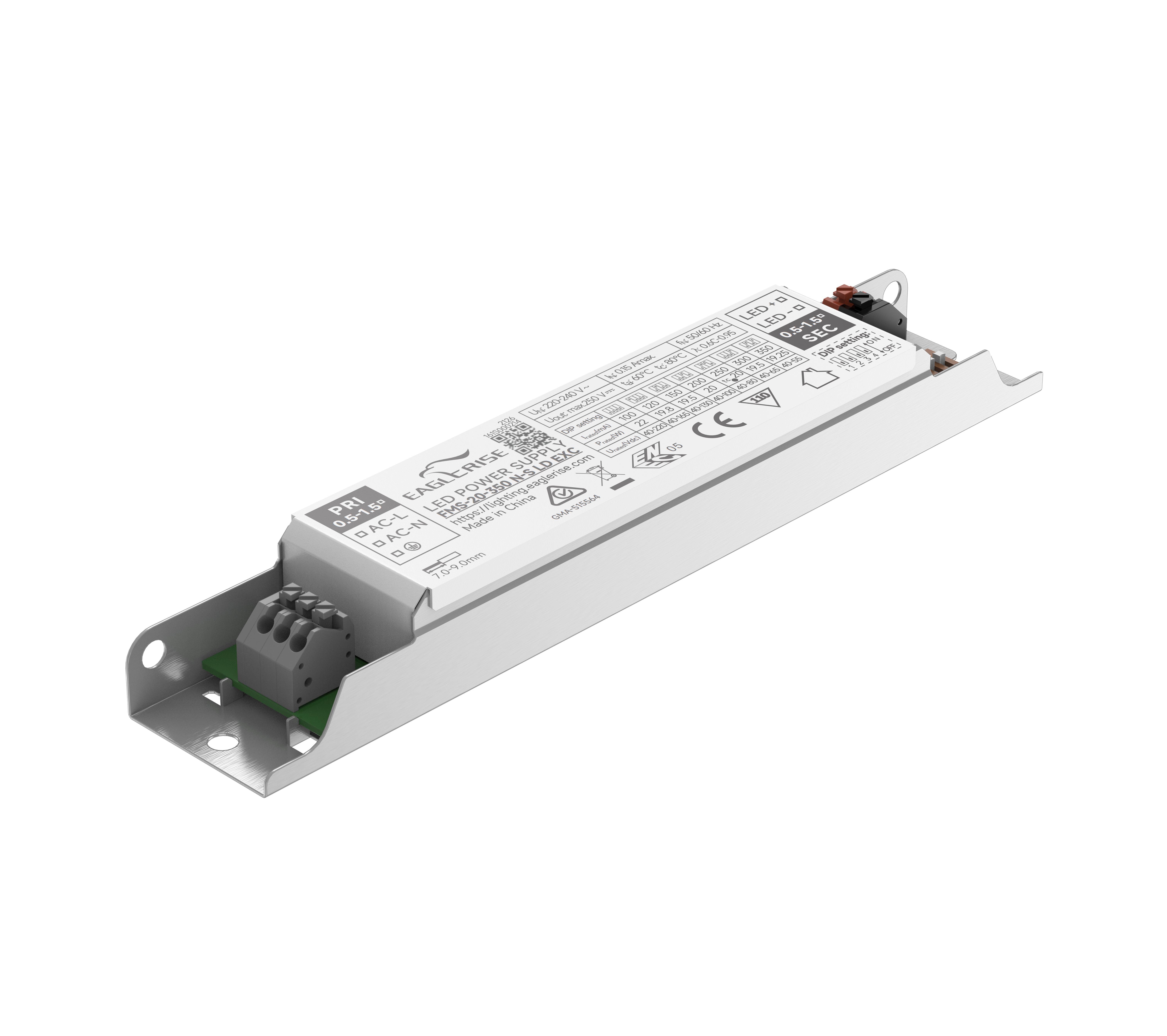

FMS-20-350 N-S LD EXC

Product Description:

· Class I，Non-isolated，Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OVP/OTP

· Power Factor：≥0.9(Typ.)

· Efficiency：87%(Typ.)

· Adjustable Output Current withdip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate

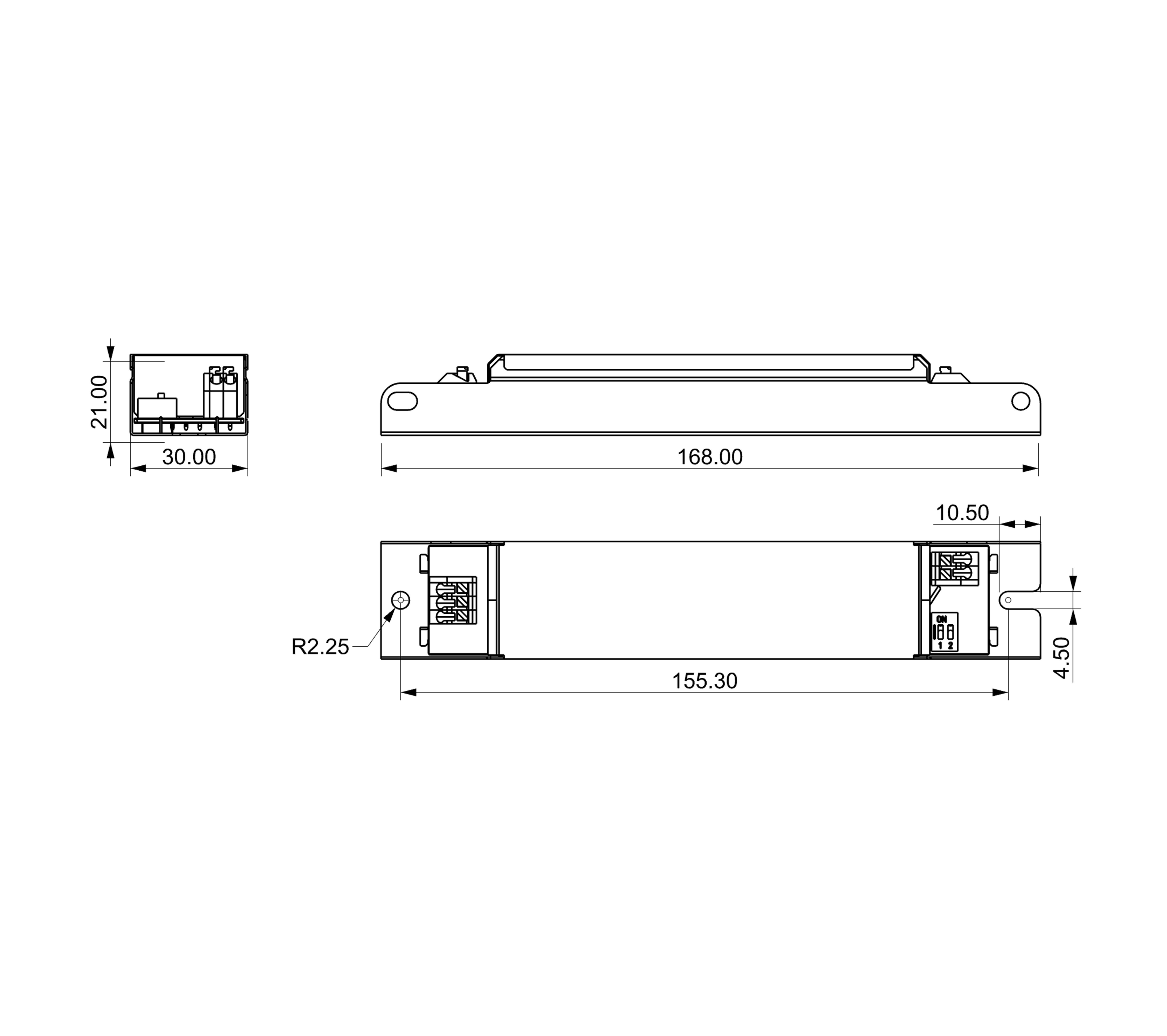

ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FMS-20-350 N-S LD EXC20W220-240VAC100-350mA40-220V87%0.95168*30*21mm



FMS-20-350 N-S LD EXC spec REV B
