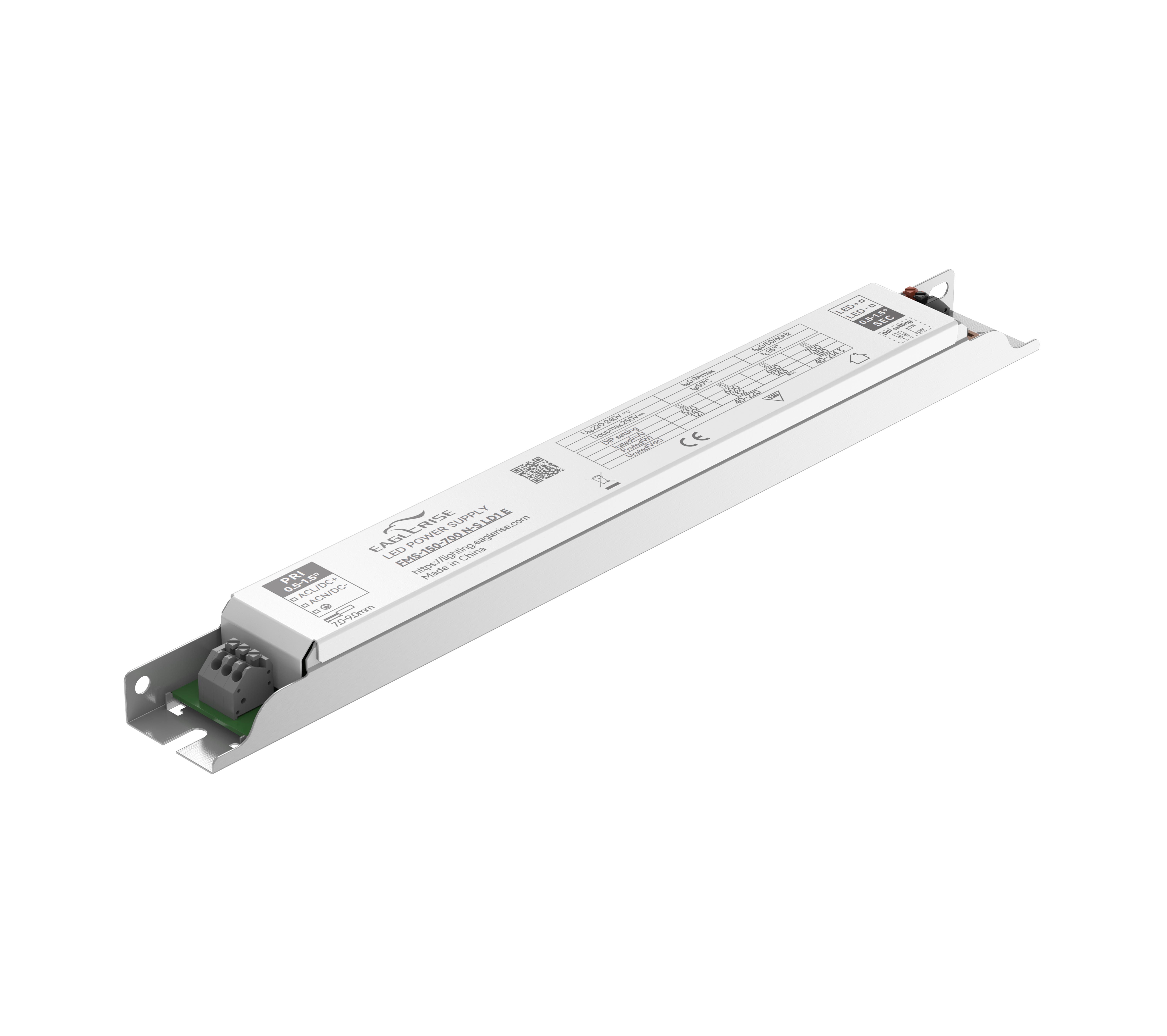

Product Image

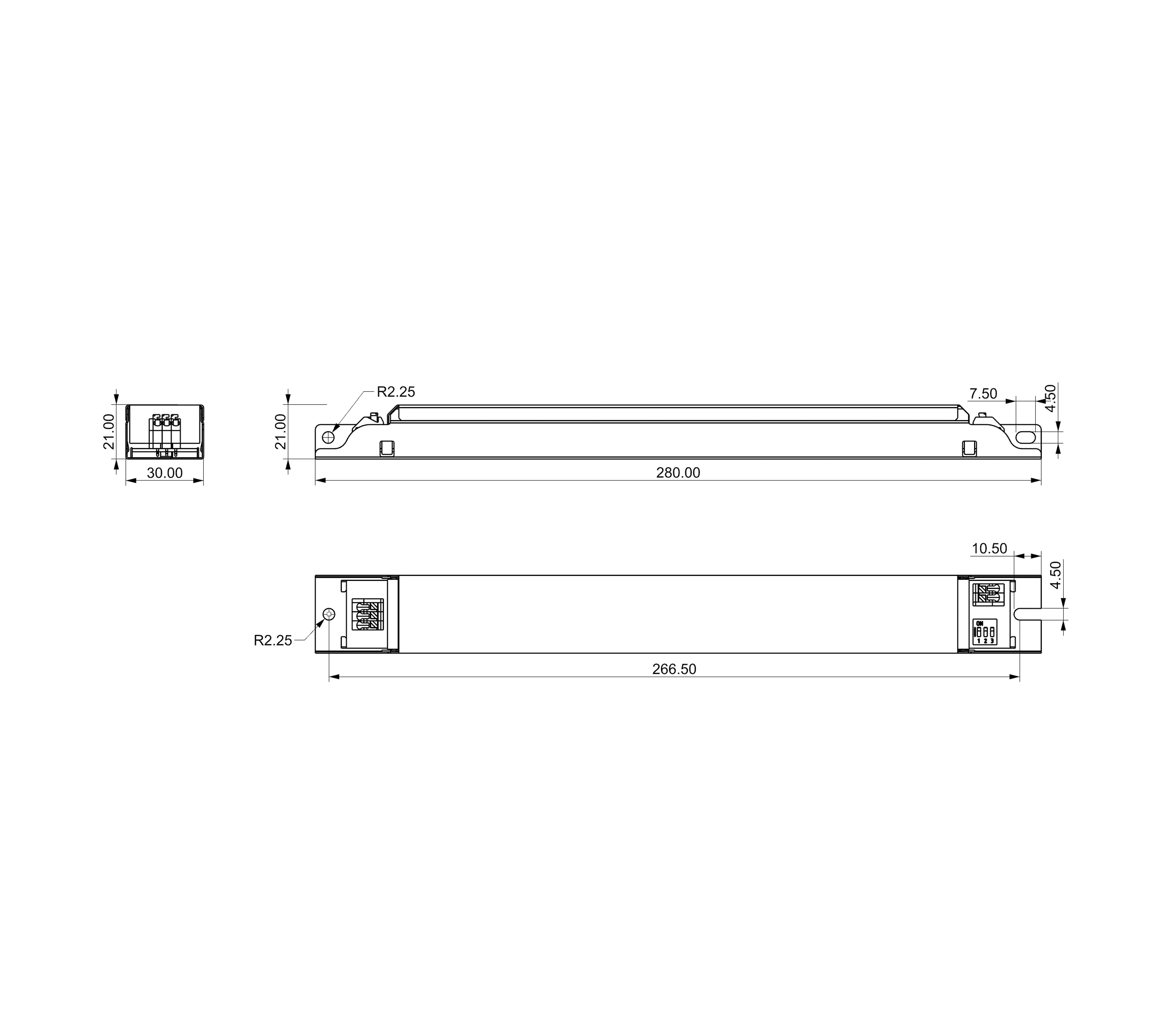

2D Line Drawing
Product Image
2D Line Drawing
150W | 550-700mA

FMS-150-700 N-S LD1 E

Product Description:

· For luminaries of protection Class I/II ,Non-isolated,Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OVP/OLP/OTP

· Power Factor： 0.95(Typ.)

· Efficiency：95%(Typ.)

· Adjustable Output Current with dip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FMS-150-700 N-S LD1 E150W220-240VAC550-700mA40-220V95%0.95280*30*21mm



FMS-150-700 N-S LD1 E spec REV A
Download All Files
