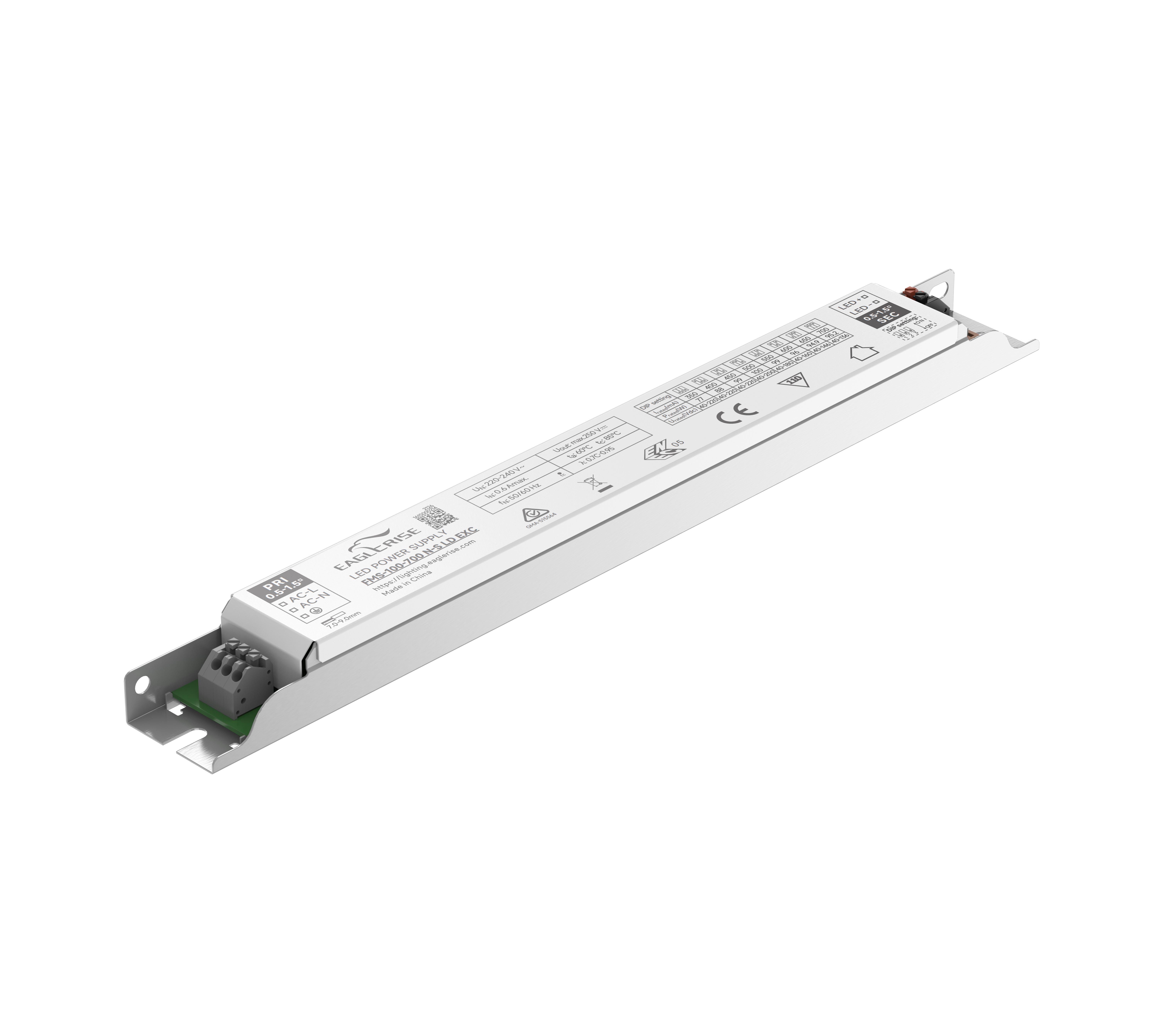

Product Image

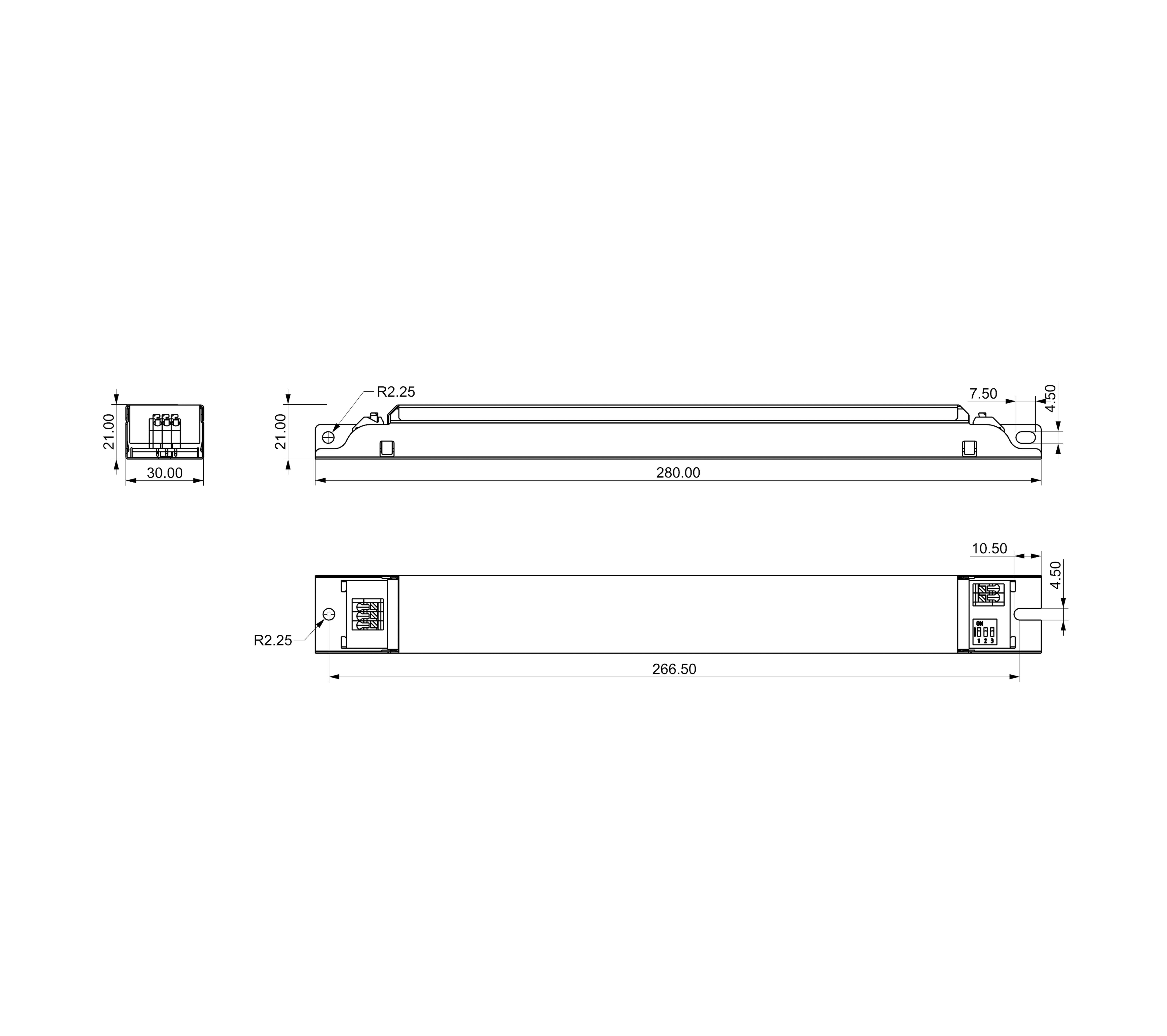

2D Line Drawing
Product Image
2D Line Drawing
100W | 350-700mA

FMS-100-700 N-S LD EXC

Product Description:

· Class I，Non-isolated，Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OVP/OTP

· Power Factor：0.95(Typ.)

· Efficiency：90%(Typ.)

· Adjustable Output Current withdip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FMS-100-700 N-S LD EXC100W220-240VAC350-700mA40-220V90%0.95280*30*21mm



FMS-100-700 N-S LD EXC spec REV C
Download All Files
