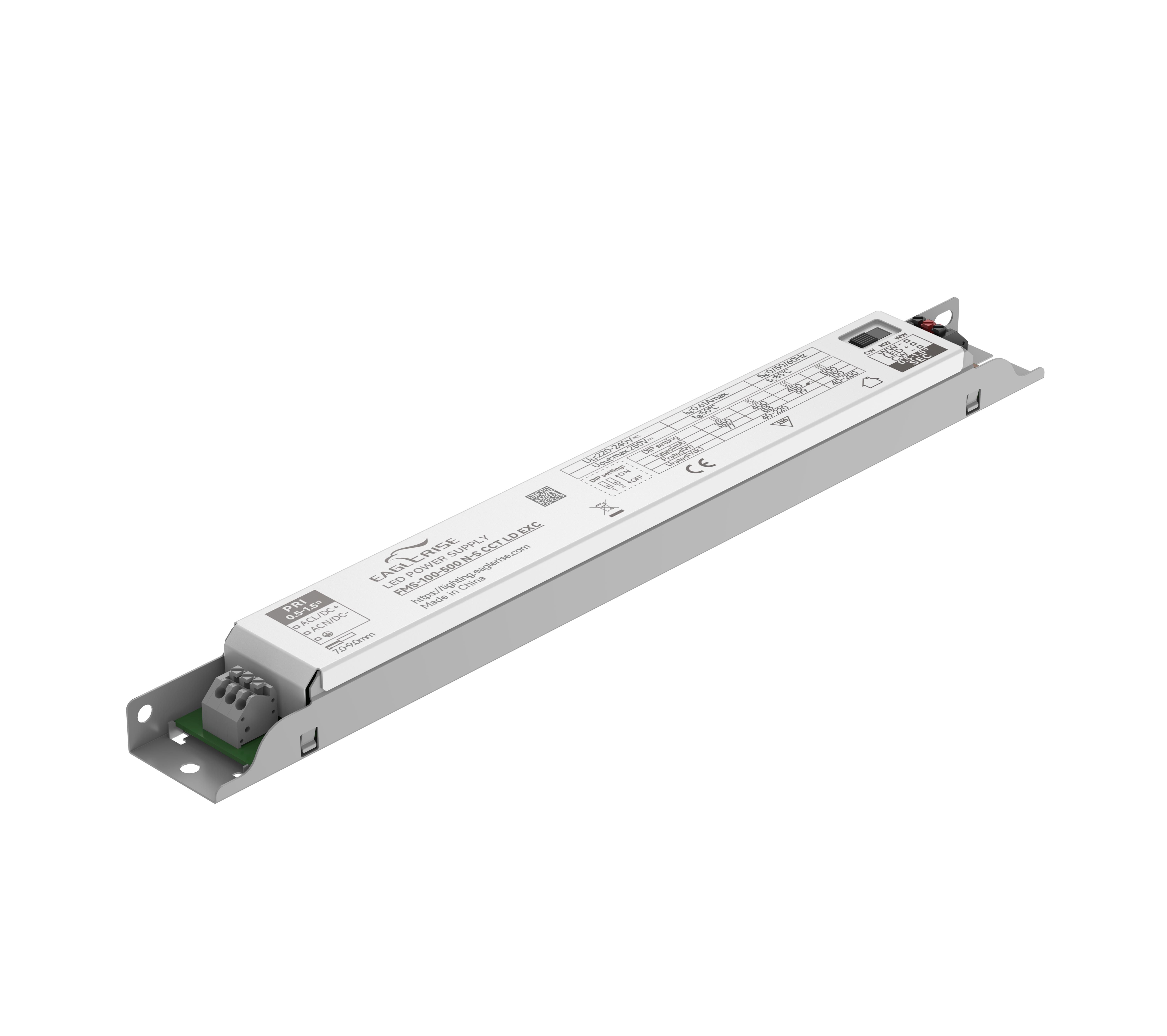

Product Image
2D Line Drawing
Product Image
2D Line Drawing
100W | 350-500mA

FMS-100-500 N-S CCT LD EXC

Product Description:

· For luminaries of protectionClassI/II ，Non-isolated，Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor：≥0.95(Typ.)

· Efficiency：≥95%(Typ.)

· Adjustable Output Current withdip-switch

· 5 years warranty

· IP20


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FMS-100-500 N-S CCT LD EXC100W220-240VAC350-500mA40-220V95%0.95280*30*21mm



FMS-100-500 N-S CCT LD EXC spec REV A
Download All Files
