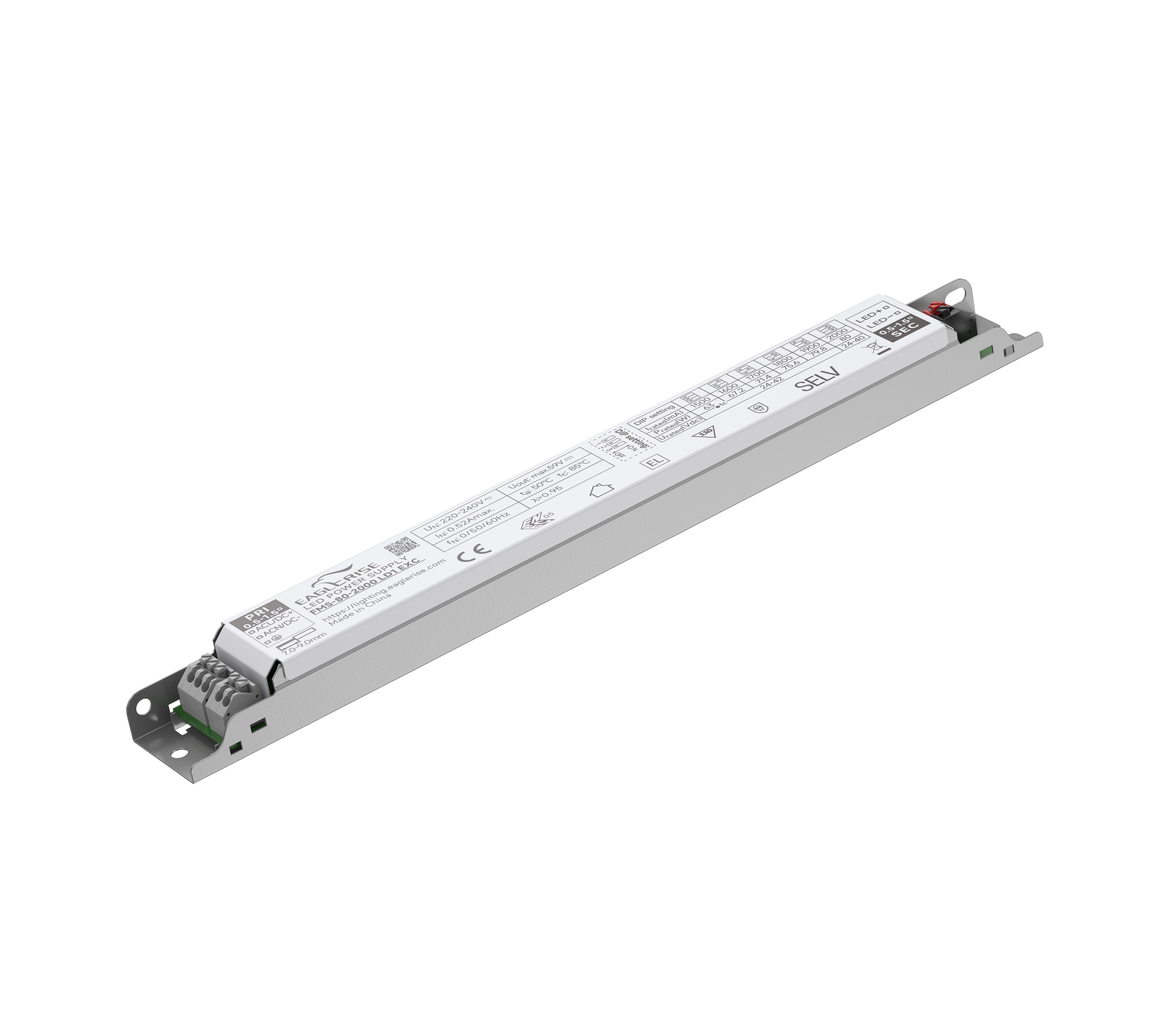

Product Image

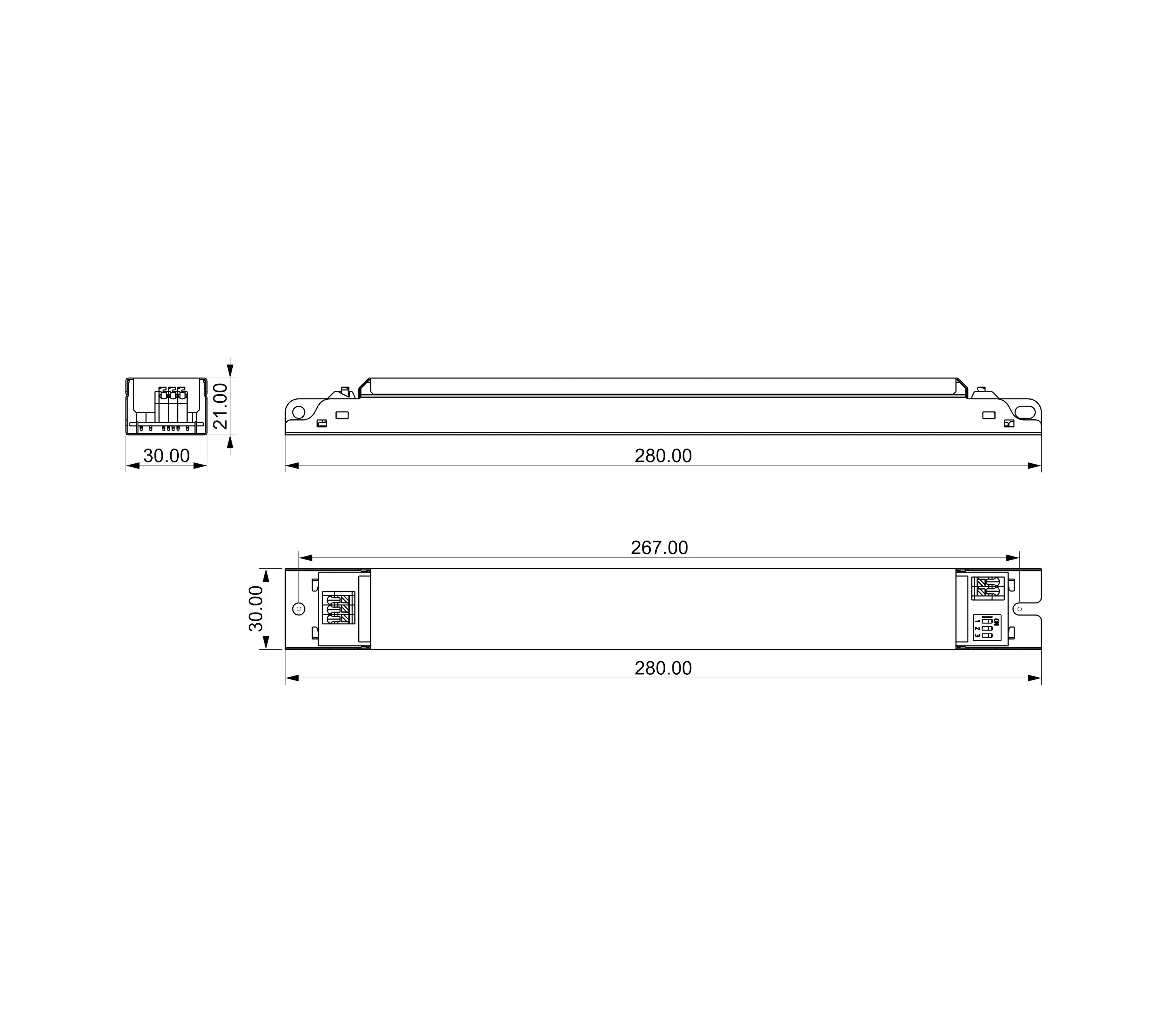

2D Line Drawing
Product Image
2D Line Drawing
80W | 1500-2000mA

FMS-80-2000 LD1 EXC

Product Description:

  •  For luminaries of protectionClassI orII，SELV，built-in

  • Input Voltage ：220-240VAC

  • Protections: SCP/OLP/OVP/OTP

  •  Power Factor ：＞0.95

  •  Efficiency ：≥91%

  • 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FMS-80-2000 LD1 EXC80W220-240VAC1500-2000mA24-42V91%0.95280*30*21mm



FMS-80-2000 LD1 EXC spec REV A
Download All Files
