Home / Products / Linear Drivers / Isolated / ON/ OFF / FMS-60-1200 LD EXC

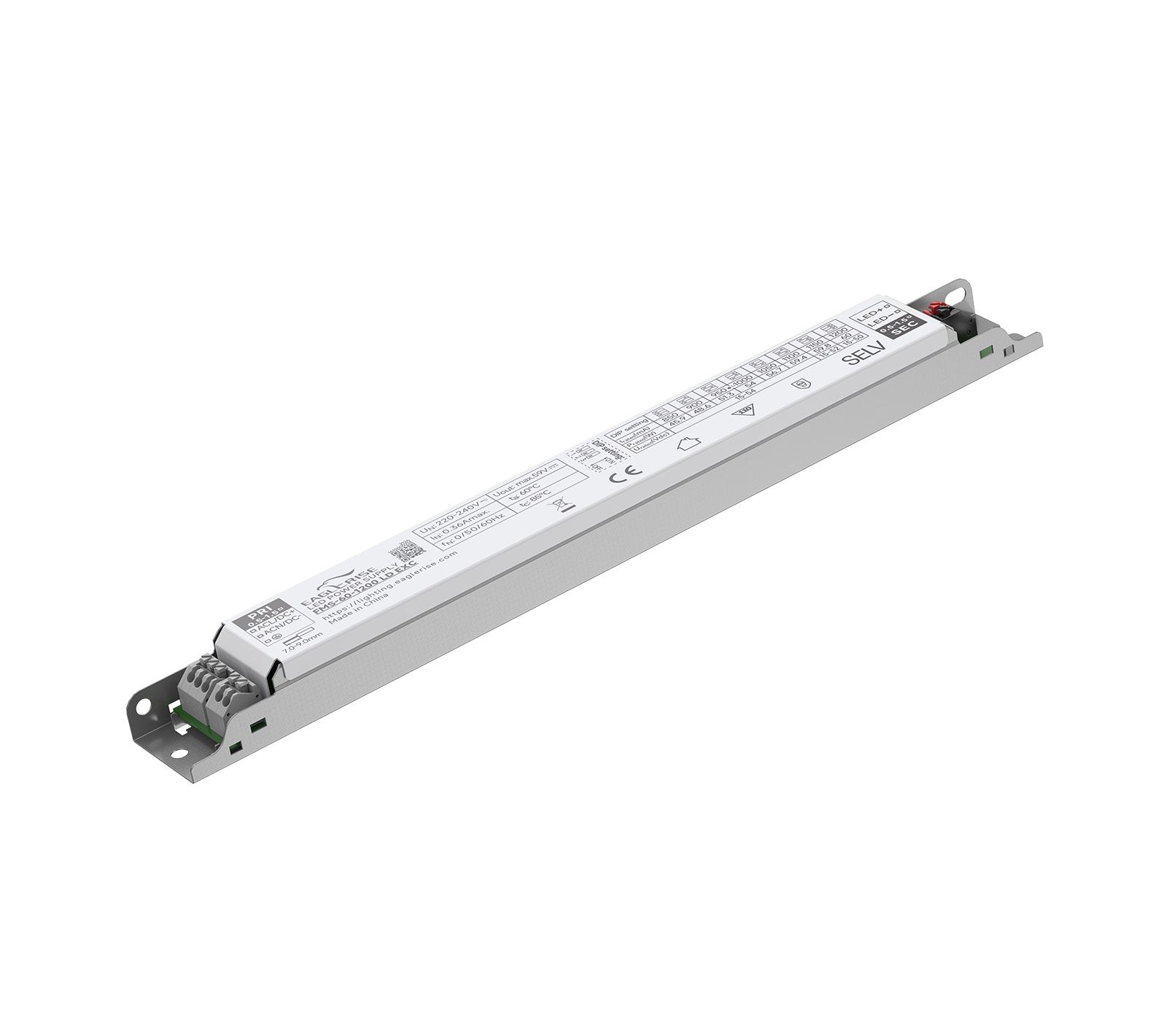

Product Image

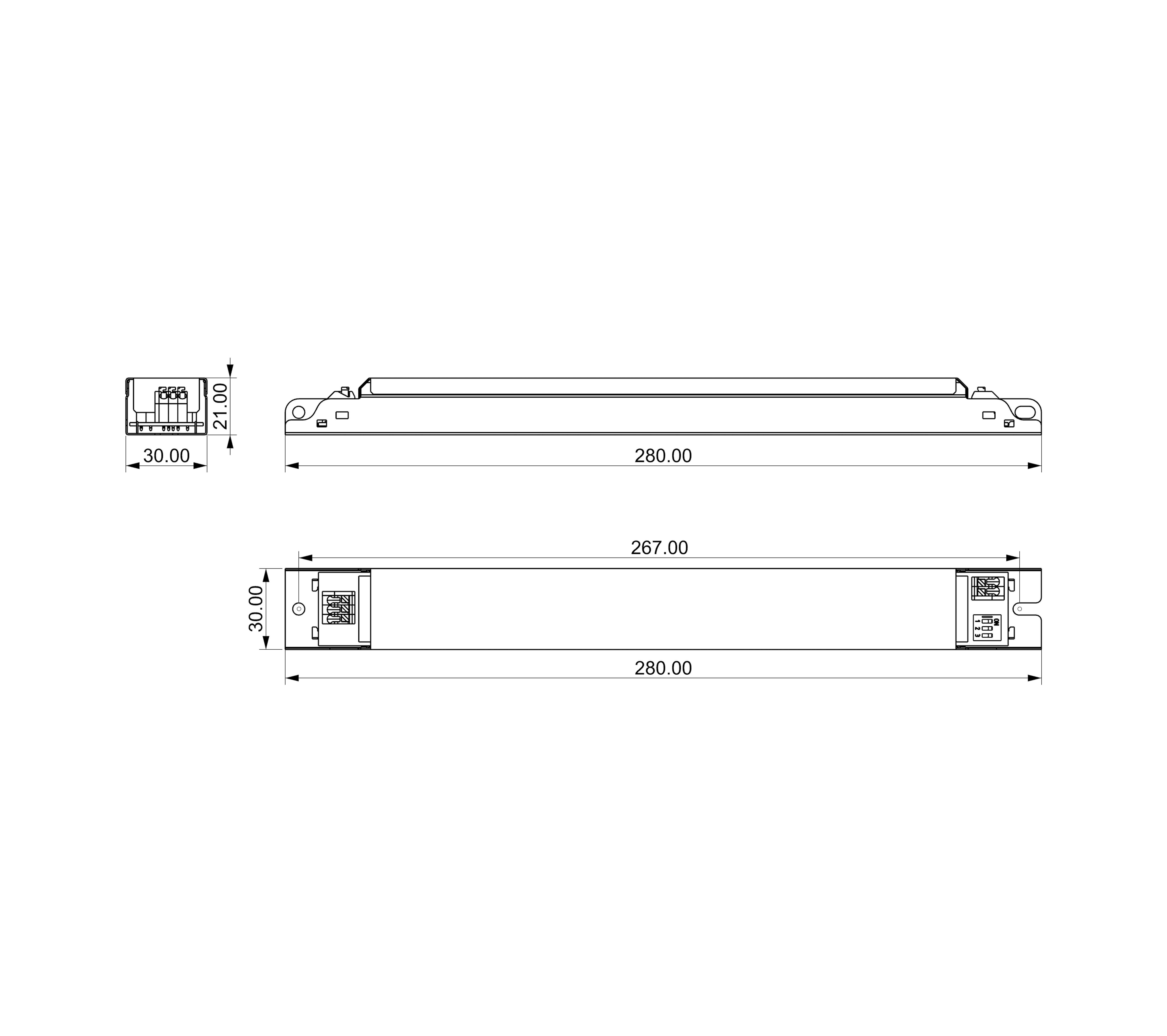

2D Line Drawing
Product Image
2D Line Drawing
60W | 850-1200mA

FMS-60-1200 LD EXC

Product Description:

  • For luminaries of protection Class I or II，SELV，built-in

  • Input Voltage ：220-240VAC

  • Protections: SCP/OLP/OVP/OTP

  • Power Factor ：＞0.95

  • Efficiency ：≥91%

  • 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FMS-60-1200 LD EXC60W220-240VAC850-1200mA15-51V91%0.95280*30*21mm



FMS-60-1200 LD EXC spec REV B
Download All Files
