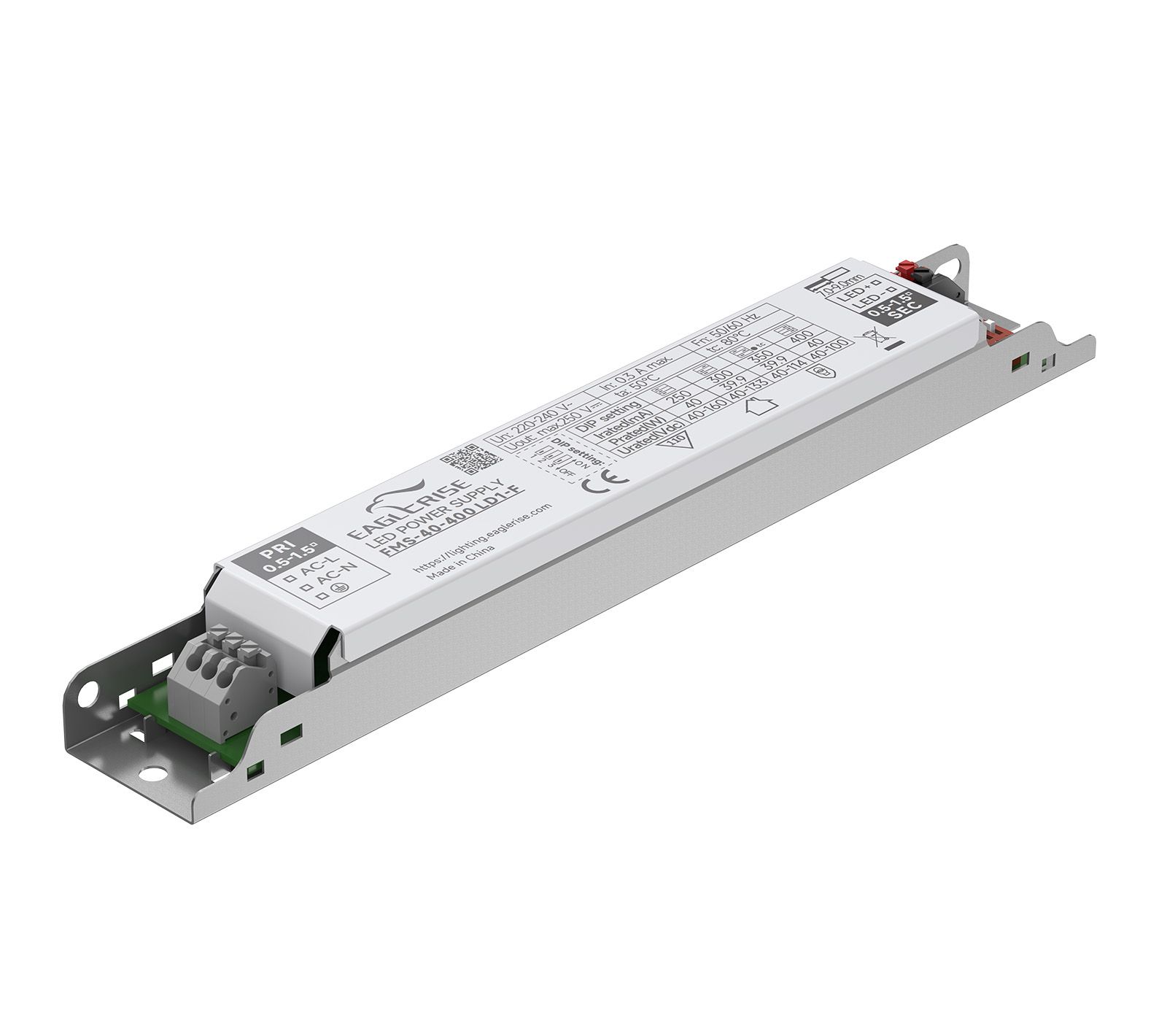

Product Image

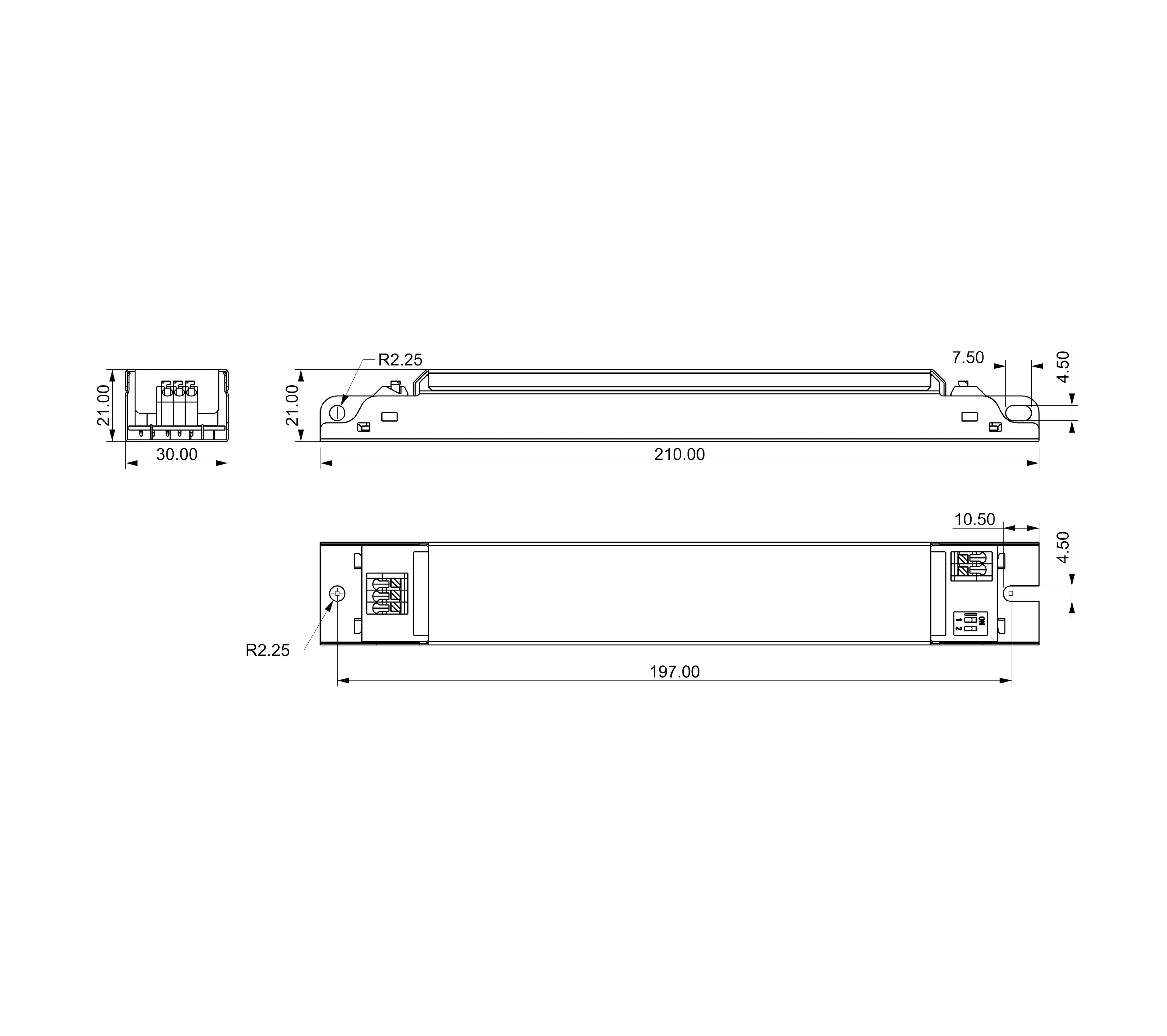

2D Line Drawing
Product Image
2D Line Drawing
40W | 250-400mA

FMS-40-400 LD1-F

Product Description:

· For luminaries of protection Class I , Built-in

· Input Voltage :220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor:>0.95@full load

· Efficiency:90%@250~300mA,230VAC; 89%@350~400mA,230VAC

· Adjustable Output Current with dip-switch

· 5 years warranty

Click to Expand
Models
Datasheet
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FMS-40-400 LD1-F40W220-240VAC250-400mA40-160V90%0.95210*30*21mm
