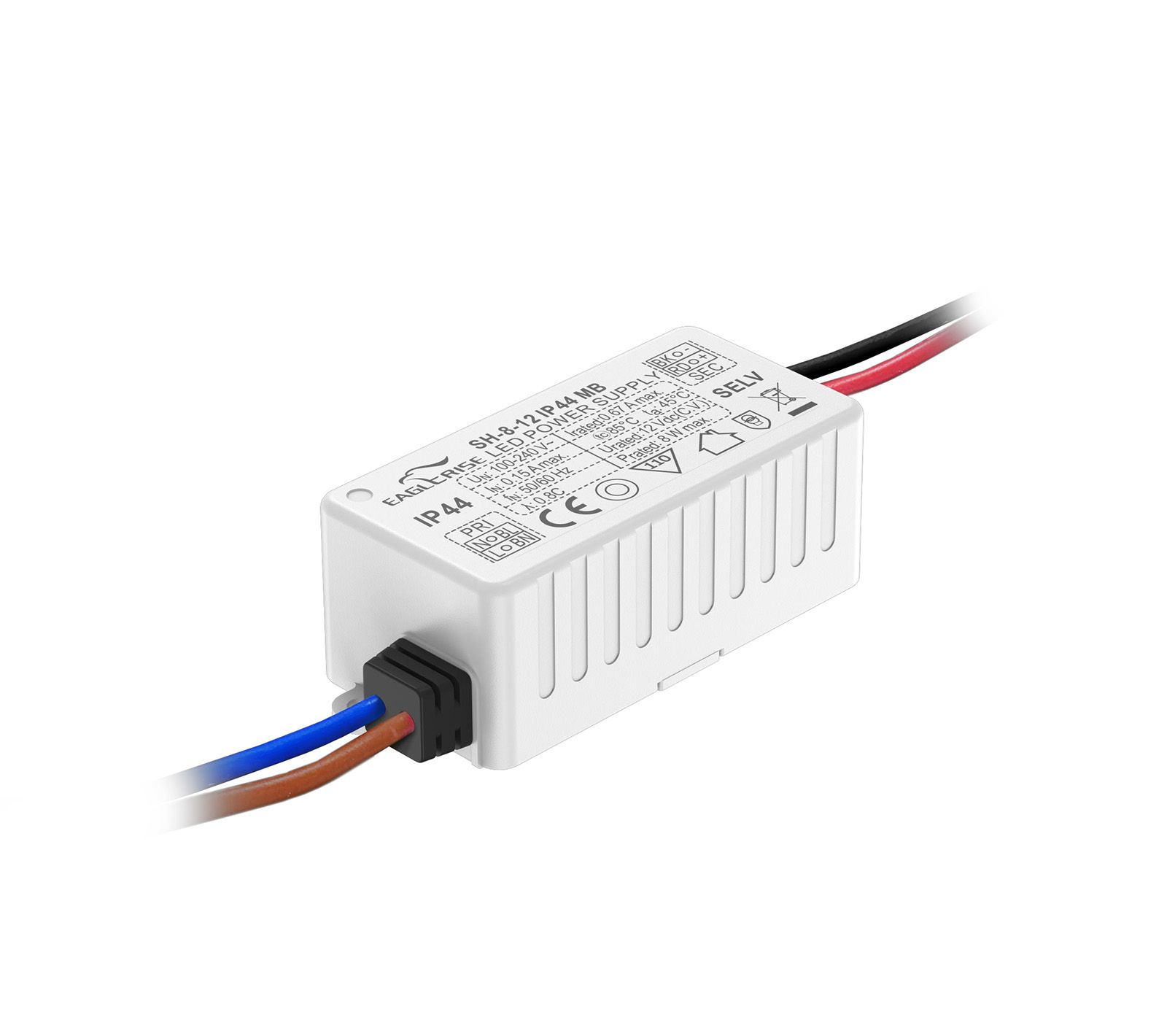

Product Image

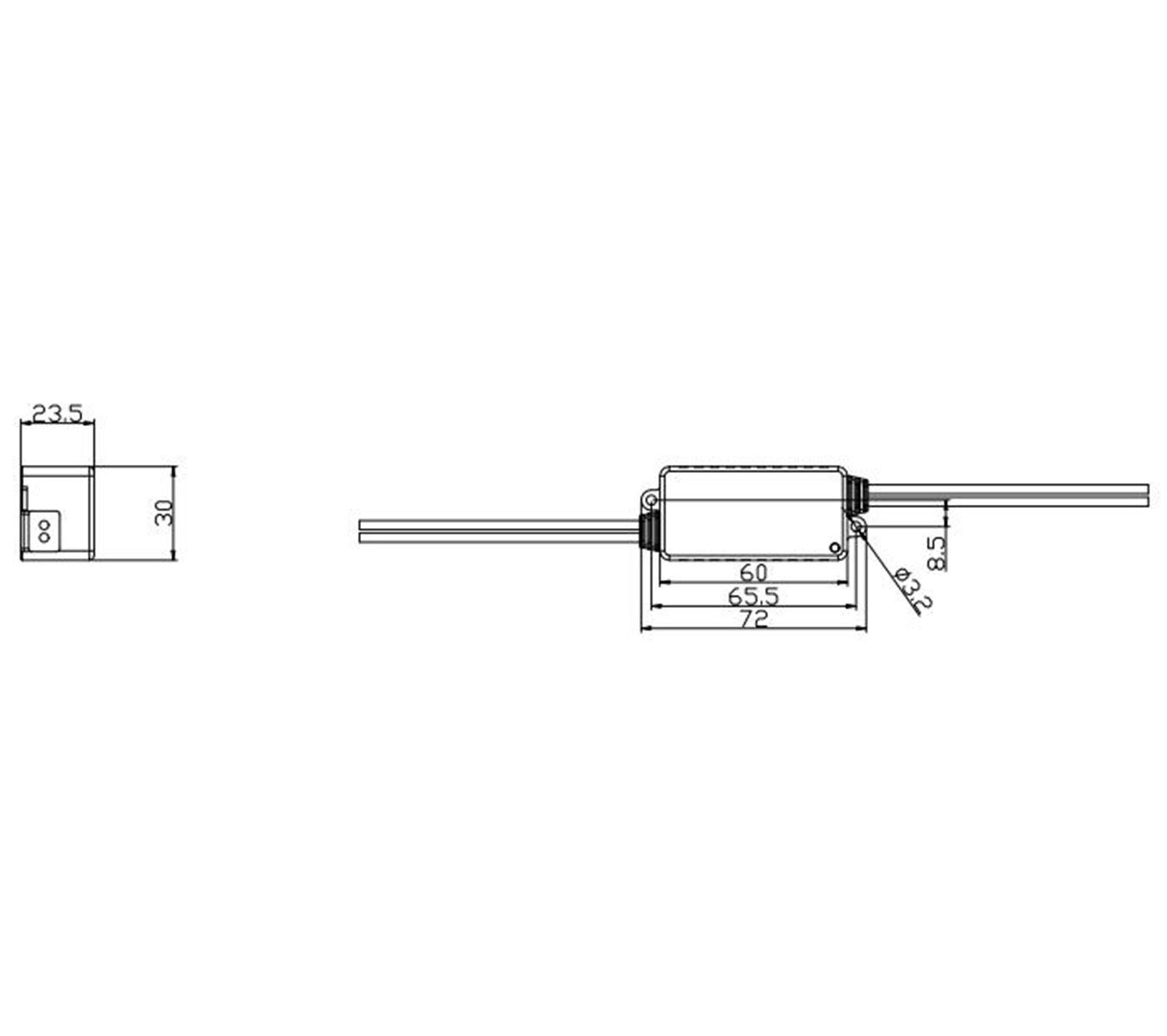

2D Line Drawing
Product Image
2D Line Drawing
8W | 12/24V

SH-8-XX IP44 MB

Product Description:

 · Class II，SELV，built-in

· IP44 Ingress protection

· Input Voltage 100-240VAC

· Protections: SCP/OLP/OTP

· Power Factor 0.8C

· Efficiency ≥75%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
SH-8-12 IP44 MB8W220-240VAC0-0.67A12V75%0.9572*30*23.5mm
SH-8-24 IP44 MB8W220-240VAC0-0.34A24V75%0.9572*30*23.5mm


SH-8-XX IP44 MB spec REV A
