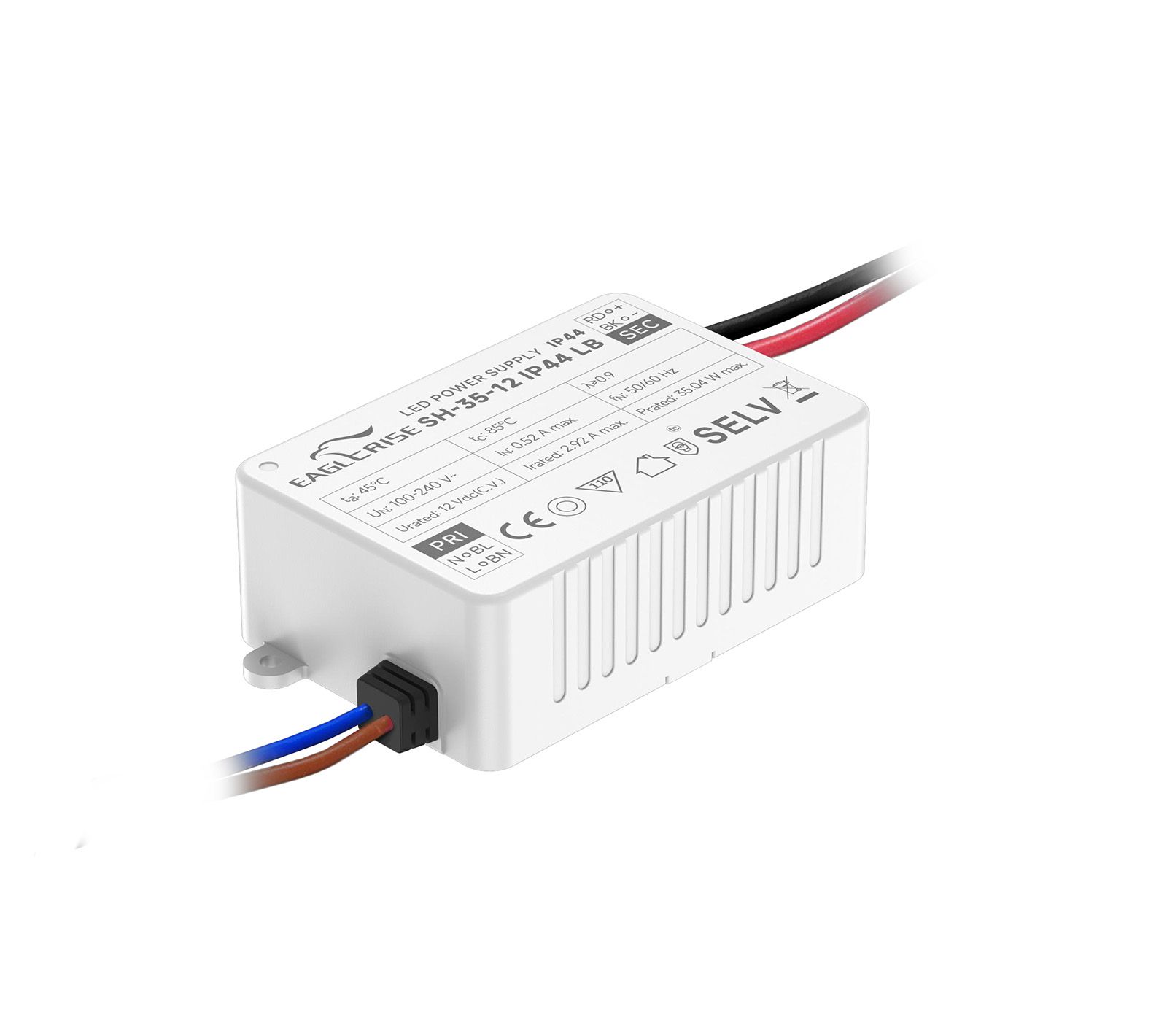

Product Image

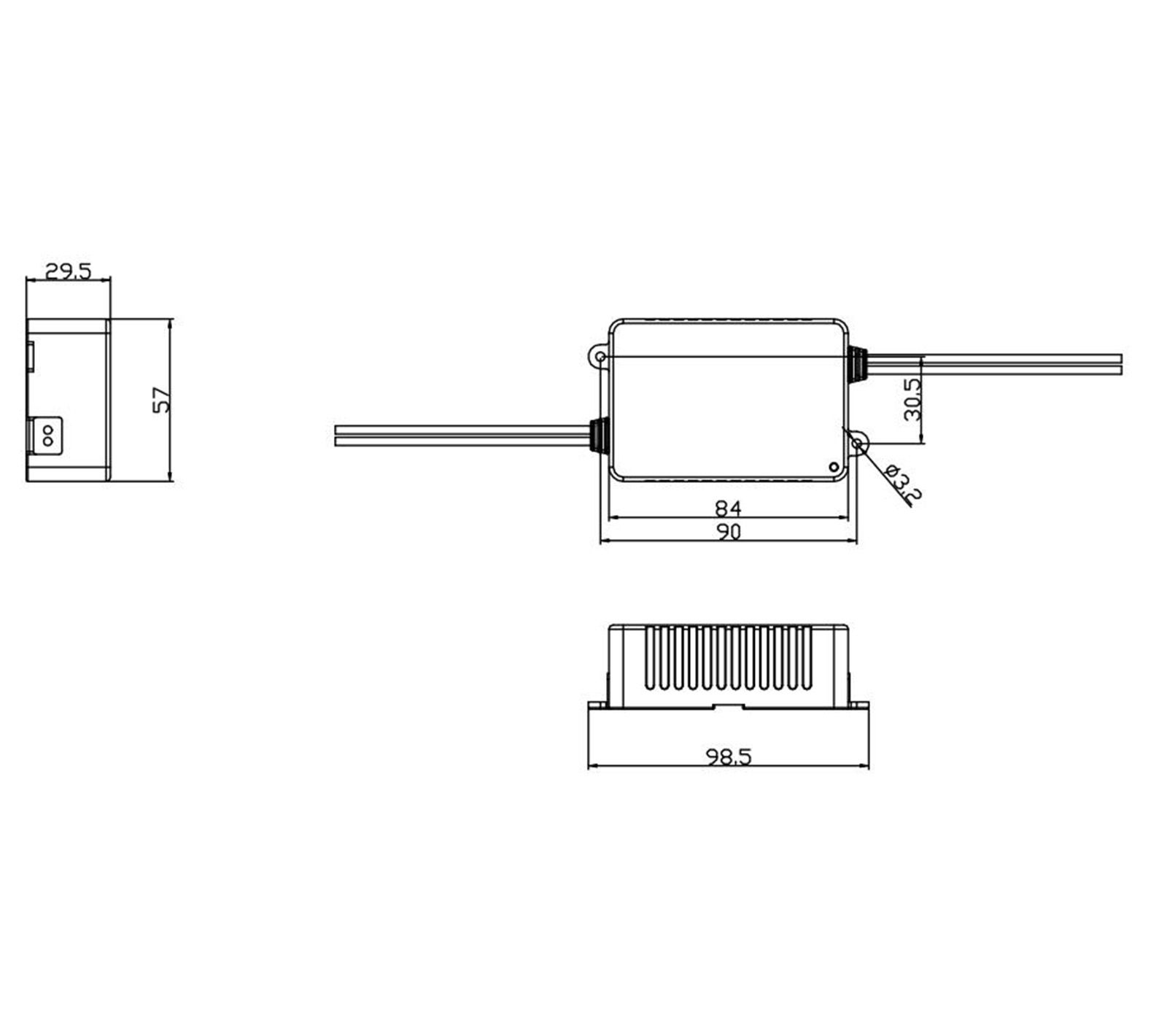

2D Line Drawing
Product Image
2D Line Drawing
35W | 12/24V

SH-35-XX IP44 LB

Product Description:

· Class II,SELV,built-in

· IP44 Ingress protection

· Input Voltage 100-240VAC

· Protections: SCP/OLP/OTP

· Power Factor ≥0.9

· Efficiency ≥82%@ 24VDC/≥80%,@12VDC

· 5 years warranty

Click to Expand
Models
Datasheet
Description
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
SH-35-12 IP44 LB35W220-240VAC0-2.91A12V80%0.9598.5*57*29.5mm
SH-35-24 IP44 LB35W220-240VAC0-1.46A24V82%0.9598.5*57*29.5mm


Related Products
16W | 12/24V
SH-16-XX IP44 MB
8W | 12/24V
SH-8-XX IP44 MB
