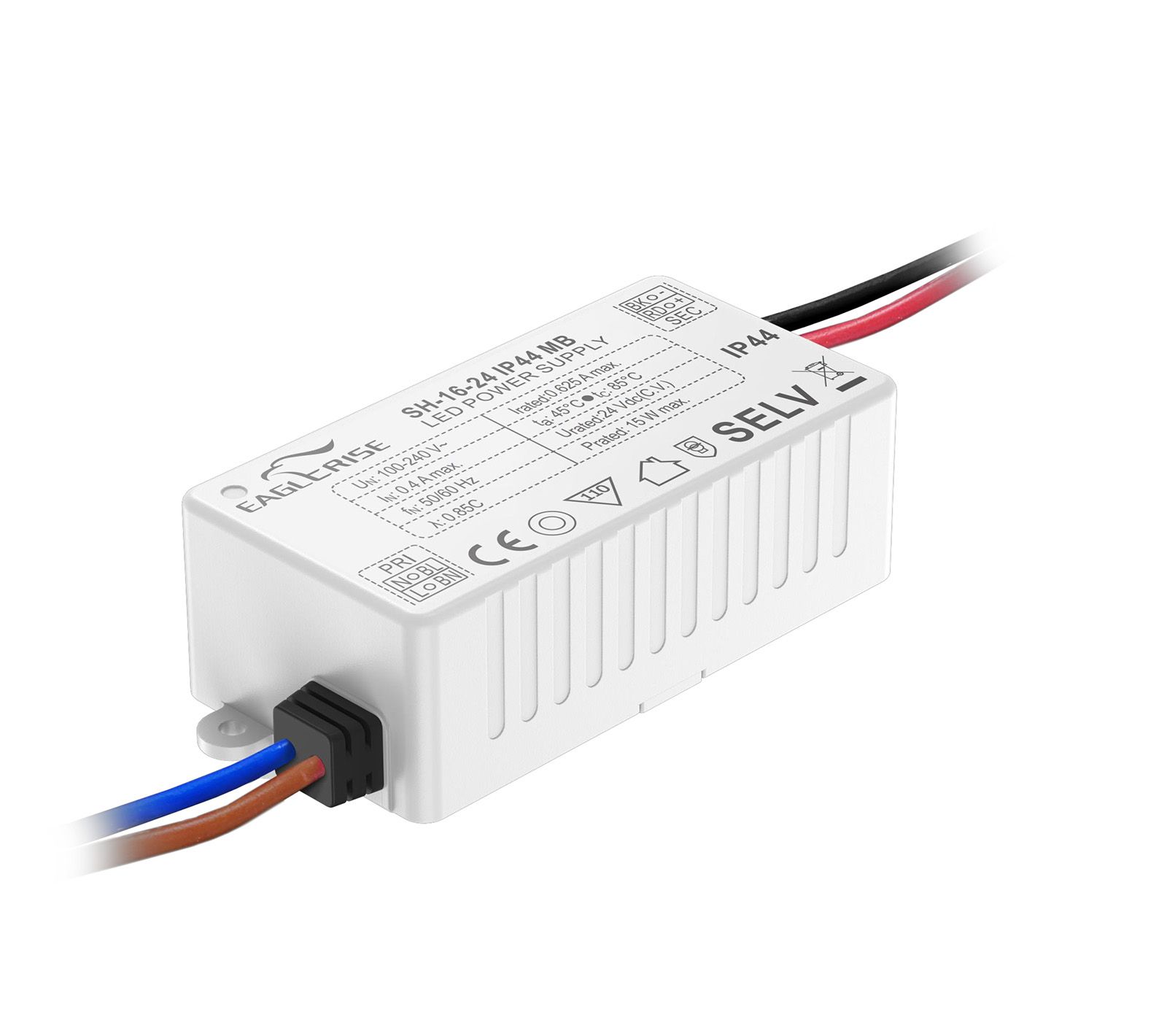

Product Image

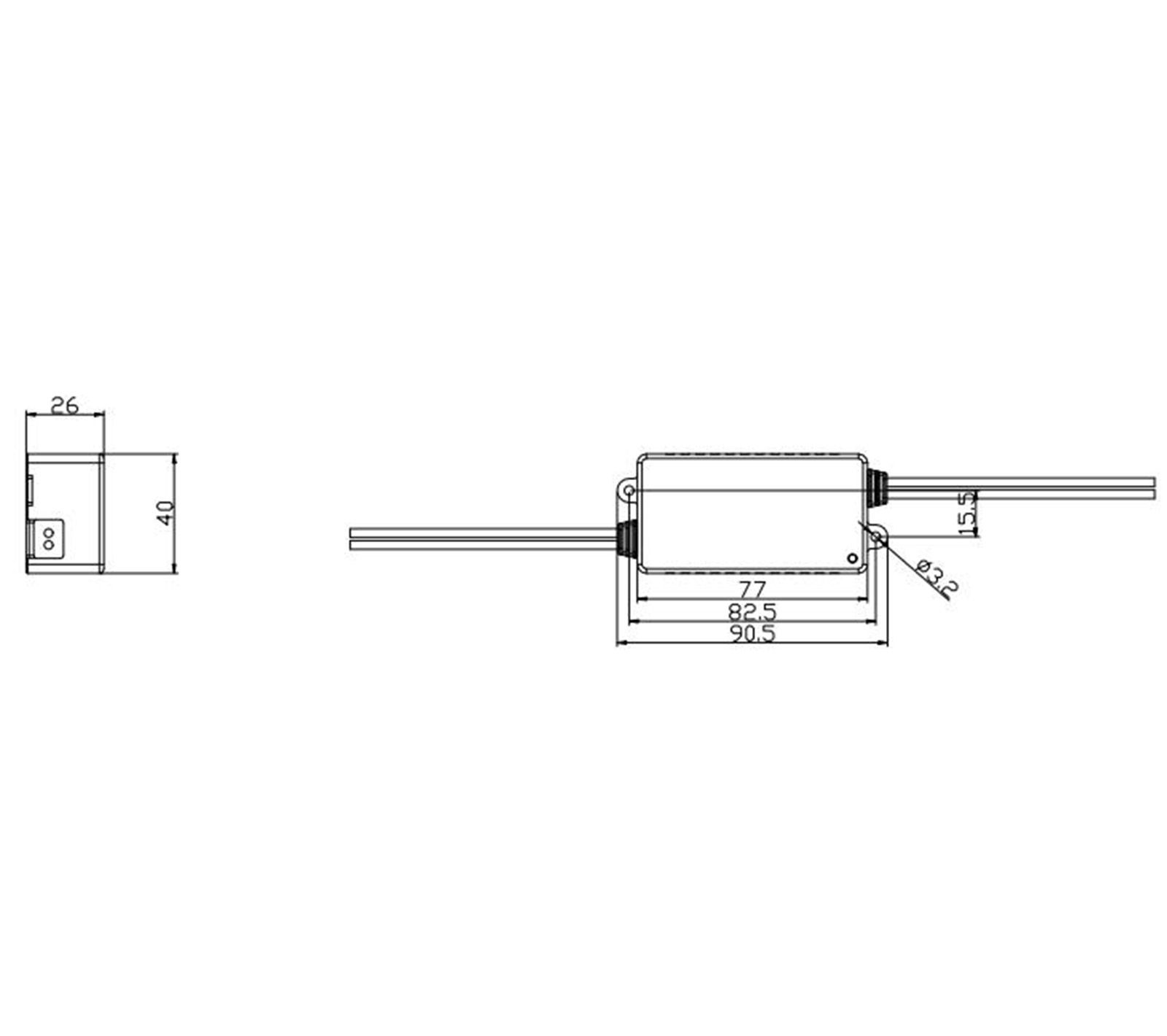

2D Line Drawing
Product Image
2D Line Drawing
16W | 12/24V

SH-16-XX IP44 MB

Product Description:

· Class II，SELV，built-in

· Input Voltage 100-240VAC

· Protections: SCP/OLP/OTP

· Power Factor 0.85C

· Efficiency ≥83%@ 24VDC/≥76%,@12VDC

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
SH-16-12 IP44 MB16W220-240VAC0-1.25A12V75%0.9572*30*23.5mm
SH-16-24 IP44 MB16W220-240VAC0-0.625A24V75%0.9572*30*23.5mm


SH-16-XX IP44 MB spec REV A
